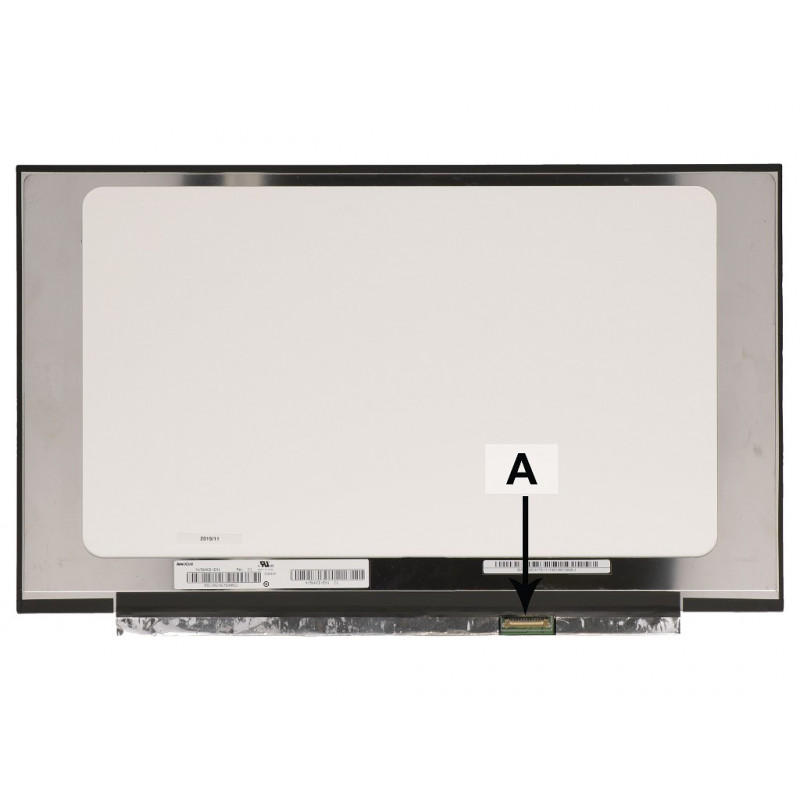

2-power 2P-N156HGA-EA3 C3 - 39,6 cm (15,6") Panel LED HD

The 2-POWER 2P-N156HGA-EA3 C3 stands out as a direct replacement panel for laptops that need a 15.6-inch HD display without the cost or complexity of upgrading to Full HD. Its 30-pin eDP connector and standard mounting brackets make it a drop-in solution for many popular notebooks, while the glossy finish delivers vivid colors and sharp text for everyday tasks.

Highlights

• 15.6-inch (39.6 cm) TFT-LCD panel with LED backlight
• 1366 x 768 (WXGA HD) resolution, 16:9 aspect ratio
• 30-pin eDP connector for universal compatibility
• Glossy surface for enhanced color saturation
• 220 cd/m² brightness and 500:1 contrast ratio
• Fast 8 ms response time reduces motion blur
• Wide viewing angles: 45/45/20/45 degrees
• New condition, ready for installation

In daily use

This panel is ideal for users who need a reliable screen for office work, web browsing, or media playback. The LED backlight ensures low power consumption and consistent brightness over time. The 30-pin eDP interface is common across many laptop brands, making this panel a versatile choice for repairs and upgrades. The glossy coating improves perceived contrast and color depth, though it may reflect ambient light in bright environments.

Full specifications

• Screen Size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA HD)
• Panel Type: TFT-LCD, Active Matrix
• Backlight Type: LED
• Surface Finish: Glossy
• Aspect Ratio: 16:9
• Refresh Rate: 60 Hz
• Data Connector: 30-pin eDP
• Brightness: 220 cd/m² (nits)
• Contrast Ratio: 500:1 (Typical)
• Viewing Angle: 45/45/20/45 (L/R/U/D)
• Response Time: 8 ms (Typical)
• Color Gamut: 45% NTSC (Typical)
• Pixel Density: 100 PPI
• Mounting Type: Side Brackets (Common)
• Condition: New

Final note

The 2-POWER 2P-N156HGA-EA3 C3 is a cost-effective way to restore a laptop's display to original quality. Its compatibility with standard 15.6-inch HD laptops and straightforward installation make it a practical choice for both technicians and DIY users.
