2-power 2P-NV156FHM-N42 V8 - 39,6 cm (15,6") - Full HD

A cracked or dim laptop display can make your device nearly unusable, but replacing it with the right panel restores clarity and color. The 2-Power 2P-NV156FHM-N42 V8 is a 15.6-inch Full HD IPS screen engineered as a direct replacement for laptops using the BOE NV156FHM-N42 panel. With a 1920x1080 resolution, LED backlight, and matte anti-glare finish, it delivers sharp visuals and comfortable viewing in various lighting conditions.

Who is it for

This screen is ideal for technicians, IT professionals, and DIY users who need to repair a laptop with a damaged or faulty 15.6-inch Full HD display. It is also suitable for anyone looking to upgrade from a lower-resolution panel to enjoy better image quality and wider viewing angles.

Main features

• 15.6-inch IPS panel with Full HD 1920x1080 resolution for crisp, detailed images.
• LED backlight provides consistent brightness up to 250 cd/m² and energy efficiency.
• Matte anti-glare surface reduces reflections and eye strain, making it suitable for bright environments.
• Wide 85/85/85/85 degree viewing angles ensure clear visuals from almost any position.

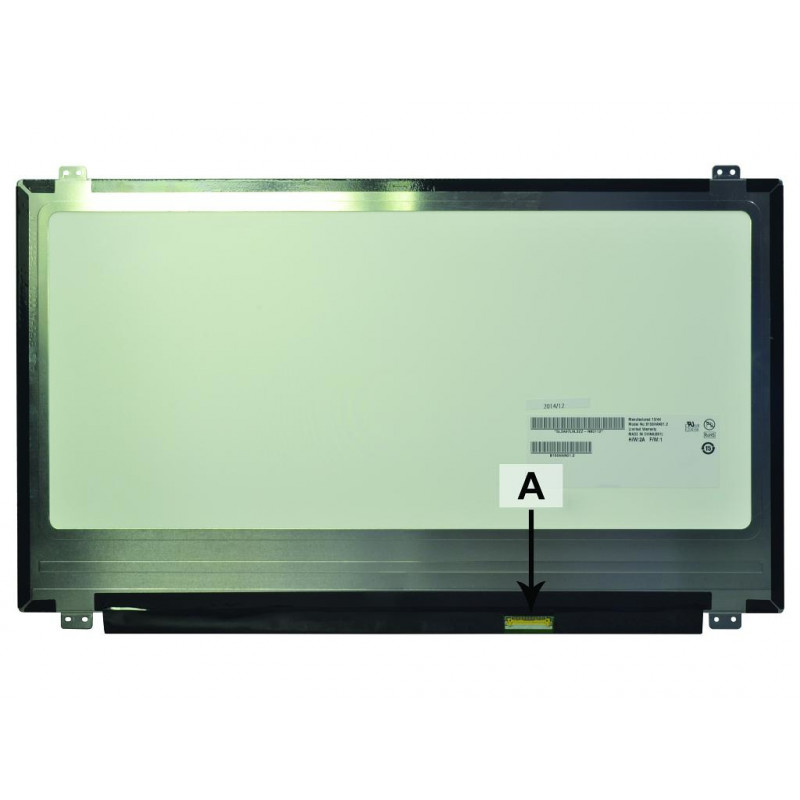

• 30-pin eDP connector located on the bottom right (viewed from the back) for straightforward installation.
• 60 Hz refresh rate and 25 ms response time handle everyday computing, office work, and multimedia.
• 45% NTSC color gamut delivers accurate colors for general use.
• Compatible with laptops that originally use the BOE NV156FHM-N42 panel (version V8).

Specifications

• Display Size: 15.6 inches (39.6 cm)
• Resolution: 1920 x 1080 (Full HD)
• Aspect Ratio: 16:9
• Panel Type: IPS (In-Plane Switching)
• Backlight Type: LED
• Surface Finish: Matte (Anti-Glare)
• Refresh Rate: 60 Hz
• Brightness: 250 cd/m²
• Color Gamut: 45% NTSC
• Connector Type: 30-pin eDP
• Connector Position: Bottom Right (viewed from back)
• Viewing Angle: 85/85/85/85 (Typ.)
• Response Time: 25 ms (Typ.)
• Display Technology: TFT Active Matrix LCD

Tips

Before ordering, verify that your laptop currently uses a BOE NV156FHM-N42 panel or a compatible equivalent with the same connector and mounting. Handle the screen by its edges to avoid fingerprints or pressure damage, and disconnect the battery before installation. Use proper tools and anti-static precautions for a safe replacement.
