2-POWER Panel LCD para monitor 15,6 pulgadas Full HD LED mate TN (39,6 cm)

The 2-POWER SCR0566B is a high-quality 15.6-inch replacement LCD panel designed for laptops and displays requiring a 30-pin eDP connection. Featuring Full HD resolution and a matte TN panel, it delivers clear, sharp images with reduced glare, making it ideal for everyday computing and professional use.

Advantages

This panel offers a cost-effective solution for screen repairs or upgrades. The matte surface minimizes reflections, enhancing visibility in bright environments. With LED backlighting, it ensures energy efficiency and consistent brightness. The TN technology provides fast response times, suitable for general tasks and light multimedia.

Suitable for

• Replacement for broken or defective laptop screens
• DIY repairs and refurbishments
• Compatible with devices using 30-pin eDP connectors

Key specifications

• Screen Size: 15.6 inches (39.6 cm)
• Resolution: 1920 x 1080 (Full HD)
• Panel Type: TN (Twisted Nematic)
• Surface: Matte (Anti-Glare)
• Backlight: LED
• Aspect Ratio: 16:9
• Connector: 30-pin eDP

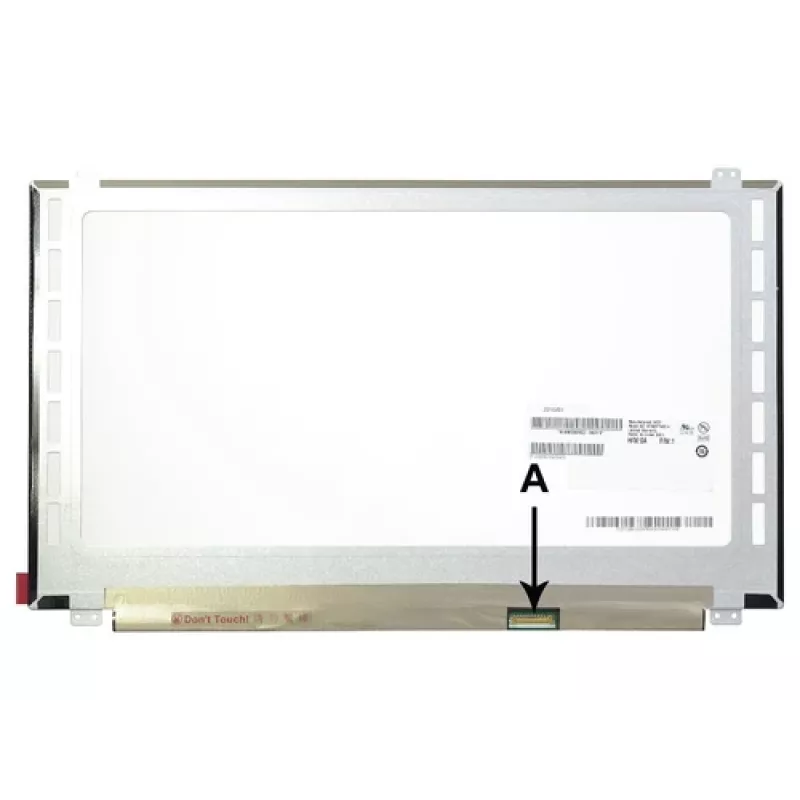

• Connector Position: Bottom Right (viewed from back)
• Refresh Rate: 60 Hz
• Brightness: 200-220 cd/m²
• Response Time: 8-12 ms
• Colour Gamut: 45% NTSC
• Viewing Angles: 45°/45°/20°/40° (L/R/U/D)
• Pixel Density: ~141 PPI

Recommendations

Ensure your device uses a 30-pin eDP connector and has sufficient space for a 15.6-inch panel. Professional installation is recommended if you are not experienced with laptop disassembly.
