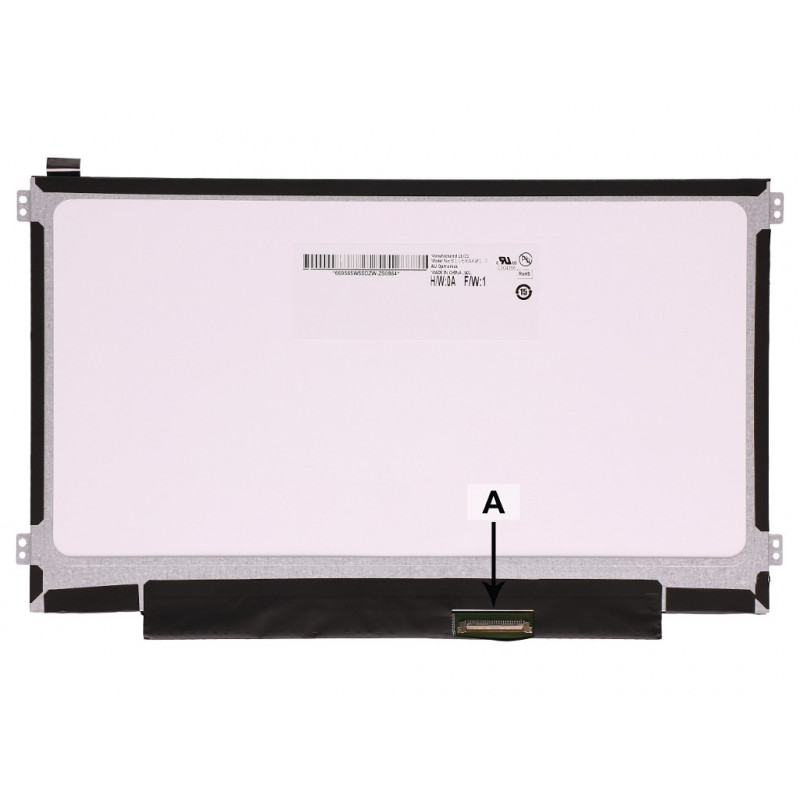

2-power Pantalla LED OnCell T/P mate 1366x768 de 11.6" (2P-B116XTK01.0)

Your laptop's display is cracked, dim, or unresponsive to touch? This 2-POWER 11.6-inch replacement panel restores crisp visuals and smooth touch interaction, making your device feel new again. With a native resolution of 1366x768 (WXGA), LED backlighting, and a matte finish, it delivers clear images even in bright environments while reducing glare and fingerprints.

Who is it for

This panel is ideal for technicians, IT professionals, and DIY enthusiasts who need a reliable, cost-effective replacement for laptops, 2-in-1s, or industrial devices that use an 11.6-inch On-Cell touch display with a 30-pin eDP connector. It is compatible with a wide range of models from major brands, provided the connector and mounting match.

Main features

• 11.6-inch LCD with LED backlight for energy efficiency and uniform brightness
• On-Cell capacitive touch technology for responsive, multi-touch input
• Matte screen finish to minimize reflections and smudges
• WXGA resolution (1366x768) for sharp text and images
• 30-pin eDP connector for modern, high-speed signal transmission
• Wide viewing angles (45°/45°/20°/45°) for comfortable viewing from different positions
• 220 cd/m² brightness and 45% NTSC color gamut for accurate color reproduction
• 60 Hz refresh rate and 10 ms response time for smooth motion

Specifications

• Brand: 2-POWER
• Model: 2P-B116XTK01.0
• Display Size: 11.6 inches
• Resolution: 1366 x 768 (WXGA)
• Aspect Ratio: 16:9
• Panel Type: LCD with LED backlight
• Touchscreen: Yes, On-Cell capacitive
• Surface: Matte
• Connector: 30-pin eDP
• Brightness: 220 cd/m²
• Color Gamut: 45% NTSC
• Response Time: 10 ms
• Viewing Angles: 45°/45°/20°/45° (L/R/U/D)
• Refresh Rate: 60 Hz

Tips

Before ordering, verify that your original panel has a 30-pin eDP connector and matches the physical dimensions and mounting holes. Handle the panel by its edges and use an anti-static wrist strap during installation. Test the display before final assembly to ensure touch functionality works correctly.
