70mai UP06 Kit de conexión directa USB-C para modo aparcamiento

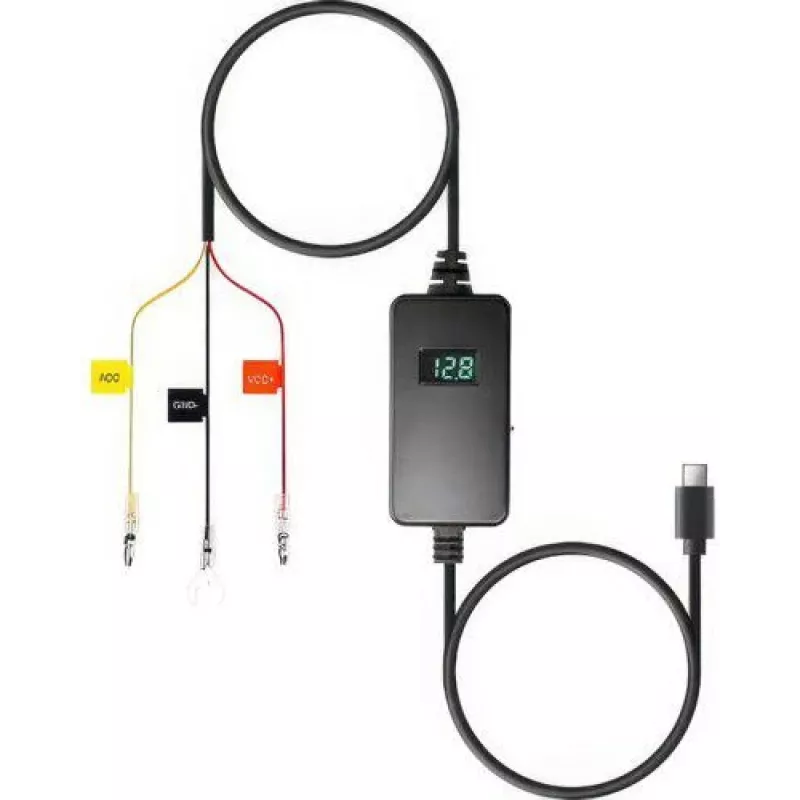

The 70mai UP06 Hardwire Kit is an essential accessory for enabling 24-hour parking surveillance on compatible 70mai dash cameras. It provides a constant power supply by connecting directly to your vehicle's fuse box, ensuring your dash cam remains active even when the engine is off. The kit features intelligent low-voltage protection to prevent battery drain, making it a safe and reliable solution for continuous monitoring.

Advantages

With the UP06 Hardwire Kit, you can enjoy round-the-clock protection for your parked vehicle. Its low-voltage cut-off automatically disconnects the dash cam when the battery voltage drops to a safe level (11.4V for 12V systems, 22.8V for 24V systems), preventing your car battery from dying. The kit supports both ACC (switched) and B+ (constant) power connections, allowing for flexible installation. Overcurrent and short circuit protection ensure safe operation.

Suitable for

• 70mai Dash Cam A810, A800S, A500S, A400, M500, A200, Omni X200
• Any vehicle with a 12-30V electrical system
• Users who require 24-hour parking monitoring

Key specifications

• Input Voltage: DC 12-30V
• Output Voltage: DC 5V
• Output Current: 3A
• Output Connector: USB-C
• Input Connection: Hardwire to fuse box (3 wires: ACC, B+, GND)
• Low Voltage Protection: 11.4V (12V system) / 22.8V (24V system)
• Input Cable Length: Approx. 3 meters
• Output Cable Length: Approx. 0.2 meters
• Operating Temperature: -20°C to 70°C

Recommendations

For optimal performance, professional installation is recommended. Ensure compatibility with your specific 70mai dash cam model before purchase. The hardwire kit is designed for vehicles with a 12V or 24V electrical system and should be installed by a qualified technician to avoid damage to your vehicle's electrical system.
