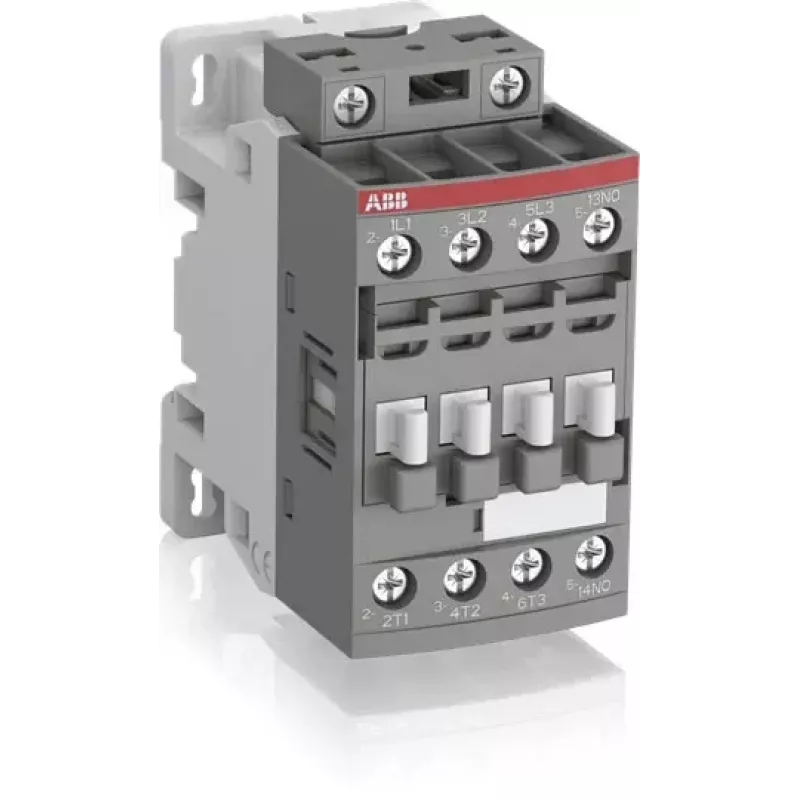

ABB AF16-30-01-13 Contactor 3 polos, bobina 100-250V AC/DC, 18A, 1 contacto auxiliar 1NO 1SBL177001R1301

Industrial control panels and motor starters rely on the ABB AF16-30-01-13 contactor to switch three-phase loads up to 7.5 kW at 400 V. The wide-range 100-250 V AC/DC coil simplifies panel design by accepting either control voltage without coil changes, while the integrated 1NO auxiliary contact provides status feedback for PLCs or interlocks.

Key specifications

• Rated operational current (AC-3, 400 V): 18 A
• Rated operational power (AC-3, 400 V): 7.5 kW
• Coil voltage: 100-250 V AC/DC
• Number of main poles: 3
• Auxiliary contacts: 1 NO
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting: DIN rail (35 mm) or screw
• Terminal type: screw
• Degree of protection: IP20
• Operating temperature: -40 to +70 °C
• Electrical durability (AC-3): 1.5 million cycles
• Mechanical durability: 10 million cycles
• Rated short-time withstand current (Icw): 300 A for 1 s
• Power loss per pole: 0.8 W

Why choose it

The AF16 contactor features an electronic coil interface that handles large control voltage variations, reducing panel complexity and inventory. Its compact footprint and screw terminals make it suitable for both new installations and retrofits.

Ideal use cases

• Motor starting and stopping in industrial machinery
• Heating, lighting, and pump control circuits
• Building automation and HVAC systems

Good to know

The contactor complies with IEC 60947-1, IEC 60947-4-1, and IEC 60947-5-1. It is designed for use in pollution degree 3 environments and has an overvoltage category III rating.
