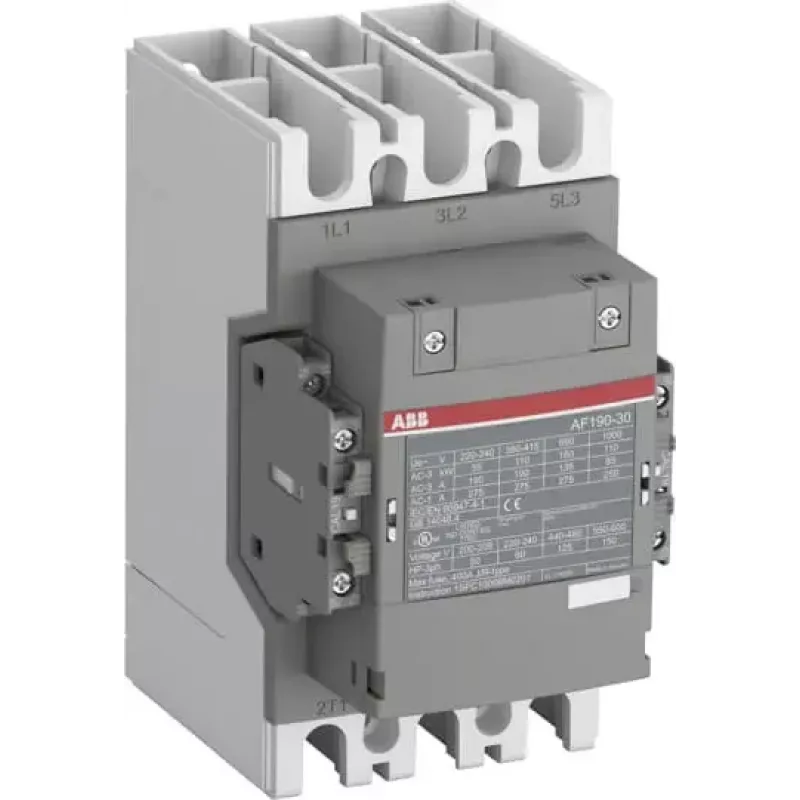

ABB AF190-30-22-13 contactor tripolar, bobina 100-250V AC/DC, 190A 1SFL487002R1322

Industrial motor control demands a contactor that can switch high currents reliably without coil burnout or contact welding. The ABB AF190-30-22-13 is a 3-pole contactor with an electronic coil that accepts a wide control voltage of 100-250 V AC/DC, eliminating the need for separate coil versions and reducing inventory complexity. It handles 190 A (AC-3, 400 V) for motor starting and up to 275 A (AC-1) for resistive loads, making it suitable for heavy-duty applications such as conveyors, pumps, and compressors.

Who is it for

Panel builders, maintenance engineers, and OEMs who need a robust contactor for high-power motor control. The wide coil voltage range simplifies design and spare parts management, while the screw terminals and DIN rail/screw mounting ensure easy installation in industrial enclosures.

Main features

• 3 main poles, 2 NO + 2 NC auxiliary contacts for control and signaling.
• Electronic coil accepts 100-250 V AC/DC, reducing coil variants.
• Rated operational current 190 A (AC-3, 400 V) and 275 A (AC-1).
• High electrical durability: 1.5 million cycles (AC-3).
• Wide operating temperature range: -40 to +70 °C.

Specifications

• Rated insulation voltage (Ui): 1000 V
• Rated impulse withstand voltage (Uimp): 8 kV
• Rated frequency: 50/60 Hz
• Degree of protection: IP20
• Mechanical durability: 10 million cycles
• Standards: IEC 60947-1 / 60947-4-1, UL 60947-1 / 60947-4-1, CSA C22.2 No. 60947-1 / 60947-4-1

Tips

Ensure proper heat dissipation by maintaining adequate spacing around the contactor. For motor loads, select overload relays compatible with the 190 A rating. The electronic coil draws low inrush current, allowing direct control from PLC outputs without interposing relays.
