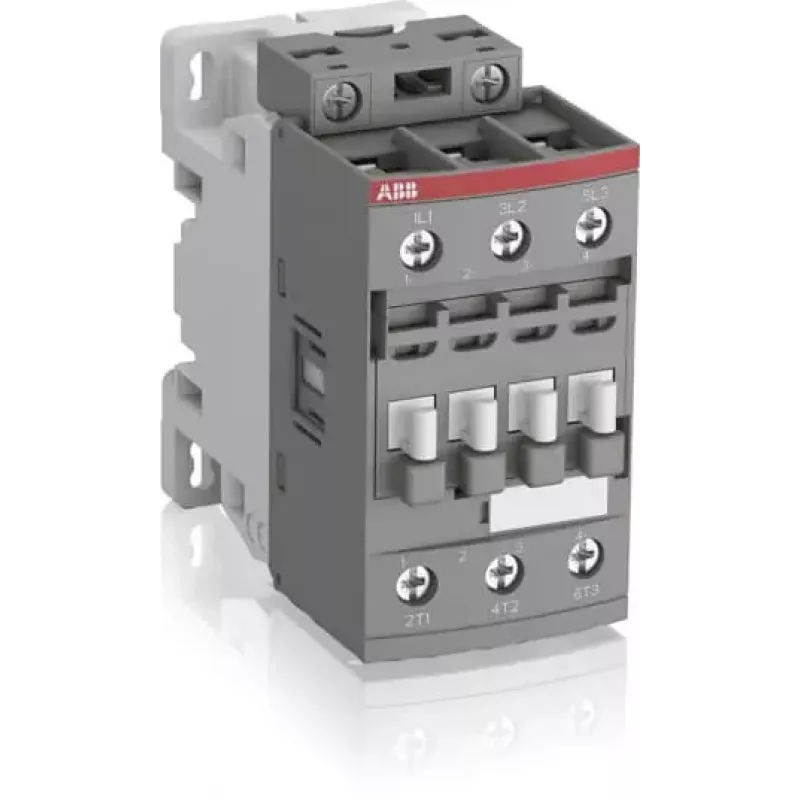

ABB AF26-30-00-11 contactor, tripolar, 26 A, bobina 20-60 V DC

The ABB AF26-30-00-11 is a 3-pole contactor engineered for reliable switching of motors and resistive loads up to 26 A (AC-3, 440 V) and 45 A (AC-1, 690 V). Its wide-range 20-60 V DC coil eliminates the need for separate control voltage versions, simplifying inventory and reducing downtime.

Advantages

Wide coil voltage range ensures stable operation even with fluctuating DC supplies. The AF technology reduces coil power consumption and heat generation, extending service life. Compact DIN-rail design saves panel space, while screw terminals provide secure, maintenance-friendly connections.

Suitable for

• Motor starting and control in industrial machinery
• Heating, ventilation, and air conditioning (HVAC) systems
• Pump and compressor control panels
• Power distribution and lighting control

Key specifications

• 3 main poles, 3 NO contacts
• Rated operational current: 26 A (AC-3), 45 A (AC-1)
• Rated operational power: 11 kW at 400 V AC-3
• Control coil: 20-60 V DC, wide range
• Mounting: DIN rail 35 mm or screw
• Degree of protection: IP20
• Standards: IEC 60947-4-1, UL, CSA

Recommendations

For DC control circuits with voltage variations, the AF26-30-00-11 provides consistent performance without coil replacement. Pair with ABB thermal overload relays for complete motor protection.
