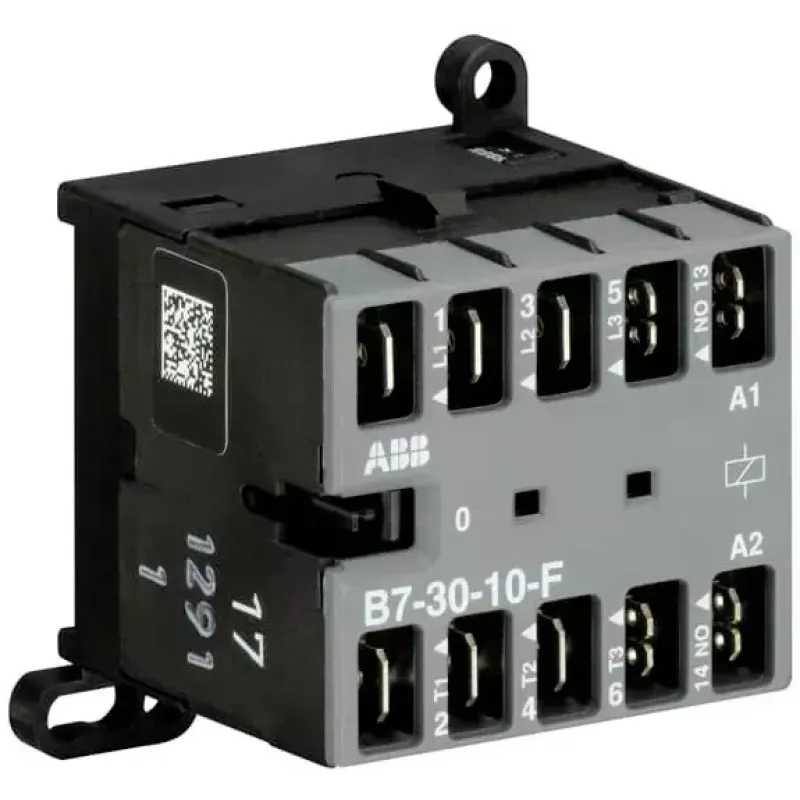

ABB B7-30-10-F-01 Minicontactor, tripolar, 1 NO, bobina 24-60 V AC/DC, 9 A AC-3 GJL1311003R0101

The ABB B7-30-10-F-01 is a compact mini contactor with a 3-pole main circuit and a 1 NO auxiliary contact, suitable for switching motors up to 4 kW (AC-3, 400 V). Its wide-range coil accepts 24-60 V AC or DC, simplifying control circuit design across different supply voltages.

Suitable for

• Motor starting and stopping in industrial control panels
• Resistive and lighting loads up to 20 A (AC-1, 400 V)
• Applications requiring DIN rail or screw mounting

Key specifications

• Rated operational current: 9 A (AC-3, 400 V), 20 A (AC-1, 400 V)
• Rated operational power: 4 kW (AC-3, 400 V)
• Coil voltage: 24-60 V AC/DC
• Number of poles: 3 main, 1 NO auxiliary
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Mechanical durability: 10 million cycles
• Electrical durability: 0.5 million cycles (AC-3)
• Terminal type: screw terminals
• Degree of protection: IP20 (terminals)
• Operating temperature: -25 to +55 °C

Recommendations

Verify coil voltage compatibility with your control circuit and ensure proper short-circuit protection according to local regulations.
