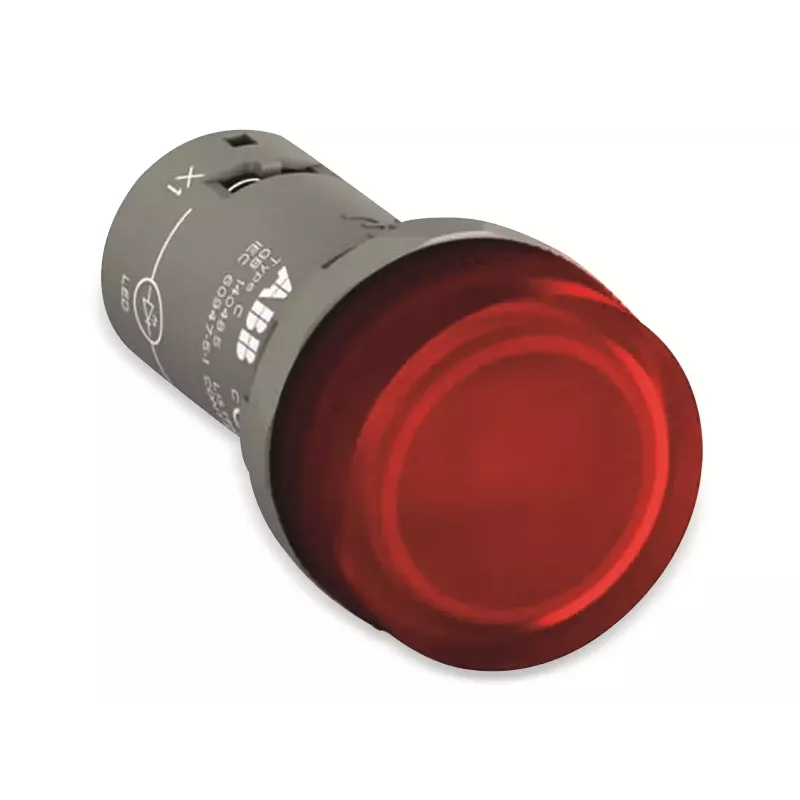

ABB CL2-502R Piloto de señalización, rojo, 24V AC/DC, LED, 22 mm 1SFA619403R5021

The ABB CL2-502R stands out with its robust IP66/IP67/IP69K front protection and energy-efficient LED, ensuring reliable indication in demanding environments.

Highlights

• Red LED pilot light with 100,000-hour lifespan
• Wide voltage range: 24V AC/DC
• 22mm mounting hole, screw terminals for secure wiring
• Front protection IP66, IP67, IP69K; terminal IP20
• Operating temperature -25 to +70 °C

In daily use

This pilot light provides clear status indication on control panels and machinery. Its robust construction withstands harsh conditions, while the low power consumption of 0.2W reduces energy costs. Installation is straightforward with screw terminals accepting solid or fine-strand conductors up to 2.5mm² or 2x1.5mm².

Full specifications

• Light Colour: Red
• Supply Voltage: 24V AC/DC
• Light Source: LED
• Mounting Hole Diameter: 22mm
• Terminal Type: Screw Terminals
• Front Protection Rating: IP66, IP67, IP69K
• Terminal Protection Rating: IP20
• Operating Temperature: -25 to +70 °C
• Rated Insulation Voltage (Ui): 250V
• Rated Impulse Withstand Voltage (Uimp): 4kV
• Power Consumption: 0.2W
• LED Lifespan: 100,000 hours
• Standards: IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14
• Connection Capacity (Solid): 1 x 2.5mm²
• Connection Capacity (Fine-strand): 2 x 1.5mm²
• Bezel Material: Plastic
• Product Series: CL2
• Function: Pilot Light / Indicator
• RoHS Status: Compliant

Final note

ABB's CL2 series offers reliable, high-quality signaling devices for industrial applications, ensuring safety and efficiency.
