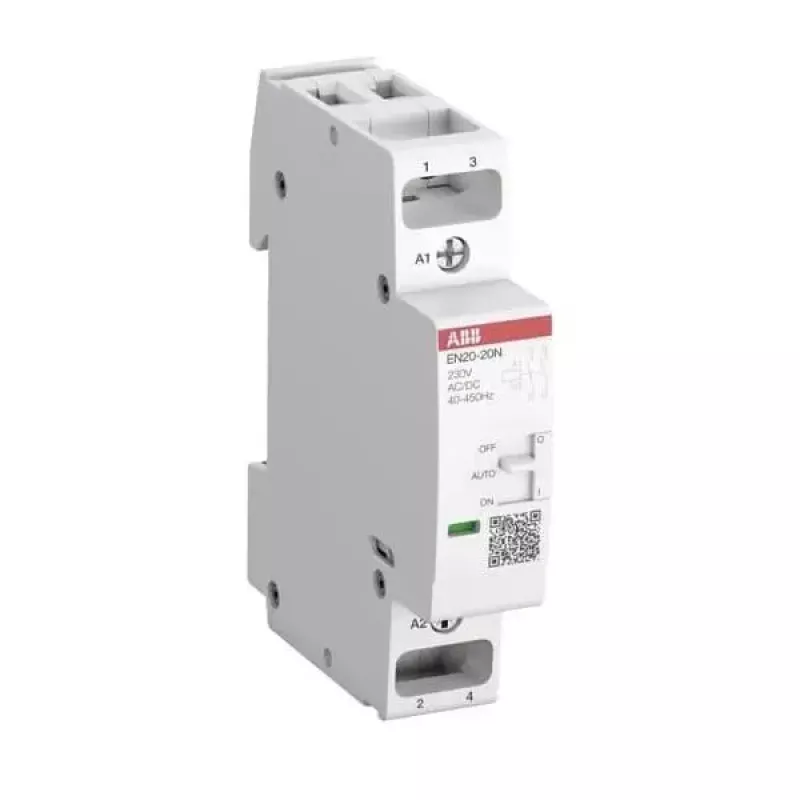

ABB EN20-20N-06 Minicontactor, 2 N.A., bobina 24 V AC, 20 A AC-1, 9 A AC-3, carril DIN 1SBE122111R0620

Rated for 20 A at AC-1 and 9 A at AC-3, this ABB EN20-20N-06 mini contactor handles up to 4 kW at 400 V. Its 2 N.O. main poles switch reliably in a compact 18 mm width.

Overview

The ABB EN20-20N-06 is a mini contactor with two normally open main poles, a 24 V AC coil, and screw terminals. It mounts on a DIN rail and is suited for control circuits up to 690 V insulation voltage.

What stands out

• High electrical durability: 0.5 million cycles at AC-3.
• Mechanical durability of 10 million cycles.
• Compact 18 mm width saves panel space.
• IP20 protection for use in enclosed installations.

Technical details

• Rated operational current AC-1 (Ie): 20 A at 400 V
• Rated operational current AC-3 (Ie): 9 A at 400 V
• Rated operational power AC-3 (Pe): 4 kW at 400 V
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Coil voltage: 24 V AC
• Number of main poles: 2 N.O.
• Terminal type: screw terminals
• Mounting: DIN rail
• Operating temperature: -25 to +55 °C
• Dimensions (W x H x D): 18 x 85 x 65 mm

Our verdict

With its high current ratings and proven durability, the ABB EN20-20N-06 is a robust choice for motor control and switching applications.
