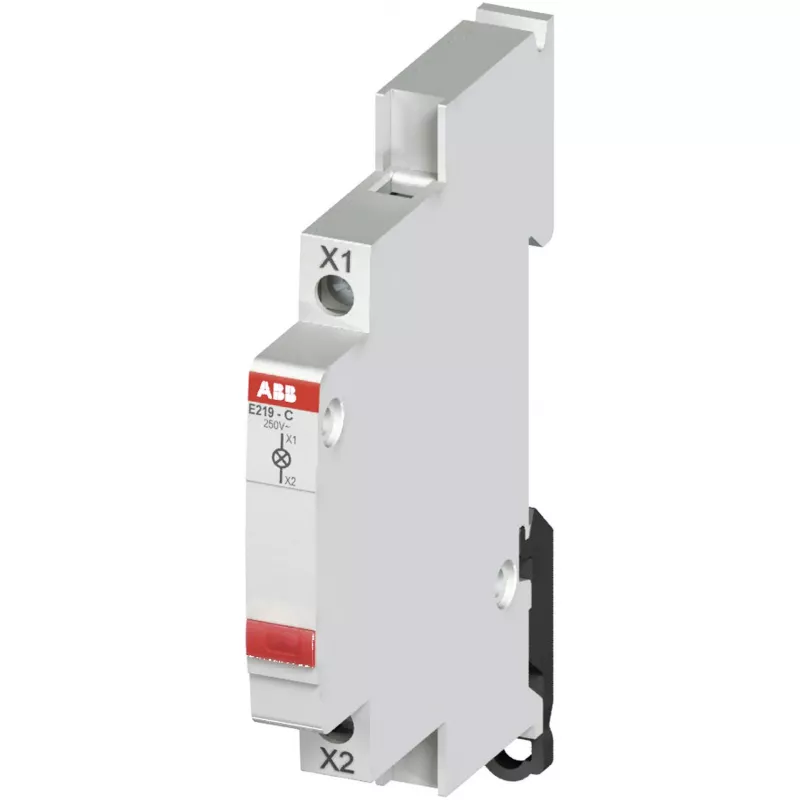

ABB piloto de señalización 12-48 V AC/DC rojo LED 2CCA703422R0001

In industrial control panels, a missing or unclear status signal can lead to operator confusion, delayed responses, and even safety risks. The ABB Pilot Light 2CCA703422R0001 solves this by providing a bright, reliable red LED indication for circuits operating on 12 to 48 V AC/DC. Its compact 1-module design and DIN rail mounting make it a straightforward addition to any control system, ensuring that equipment status is always visible at a glance.

Who is it for

This pilot light is intended for electrical engineers, panel builders, and maintenance technicians who need a durable and energy-efficient status indicator for industrial control systems, machinery, and building automation. Its wide voltage range and standardized mounting make it suitable for both new installations and retrofits in existing panels.

Main features

• Wide operating voltage: 12-48 V AC/DC for flexible use across various control circuits.
• High-intensity red LED light source ensures clear visibility even in bright environments.
• Compact 1-module (18 mm) design saves valuable panel space.
• DIN rail mounting allows for quick and secure installation.
• Long operational lifetime of over 100,000 hours reduces maintenance and replacement costs.
• Low power consumption of 0.5 W at 24 V AC/DC contributes to energy efficiency.
• Screw terminals with a capacity of 0.75 - 2.5 mm² ensure secure and reliable wiring connections.
• Complies with IEC/EN 60947-5-1 standards for industrial control equipment.

Specifications

• Brand: ABB
• Model: 2CCA703422R0001
• MPN: 2CCA703422R0001
• EAN: 7612270939251
• Operating Voltage: 12-48 V AC/DC
• Light Source: LED
• Light Colour: Red
• Mounting Type: DIN Rail
• Module Width: 1 Module (18 mm)
• Rated Current: 10 mA (at 24V AC/DC)
• Power Consumption: 0.5 W (at 24V AC/DC)
• Terminal Type: Screw Terminals
• Terminal Capacity: 0.75 - 2.5 mm² (flexible/rigid)
• Degree of Protection (Housing): IP20
• Degree of Protection (Terminals): IP40
• Operating Temperature: -25 to +55 °C
• Storage Temperature: -40 to +70 °C
• Standards: IEC/EN 60947-5-1
• Lifetime: > 100,000 hours
• Pollution Degree: 3
• Altitude: 2000 m

Tips

When installing, ensure the supply voltage matches the rated range to avoid damage. Use appropriate wire sizes (0.75 - 2.5 mm²) for screw terminals and tighten securely. For optimal visibility, mount the pilot light at eye level and avoid obstructions. This unit is suitable for use in pollution degree 3 environments up to 2000 m altitude.
