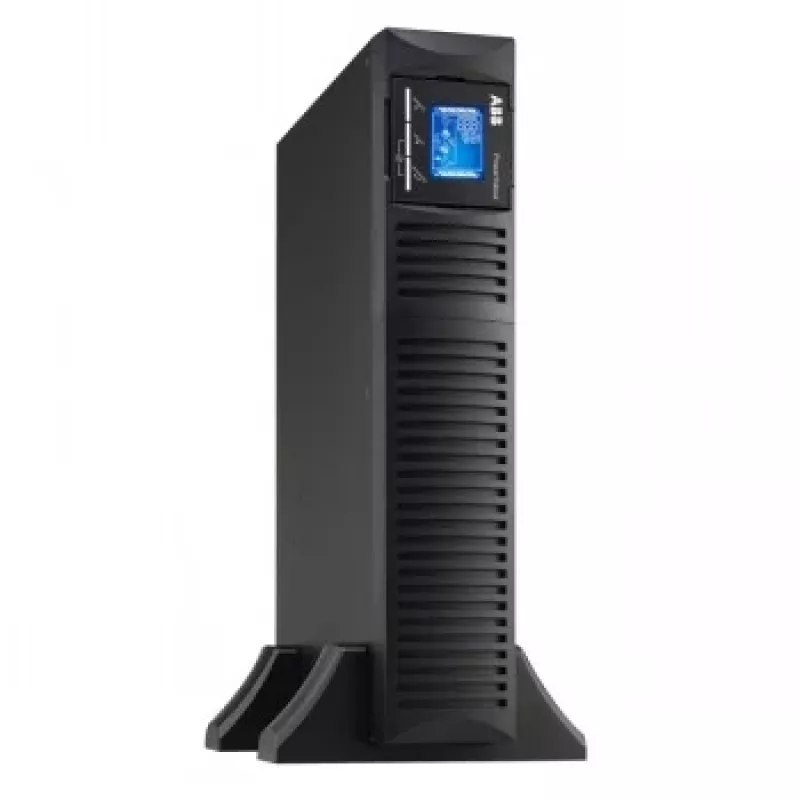

ABB PowerValue 11 RT G2 1000 VA SAI online rack/torre

For mission-critical single-phase loads, the ABB PowerValue 11 RT G2 1000 VA stands apart with true online double-conversion technology in a compact 2U rack/tower form factor. Unlike line-interactive units that switch to battery during voltage fluctuations, this UPS continuously regenerates clean AC power, isolating connected equipment from sags, surges, and frequency variations. The result is zero transfer time and pure sine wave output, essential for sensitive servers, network gear, and industrial controllers.

Highlights

• Online double-conversion topology with up to 93% efficiency (98% in ECO mode)
• 1000 VA / 900 W capacity with 4x IEC C13 outlets and IEC C14 input
• Rack/tower convertible design (2U) with included mounting rails
• Advanced battery management extends VRLA battery life and provides 4 minutes runtime at full load, 12 minutes at half load
• Multiple communication options: USB, RS-232, and smart slot for optional SNMP/relay card
• Configurable output voltage (208/220/230/240 VAC) and wide input range (110–300 VAC)
• Automatic and manual bypass for maintenance without downtime

In daily use

Deploy the PowerValue 11 RT G2 in server rooms, branch offices, or industrial cabinets where reliable power is non-negotiable. Its intuitive LCD display provides real-time status of load, battery, and input/output parameters, while audible alarms alert you to power events. The hot-swappable battery design allows replacement without powering down connected loads, minimizing maintenance windows. With a noise level below 45 dBA, it operates quietly enough for open office environments.

Full specifications

• Power capacity: 1000 VA / 900 W
• Topology: Online double-conversion
• Form factor: Rack/tower (2U)
• Input voltage range: 110–300 VAC (load dependent)
• Output voltage: 208/220/230/240 VAC (configurable)
• Output waveform: Pure sine wave
• Output connections: 4x IEC C13
• Input connection: 1x IEC C14
• Battery type: Sealed lead-acid (VRLA)
• Typical runtime: 4 min (full load), 12 min (half load)
• Communication: USB, RS-232, smart slot
• Efficiency: up to 93% online, 98% ECO
• Noise level: < 45 dBA
• Operating temperature: 0–40 °C
• Dimensions (WxDxH): 438 x 410 x 86.5 mm
• Weight: 12.6 kg

Final note

The ABB PowerValue 11 RT G2 1000 VA delivers enterprise-grade power protection in a space-saving package, backed by ABB's global service network and a 2-year warranty. Ideal for IT managers seeking reliable, efficient, and manageable UPS solutions.
