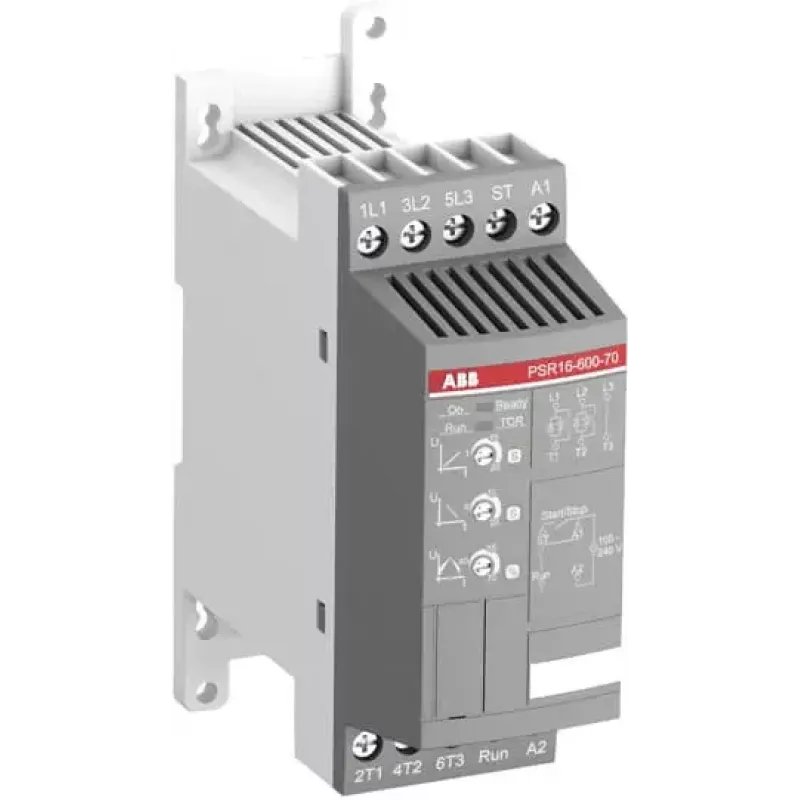

ABB PSR16-600-70 arrancador suave, 16 A, 208-600 V AC, control 100-240 V AC, 3 fases, 7,5 kW a 400 V 1SFA896107R7000

This ABB PSR series soft starter delivers smooth motor starting and stopping for three-phase motors up to 16 A. Its integrated bypass reduces heat and energy consumption during continuous operation, while the wide voltage range supports global applications.

Advantages

Compact design with built-in bypass for energy savings. Adjustable start and stop ramp times from 0 to 20 seconds allow precise control. Wide control supply voltage (100-240 V AC) simplifies integration. Suitable for DIN rail or screw mounting.

Suitable for

• Pumps, fans, and conveyors
• Small compressors and agitators
• General industrial motor control

Key specifications

• Rated operational current: 16 A
• Rated operational voltage: 208-600 V AC
• Control supply voltage: 100-240 V AC
• Motor power: 7.5 kW at 400 V, 4 kW at 230 V, 9 kW at 500 V, 11 kW at 600 V
• Integrated bypass: Yes
• Starting ramp time: 0-20 s
• Stopping ramp time: 0-20 s
• Degree of protection: IP20
• Mounting: DIN rail / screw
• Operating temperature: -25 to +60 °C
• Overload protection: Built-in

Recommendations

For reliable starting of three-phase motors up to 7.5 kW at 400 V, the PSR16-600-70 offers a compact, energy-efficient solution with simple setup.
