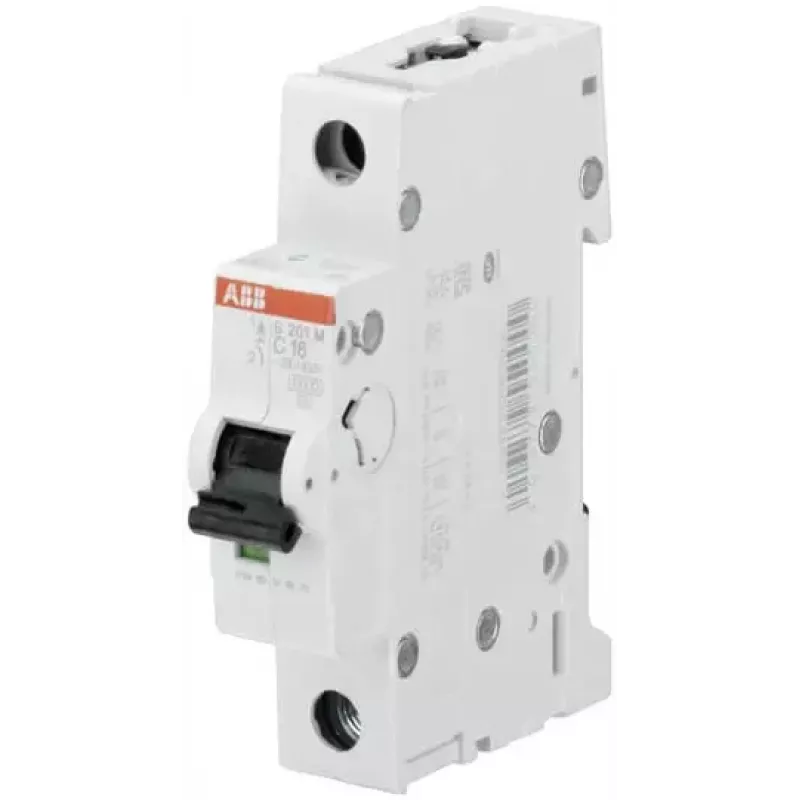

ABB S201M-C16 interruptor automático 16A curva C 1 polo 10kA 2CDS271001R0164

The ABB S201M-C16 miniature circuit breaker (MCB) offers robust protection for residential and commercial electrical installations, with a rated current of 16 A and a C tripping characteristic for moderate inrush loads. Its 10 kA breaking capacity ensures safe interruption of high fault currents.

Advantages

This MCB from the System pro M compact S200M series provides reliable overcurrent and short-circuit protection in a compact 1-module width. The C curve is suited for circuits with moderate inrush currents, such as lighting and socket outlets. Screw terminals accommodate conductors up to 35 mm² rigid, ensuring secure connections.

Suitable for

• Protection of lighting and socket circuits in residential and commercial buildings
• Applications with moderate inrush currents, such as small motors or transformers
• DIN rail mounting in distribution boards

Key specifications

• Rated current: 16 A
• Tripping characteristic: C
• Number of poles: 1
• Rated short-circuit breaking capacity: 10 kA
• Rated voltage: 230/400 V AC
• Rated frequency: 50/60 Hz
• Mounting: DIN rail
• Width: 1 module
• Degree of protection: IP20 (terminals), IP40 (enclosure)
• Terminal capacity: 0.75–25 mm² flexible, 0.75–35 mm² rigid

Recommendations

For reliable circuit protection with a compact footprint, the ABB S201M-C16 is an excellent choice for electricians and panel builders.
