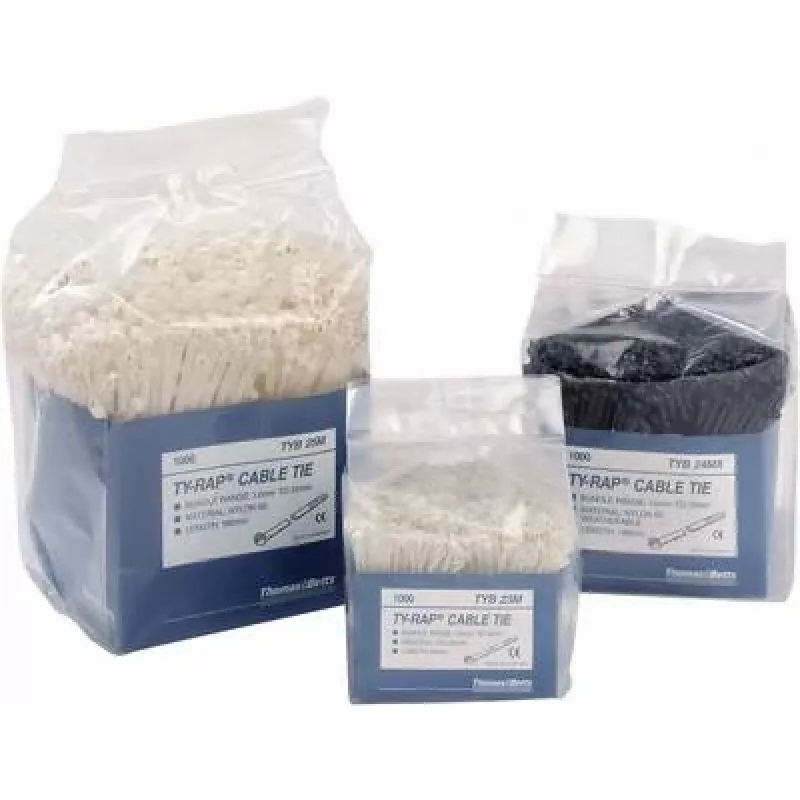

ABB Ty-Rap® Brida estándar con cierre de gancho de acero, natural, 186mm x 4,8mm, 1000 unidades caja de trabajo (TYB25M)

The ABB Ty-Rap® TYB25M is a high-quality standard cable tie designed for general-purpose cable bundling and fastening. Made from durable Polyamide 6.6 (Nylon 6.6) with a stainless steel barb locking mechanism, it provides reliable and secure fastening. The natural color tie is suitable for indoor applications where UV resistance is not required. Supplied in a convenient work box containing 1000 pieces, it is ideal for professional electricians, installers, and maintenance teams.

Advantages

• Robust polyamide 6.6 material ensures long-lasting performance
• Steel barb lock provides secure and permanent fastening
• Halogen-free and RoHS compliant for environmental safety
• UL 94 V-2 flammability rated for fire safety
• Work box packaging allows easy access and storage

Suitable for

• General cable bundling in electrical installations
• Wire management in control panels and cabinets
• Fastening cables in automotive and industrial applications
• Organizing wires in data centers and telecommunications

Key specifications

• Length: 186 mm
• Width: 4.8 mm
• Colour: Natural
• Material: Polyamide 6.6 (Nylon 6.6)
• Locking Mechanism: Steel Barb
• Tensile Strength: 222 N (50 lbs)
• Operating Temperature: -40°C to +85°C
• Flammability Rating: UL 94 V-2
• Maximum Bundle Diameter: 45 mm
• Minimum Bundle Diameter: 3.2 mm
• Quantity per Box: 1000
• Packaging: Work Box
• Certifications: RoHS, UL Listed, CSA Certified

Recommendations

For outdoor or UV-exposed applications, consider using black or UV-resistant cable ties. Always ensure the tie is not over-tightened to avoid damage to cables.
