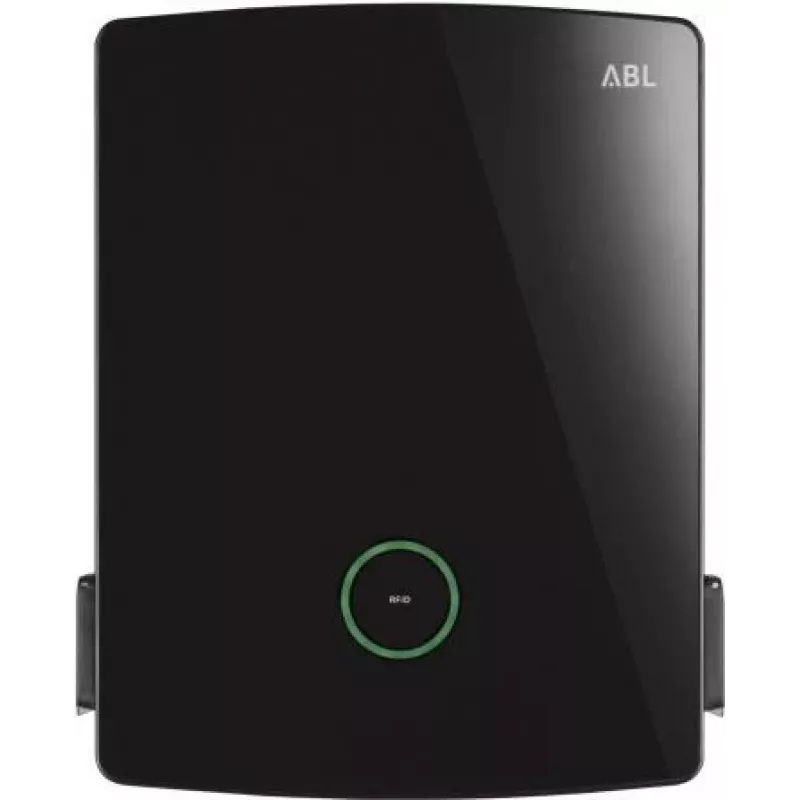

ABL Sursum eM4 Twin Wallbox Extender 11/22 kW 2x conector hembra Type 2 reev ready

The ABL Sursum eM4 Twin Wallbox Extender is a high-performance dual charging station designed for electric vehicles. With configurable charging power of 11 kW or 22 kW per charging point, it offers fast and reliable charging for two vehicles simultaneously. The wallbox features two Type 2 sockets (IEC 62196-2) with electromechanical locking, ensuring secure connections. It is reev ready with OCPP 1.6 JSON backend connectivity, making it ideal for smart charging management. The integrated MID-certified energy meter provides accurate consumption tracking, while the 6 mA DC fault current detection enhances safety. With an IP54 protection rating and IK08 impact resistance, it is suitable for both indoor and outdoor wall-mounted installations.

Advantages

Dual charging points for simultaneous EV charging, configurable power output (11/22 kW), OCPP-compliant backend integration, integrated MID meter, and robust weatherproof design.

Suitable for

• Electric vehicle charging at commercial and residential properties
• Fleet charging stations
• Smart charging networks requiring OCPP compatibility

Key specifications

• Charging Power: 11 kW / 22 kW AC (configurable)
• Number of Charging Points: 2
• Connector Type: Type 2 Socket (IEC 62196-2)
• Connector Locking: Electromechanically lockable
• Backend Connectivity: reev ready (OCPP 1.6 JSON)
• Phases: 3-phase
• Nominal Current: 16A (11 kW) / 32A (22 kW) per point
• Nominal Voltage: 400V AC
• Integrated Meter: Yes, MID-certified
• DC Fault Current Detection: 6 mA DC
• Protection Class: IP54
• Impact Resistance: IK08
• Mounting: Wall-mounted
• Operating Temperature: -30°C to +50°C
• Housing Material: UV-resistant polycarbonate

Recommendations

For optimal performance, use with a Type A RCD and ensure proper installation by a qualified electrician. Compatible with reev backend services for advanced charging management.
