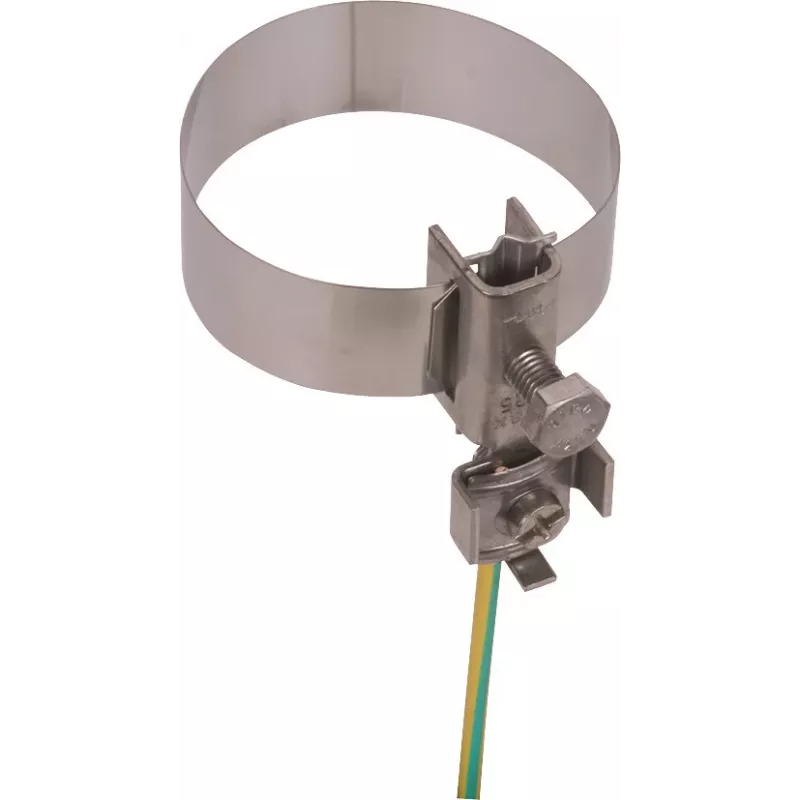

Abrazadera de tubo de puesta a tierra DEHN para conductor plano o redondo, diámetro de tubo 26,9–165 mm, acero inoxidable, 540912

This DEHN earthing pipe clamp provides a reliable connection between earthing conductors and metallic pipes with diameters from 26.9 mm to 165 mm. Its stainless steel clamp body and hot-dip galvanized connection plate ensure high corrosion resistance, making it suitable for equipotential bonding, earthing, and lightning protection systems. The clamp accommodates flat conductors up to 30 x 4 mm or round conductors up to 8 mm diameter, secured via an M10 screw terminal.

Highlights

• Wide pipe diameter range: 26.9–165 mm (DN 20–DN 150)
• Accepts flat conductors up to 30 x 4 mm or round conductors up to 8 mm
• Stainless steel clamp body (V2A / 1.4301) for corrosion resistance
• Hot-dip galvanized connection plate (tZn)
• M10 screw terminal for secure connection
• Compliant with EN 62561-1

In daily use

The clamp is designed for straightforward installation on pipes, providing a durable and low-resistance connection for earthing and bonding applications. Its robust construction ensures long-term performance in demanding environments.

Full specifications

• Product Type: Earthing Pipe Clamp
• Pipe Diameter Range: 26.9–165 mm
• Nominal Diameter: DN 20–DN 150
• Conductor Type: Flat or round
• Max Flat Conductor: 30 x 4 mm
• Max Round Conductor Diameter: 8 mm
• Connection Terminal: M10 screw
• Number of Connections: 1
• Clamp Material: Stainless Steel (V2A / 1.4301)
• Connection Plate Material: Hot-dip galvanized steel (tZn)
• Standard Compliance: EN 62561-1
• Corrosion Resistance: High
• Mounting Type: Pipe

Final note

DEHN's earthing pipe clamp offers a versatile and corrosion-resistant solution for secure earthing connections on pipes of various sizes.
