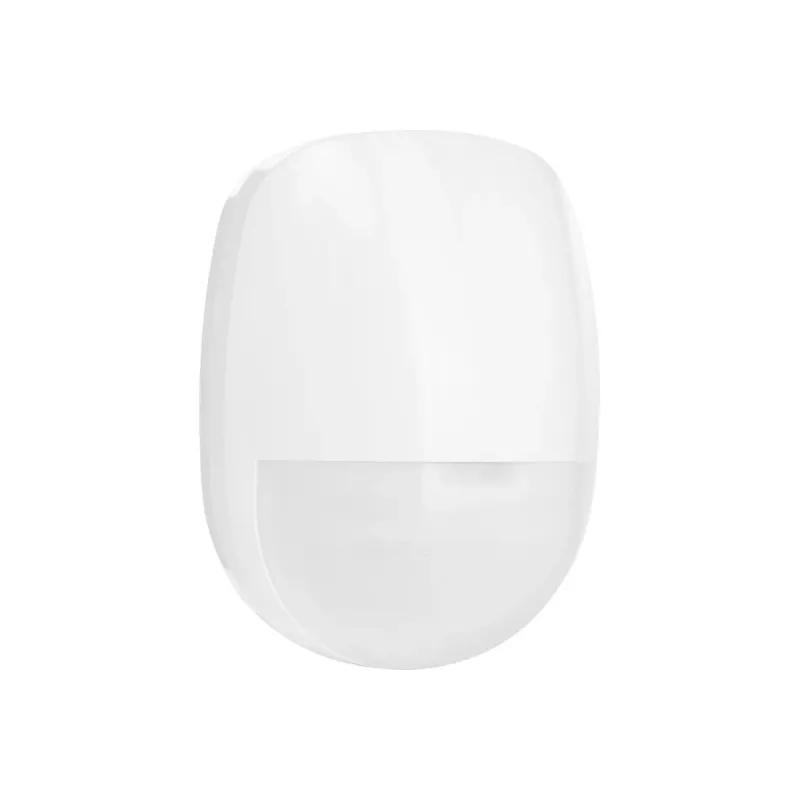

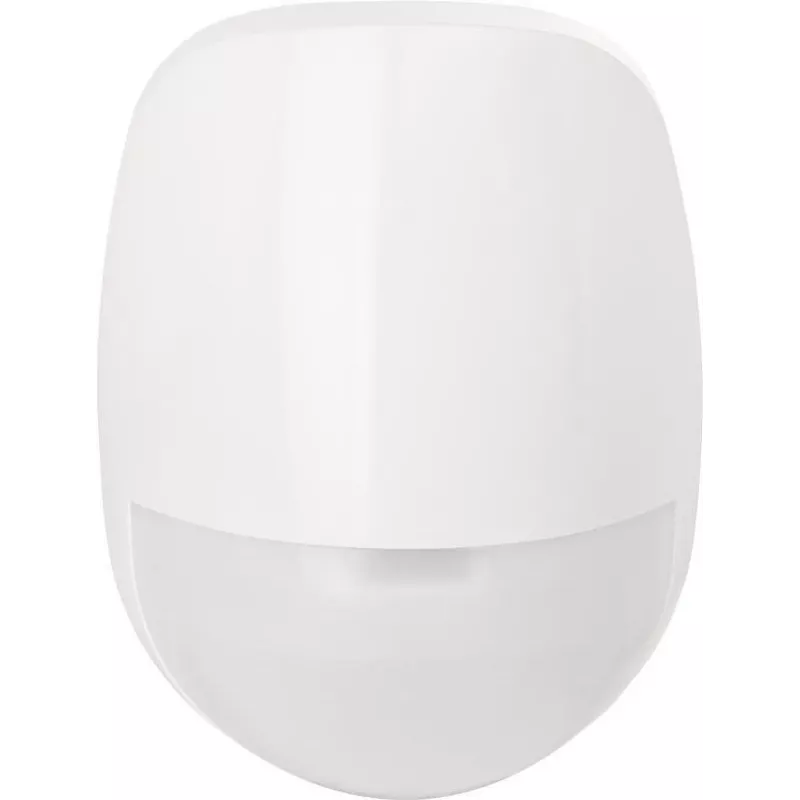

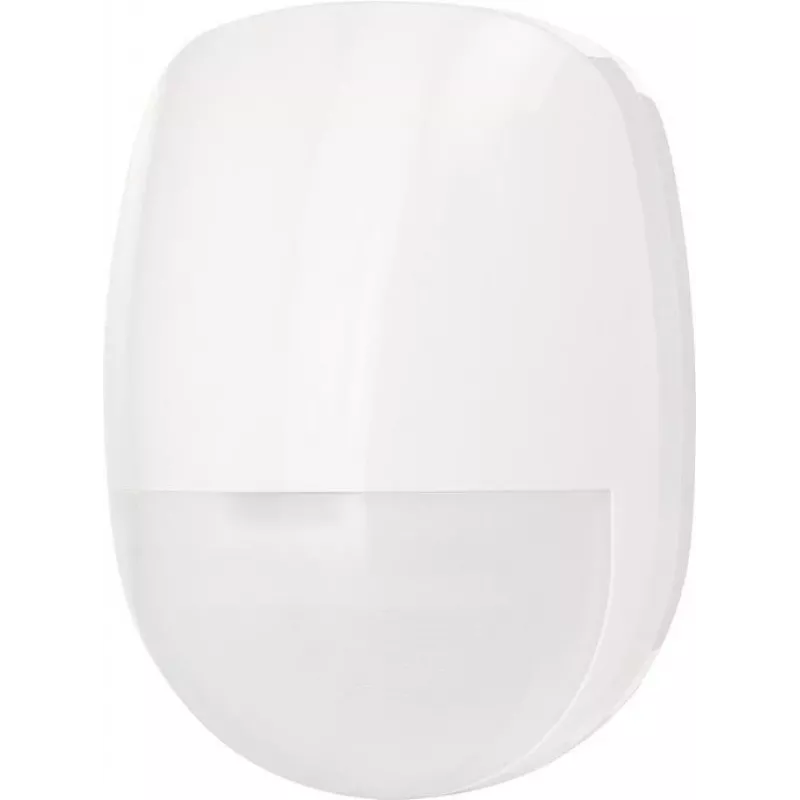

ABUS AZBW10000 Detector de movimiento PIR inalámbrico para alarmas Secvest y Smartvest, blanco

False alarms and missed intrusions are common problems with poorly designed motion detectors. The ABUS AZBW10000 solves this by providing reliable passive infrared detection with a 12-meter range and 90-degree coverage, ensuring your indoor spaces are monitored effectively while minimizing false triggers.

Who is it for

This detector is ideal for homeowners and small businesses using ABUS Secvest or Smartvest alarm systems who need a dependable, wireless motion sensor for indoor security. It suits those who want easy installation without complex wiring.

Main features

• Passive infrared (PIR) technology detects movement within 12 meters at a 90-degree angle.
• Wireless communication at 868.6625 MHz integrates seamlessly with ABUS Secvest and Smartvest panels.
• Tamper protection alerts against opening or removal of the device.
• Powered by a single CR123A lithium battery with up to 2 years of life.
• Wall-mounted design with recommended height of 2.4 meters for optimal coverage.
• LED indicator for status and alarm, plus walk test mode for easy verification.

Specifications

• Detection technology: Passive Infrared (PIR)
• Wireless frequency: 868.6625 MHz
• Detection range: 12 m
• Detection angle: 90°
• Mounting type: Wall-mounted
• Recommended installation height: 2.4 m
• Power supply: 1x CR123A 3V Lithium battery
• Battery life: Up to 2 years
• Tamper protection: Yes (against opening and removal)
• Operating temperature: -10°C to +40°C
• Operating humidity: 20% to 80% (non-condensing)
• Application environment: Indoor
• Alarm output: Wireless signal to alarm panel
• Walk test mode: Yes
• LED indicator: Yes (for status and alarm)
• Housing material: ABS Plastic
• Colour: White

Tips

Install the detector at the recommended height and angle to avoid blind spots. Test the unit regularly using walk test mode to ensure it communicates correctly with your alarm panel. Replace the battery when the low-battery indication appears to maintain reliable operation.
