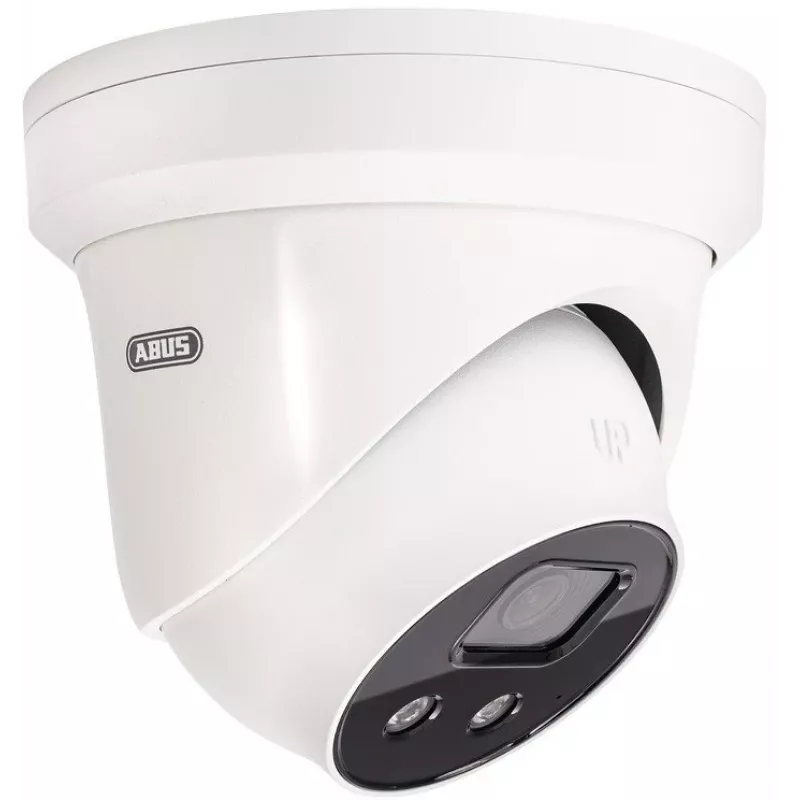

ABUS IPCB58511B cámara domo IP 8 MP 4K con objetivo de 4 mm, PoE, visión nocturna IR hasta 30 m, IP67/IK10, micrófono integrado

The ABUS IPCB58511B stands out in the 8 MP dome camera segment by combining a 4 mm fixed lens with a 120 dB WDR sensor and a rugged IP67/IK10 housing, delivering detailed surveillance in challenging light and weather conditions without additional enclosures. Its 4K resolution captures fine details like faces and license plates at a wider angle than typical varifocal models, while the integrated microphone adds an audio dimension often missing in compact domes.

Highlights

• 8 Megapixel (3840 x 2160) progressive scan CMOS for crisp 4K UHD video
• Fixed 4 mm lens with 88° horizontal field of view for broad coverage
• IR night vision up to 30 m with automatic IR-cut filter
• H.265, H.264, and MJPEG compression to optimize bandwidth and storage
• 120 dB Wide Dynamic Range for balanced images in high-contrast scenes
• Built-in microphone for one-way audio capture
• MicroSD card slot supporting up to 128 GB for edge storage
• IP67 weatherproof and IK10 vandal-resistant metal housing
• Power over Ethernet (IEEE 802.3af) or 12 V DC for flexible installation
• Smart analytics: motion detection, tampering alarm, line crossing, and intrusion detection

In daily use

Mount the IPCB58511B on a wall or ceiling and connect it to your PoE switch or injector—no separate power cable needed. The 4 mm lens is ideal for monitoring entrances, corridors, or small yards, capturing a wide area without fisheye distortion. At night, the IR LEDs illuminate up to 30 meters, and the camera automatically switches to black-and-white mode for clear footage. The built-in microphone records ambient audio, useful for verifying events. With H.265 encoding, you can store days of 4K video on a 128 GB microSD card or stream efficiently to an NVR. The IP67 rating means it withstands rain, dust, and temperature extremes from -30°C to +60°C, while the IK10 rating protects against impacts. Configure smart events to trigger alerts or recordings, reducing false alarms and manual monitoring.

Full specifications

• Sensor: 1/2.8" Progressive Scan CMOS
• Max resolution: 8 MP (3840 x 2160) at 20 fps
• Lens: Fixed 4 mm, F2.0, horizontal FoV 88°
• Minimum illumination: 0.008 lux (color), 0 lux (IR on)
• IR range: up to 30 m
• WDR: 120 dB
• Video compression: H.265, H.264, MJPEG
• Audio: Built-in microphone, G.711 compression
• Storage: MicroSD/SDHC/SDXC slot up to 128 GB
• Network: 1x RJ45 10/100 Mbps Ethernet
• Power: 12 V DC ±10%, PoE (IEEE 802.3af), max 7.5 W
• Ingress protection: IP67
• Vandal resistance: IK10
• Operating temperature: -30°C to +60°C
• Dimensions: Ø 111 mm x 94 mm (without bracket)
• Weight: approx. 600 g
• Smart features: Motion detection, tampering alarm, line crossing, intrusion detection

Final note

The ABUS IPCB58511B is a robust, high-resolution dome camera that excels in both indoor and outdoor environments, offering 4K clarity, smart analytics, and durable construction—all powered by a single PoE cable.
