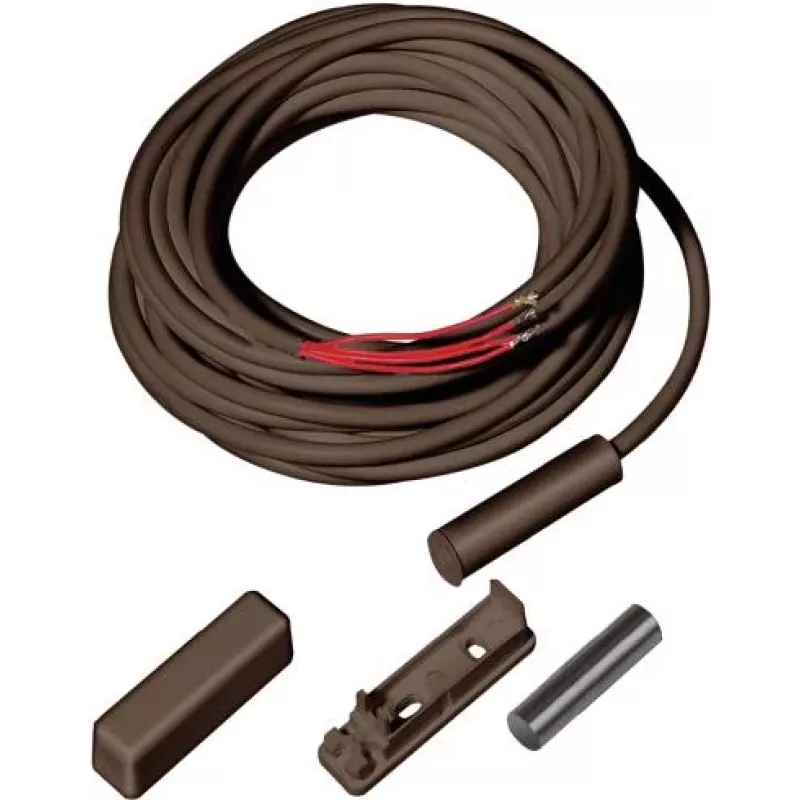

ABUS MK1010B sensor de contacto magnético con cable, marrón

Monitor doors and windows reliably with the ABUS MK1010B, a wired magnetic contact sensor that instantly detects unauthorized opening. Its normally closed reed switch integrates directly into existing alarm systems for dependable intrusion detection.

Who is it for

Security installers and homeowners seeking a discreet, surface-mounted sensor for indoor door and window monitoring on alarm panels.

Main features

• Wired connectivity for stable, tamper-resistant integration
• Normally closed (NC) reed switch contact
• Brown ABS housing blends with wooden frames
• VdS Class B and VSÖ certified for professional use

Specifications

• Type: Magnetic contact sensor
• Connectivity: Wired
• Contact configuration: Normally closed (NC)
• Housing material: ABS
• Colour: Brown
• Mounting: Surface mount, screw-on
• Application: Indoor
• Certifications: VdS Class B, VSÖ

Tips

Install on the fixed frame and moving part of the door or window, ensuring the magnet aligns with the sensor within the specified gap. Connect to a wired zone on the alarm panel and test operation before finalizing.
