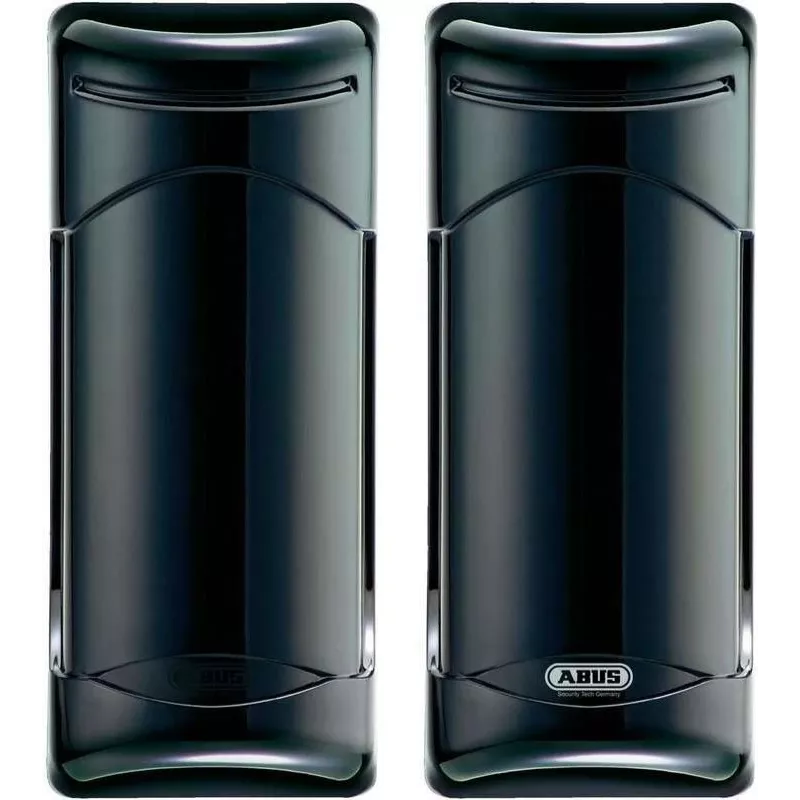

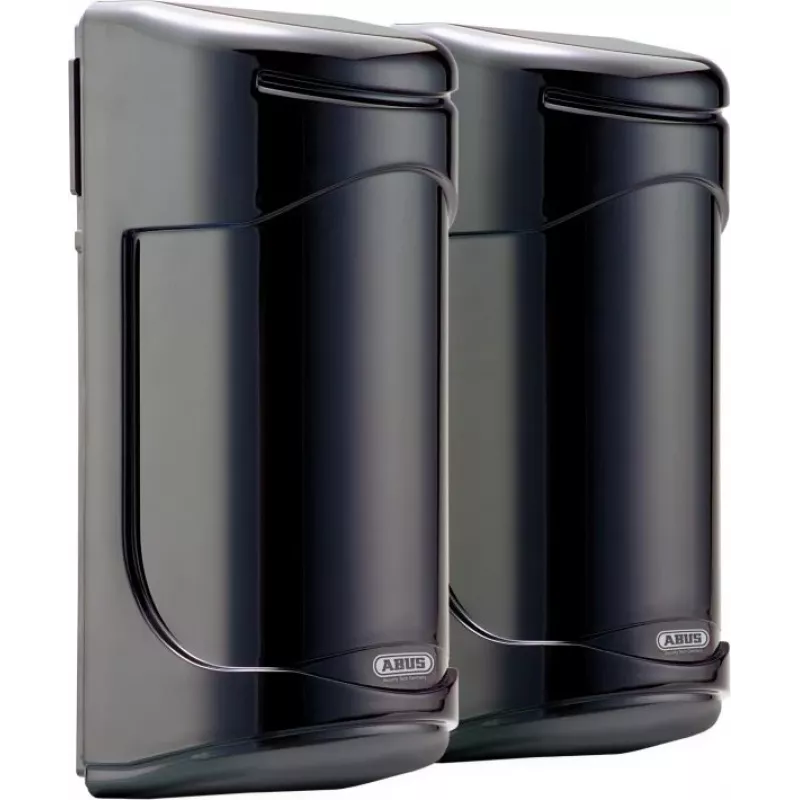

ABUS Security-Center Profiline barrera de infrarrojos, 30 m (LS2030)

Detect movement across a 30-metre perimeter with the ABUS Security-Center Profiline LS2030 Infrared Light Barrier. This through-beam sensor set delivers reliable intruder detection for both indoor and outdoor security applications, featuring a weatherproof IP55 housing and a pulsed infrared beam that resists false alarms.

Overview

The Profiline LS2030 consists of a sender and receiver pair that creates an invisible infrared curtain. When an object breaks the beam, the integrated relay output (NC/NO selectable) triggers a connected alarm system, gate controller, or monitoring device. With an operating range of 30 metres and an approximate 1.5° beam angle, it is ideal for gates, driveways, and building perimeters.

What stands out

• 30-metre detection range with pulsed infrared technology
• IP55 weatherproof housing for outdoor use
• Selectable NC/NO relay output (max. 1A @ 30V DC)
• Visual LED alignment aid for quick installation
• Optical synchronization between sender and receiver

Technical details

• Operating principle: Through-beam (sender & receiver)
• Technology: Pulsed infrared
• Operating voltage: 12-24V DC
• Current consumption: Max. 50 mA
• Response time: < 20 ms
• Protection rating: IP55
• Operating temperature: -25°C to +55°C
• Housing material: ABS plastic
• Mounting: Wall or pole mount
• Included: 1x sender, 1x receiver, mounting brackets

Our verdict

For robust perimeter protection, the Profiline LS2030 offers a long-range, weather-resistant solution that is both easy to align and dependable in triggering alarms. Its selectable relay output ensures compatibility with most security and automation systems.
