Accesorio para cables Rittal 4050.732 — Terminales (código de colores DIN)

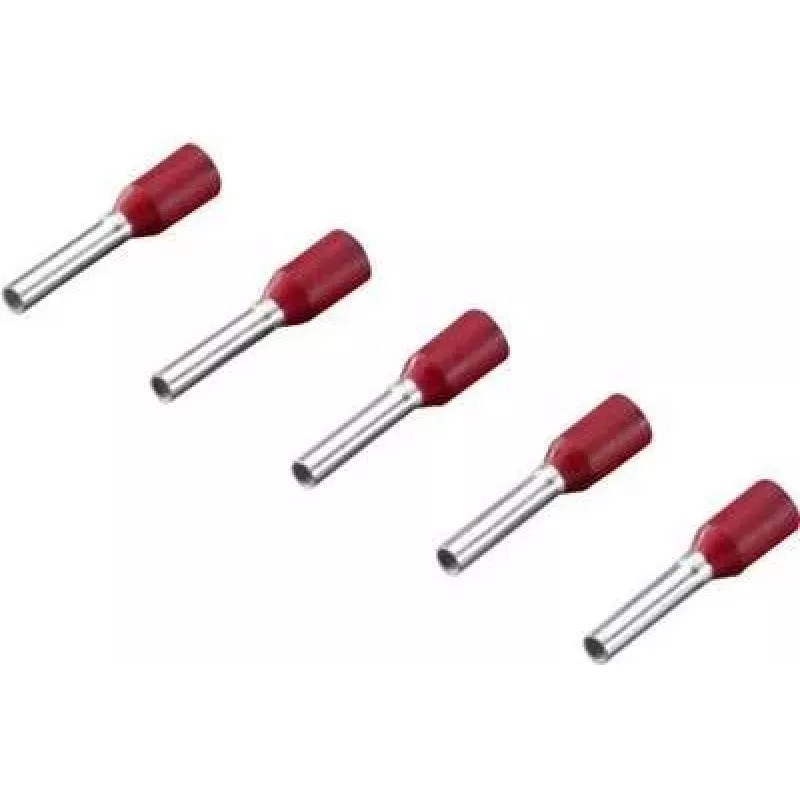

Rittal 4050.732 cable end ferrules are insulated ferrules produced to DIN colour-code identification for clear conductor marking. These ferrules are intended to terminate stranded conductors, improving the reliability of electrical contacts and facilitating neat, identifiable wiring in panels, control cabinets and industrial installations. The product supports standardized identification workflows and helps reduce connection errors during assembly and maintenance.

Advantages

Insulated ferrules manufactured to DIN colour-code provide consistent visual identification of conductors, which simplifies installation and troubleshooting. By compressing onto stranded conductors, the ferrules create a stable termination that improves contact quality in screw and spring-type terminals. The design reduces wire fraying, eases insertion into terminal points and contributes to repeatable, professional-looking wiring.

Suitable for

When it may not be suitable

These insulated ferrules are intended for terminating stranded conductors; they are not designed for use on solid single-core wires or for direct connection in applications requiring bare wire ends without insulation. They do not replace specialized crimp connectors intended for high-current busbars or mechanical splices where different connector types are required.

Key specifications

How to use

Strip the conductor to the appropriate length for the ferrule; insert the stranded conductor fully into the ferrule barrel so strands are contained within the insulation sleeve. Use a proper crimping tool sized for the ferrule and conductor cross-section to compress the ferrule onto the wire. After crimping, visually verify that the strands are secure and the colour-coded insulation is intact before inserting into the terminal and tightening as specified by the terminal manufacturer.

What to consider before purchase

Recommendations

Use a dedicated ferrule crimping tool and choose the correct ferrule size for the conductor to achieve secure, reproducible crimps. Maintain a consistent colour-code scheme across installations to speed maintenance and reduce wiring errors.
