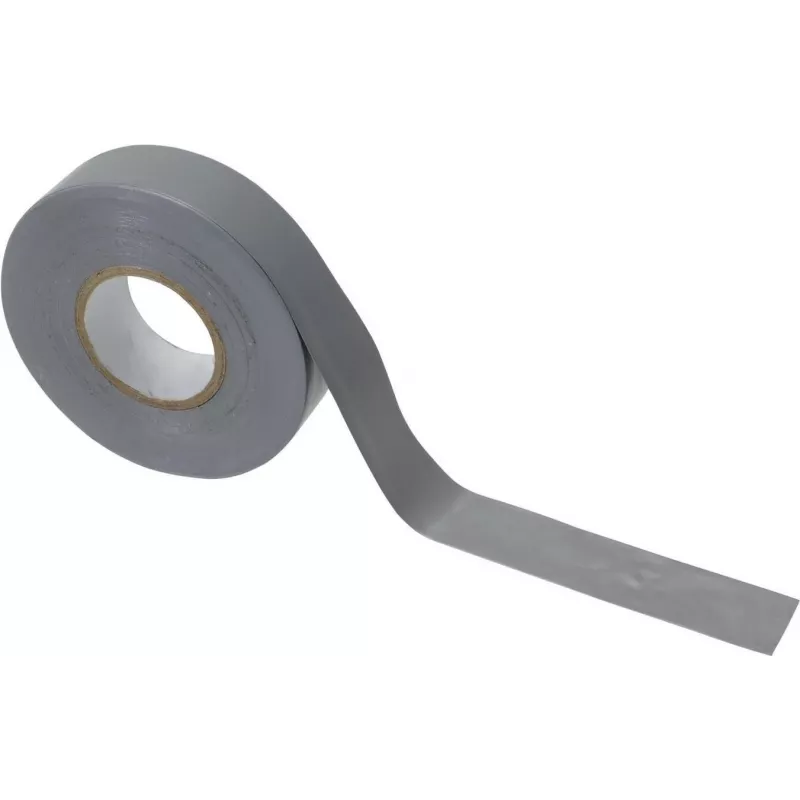

ZUBEHÖR Cinta aislante PVC gris 19 mm x 25 m (30005960)

Electricians and maintenance teams rely on this grey PVC insulation tape for daily wiring tasks in control cabinets, junction boxes, and cable harnesses. The tape unwinds smoothly from the 38 mm core and conforms tightly to irregular surfaces without lifting at the edges.

Key specifications

• Tape type: Electrical insulating tape
• Material: Polyvinyl chloride (PVC)
• Colour: Grey
• Width: 19 mm
• Length: 25 m
• Thickness: 0.15 mm
• Adhesive type: Rubber-based
• Dielectric strength: > 8 kV
• Operating temperature range: -10°C to +90°C
• Tensile strength: > 20 N/10mm
• Elongation at break: > 180%
• Adhesion to steel: > 1.8 N/10mm
• Flame retardant: Yes
• Voltage rating: Up to 600 V
• Standard compliance: IEC 60454-3-1 Type 5

Why choose it

The rubber-based adhesive provides immediate tack on copper and aluminium conductors, while the PVC backing resists abrasion and moisture. The tape remains flexible at low temperatures and does not become brittle during heat cycles.

Ideal use cases

• Insulating electrical splices and wire connections
• Bundling and harnessing cables in control panels
• Colour-coding circuits for identification
• Protecting cable ends from moisture and corrosion

Good to know

Each roll is individually wrapped to keep the adhesive clean. The tape meets IEC 60454-3-1 Type 5 for general-purpose electrical insulation.
