Acoplador de fibra óptica DeLOCK 86906 LC cuádruple hembra a LC cuádruple hembra multimodo violeta

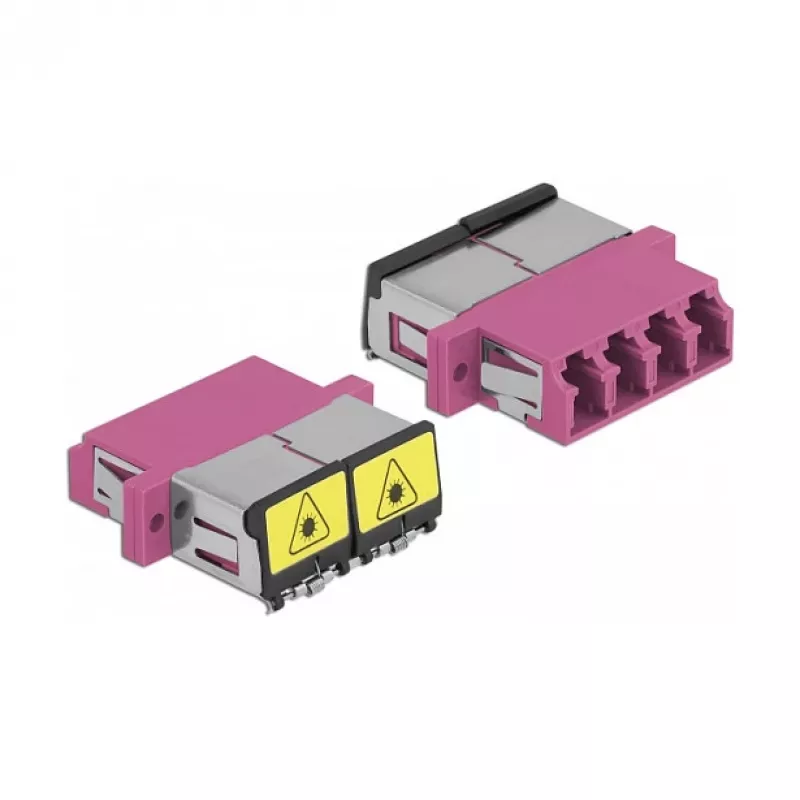

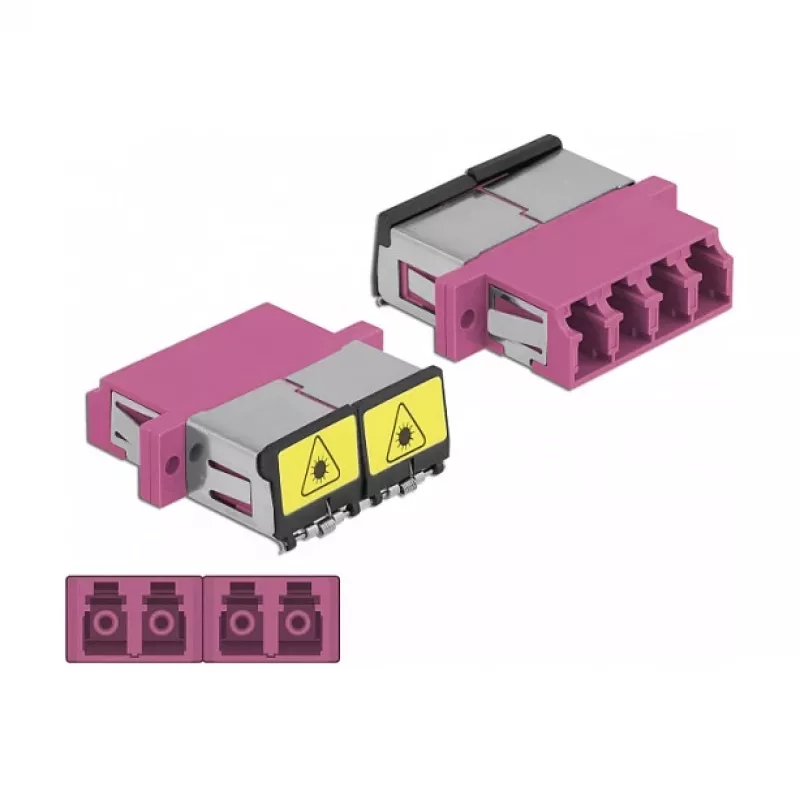

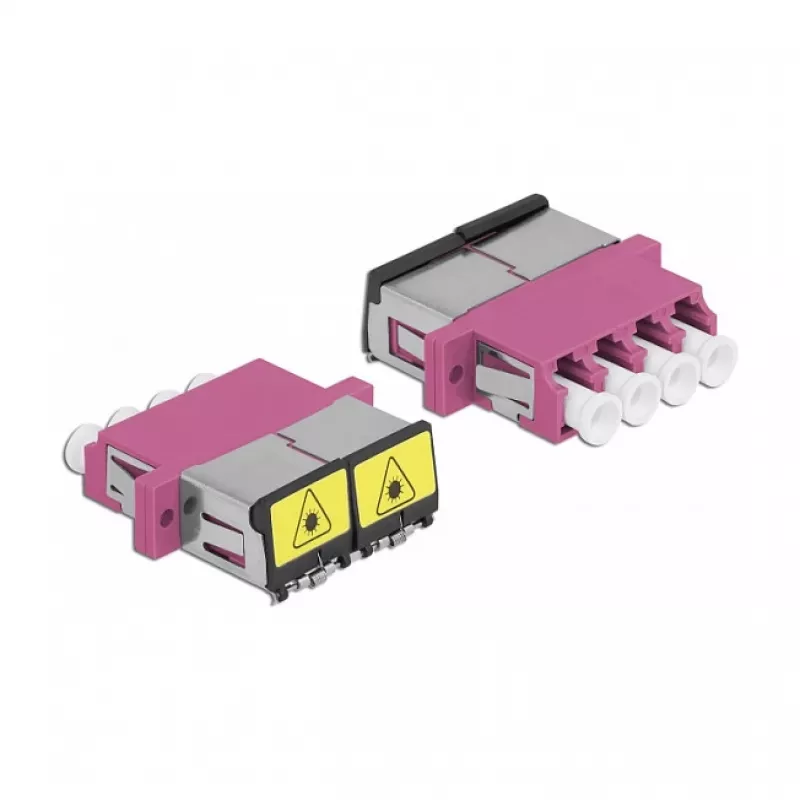

With the DeLOCK Optical Fiber Coupler 86906, LC Quad female connectors for multi-mode fiber can be joined quickly and reliably. The compact coupler (25.6 mm × 29.2 mm × 9.3 mm) in violet is designed for direct installation in fiber connection boxes, cabinets and patch panels and is supplied as a single unit.

Advantages

The coupling provides a straightforward mechanical connection between LC Quad female connectors while offering integrated flip protection against laser radiation. A dust cap is included to protect the sleeve and to keep the optical interface clean.

Suitable for

• Multi-mode fiber optic connections using LC Quad female connectors
• Mounting in connection boxes, network cabinets and patch panels
• High-speed data transmission and local network cabling

Key specifications

• Manufacturer: DELOCK
• MPN: 86906
• EAN: 4043619869060
• Connector type: LC Quad female to LC Quad female
• Fiber type: Multi-mode
• Dimensions (W × D × H): 25.6 mm × 29.2 mm × 9.3 mm
• Color: Violet
• Pack: 1 piece

How to use

Insert the LC Quad male connector of the optical fiber cable into the LC Quad female port of the coupler until it clicks into place. For installation in connection boxes, cabinets or patch panels, align the coupler with the mounting opening and secure it according to the enclosure or panel fasteners. Use the flip protection as intended to shield the optical interface from laser exposure when connectors are not mated.

Recommendations

Store and handle the coupler and dust cap in a clean environment; before mating connectors, ensure fiber endfaces are free of dust and contaminants. Use the included dust cap when the coupler is not in use to maintain interface cleanliness and optical performance.
