Acoplador de fibra óptica PCB SC simplex hembra a SC simplex hembra DeLOCK 86932

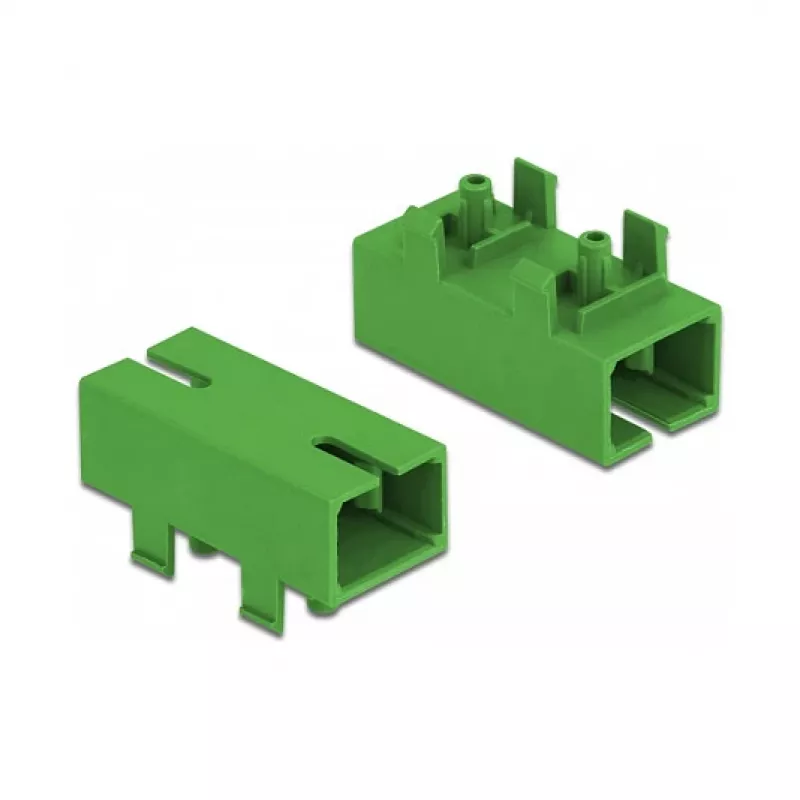

The DeLOCK Optic Fiber Coupler PCB SC Simplex female to SC Simplex female (MPN 86932, EAN 4043619869329) is a PCB-mounted fiber optic coupler designed for single-mode SC Simplex connections. The flat, green coupler measures 14.6 mm (width) × 27.4 mm (depth) × 12.8 mm (height) and allows a direct connection between fiber optic connectors and PCB-mounted circuitry.

Advantages

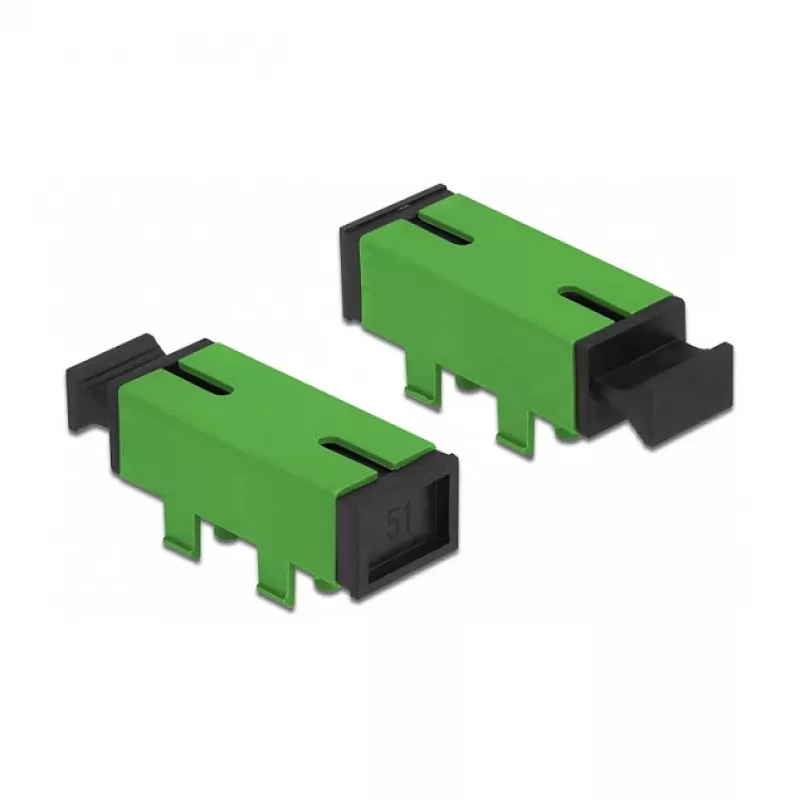

This coupler provides a compact, low-profile solution for integrating SC Simplex female fiber connections into printed circuit boards. The design supports reliable single-mode connections and includes a dust protection cap to keep the sleeve clean and prevent contamination.

Suitable for

• PCB-mounted single-mode SC Simplex fiber connections
• Telecommunication and data transmission equipment requiring SC connectors
• Fiber optic testing and patch panel integration on PCBs

Key specifications

• Connector type: SC Simplex female to SC Simplex female
• Mounting: PCB
• Application: single-mode fiber
• Dimensions: 14.6 mm (W) × 27.4 mm (D) × 12.8 mm (H)
• Color: green
• Brand: DELOCK
• MPN: 86932
• EAN: 4043619869329

How to use

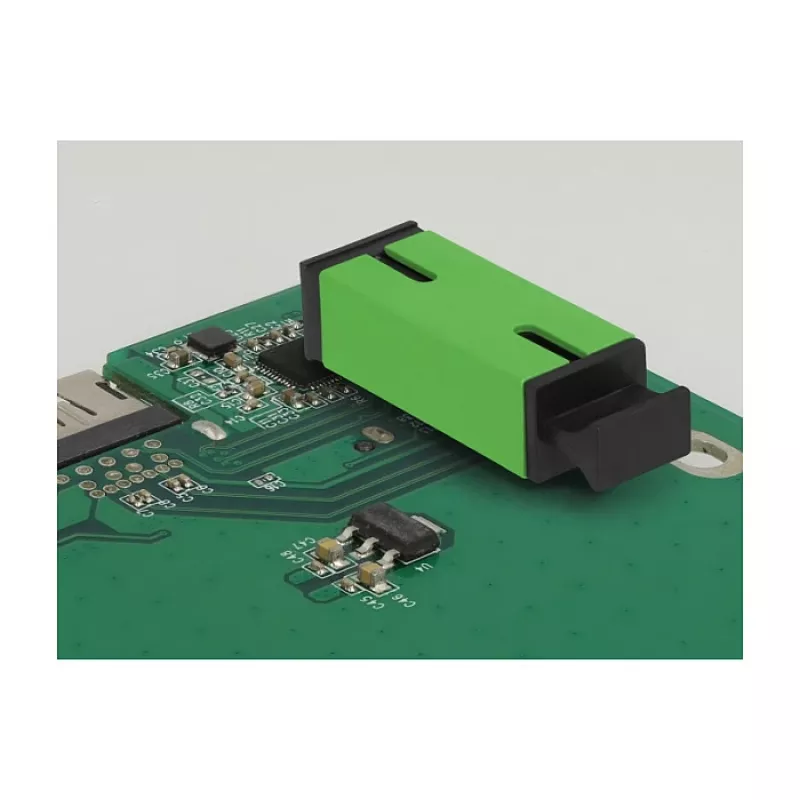

Mount the coupler onto the PCB using the designated footprint and solder points. Insert SC Simplex fiber connectors into each female SC port until they click into place, ensuring proper alignment of the ferrule. For single-mode connections, use appropriate single-mode fiber cables and follow standard fiber handling procedures to avoid bending or stress on the fibers.

Recommendations

Keep the supplied dust cap in place when the coupler is not connected to a fiber to prevent contamination. Clean connector end faces before mating and follow ESD precautions and PCB handling best practices during installation.
