ACT 3 metros cable de parcheo de fibra óptica LSZH monomodo 9/125 OS2 dúplex con conectores LC

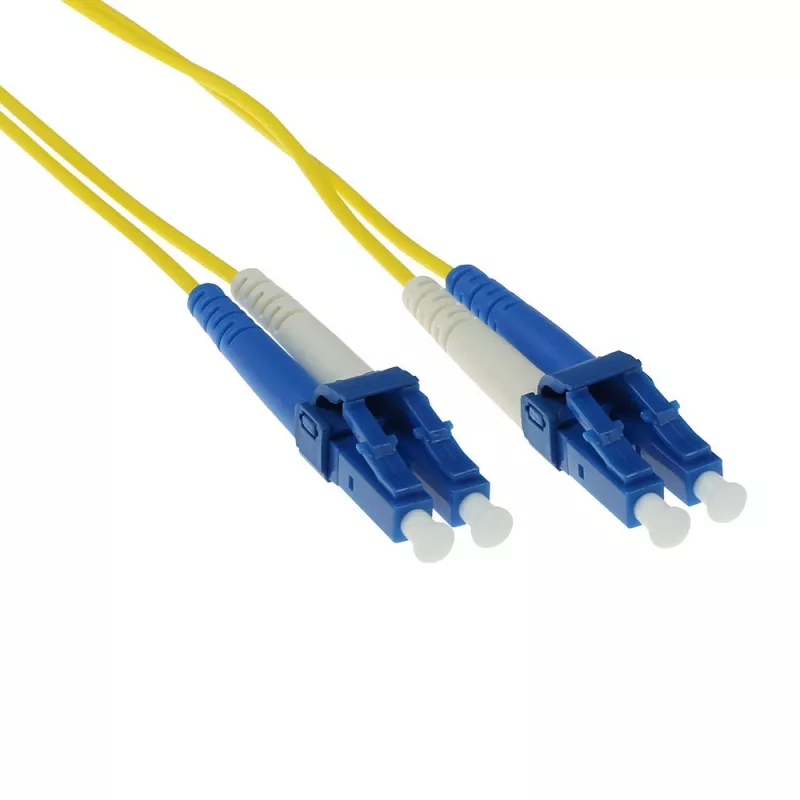

Duplex fiber patch cable with LC–LC connectors, yellow jacket and 9/125 µm singlemode fibers. The cable has two 3 mm cores and a PVC sheath; total length is 3.00 m. Designed for high-quality optical signal transmission between network devices.

Advantages

The duplex LC–LC configuration provides reliable bidirectional connections with low insertion loss. A 9/125 µm singlemode core supports long-distance, high-bandwidth links. The yellow outer jacket improves cable identification, and the 3.00 m length suits short interconnect runs. Construction with PVC sheath offers robust mechanical protection for standard indoor installations.

Suitable for

• Connecting switches, routers and transceivers in data centers
• Telecommunications equipment links
• Patch panels and optical distribution frames
• Short-distance singlemode fiber interconnects (3 m)

Key specifications

• Connector type: LC – LC duplex
• Core: 9/125 µm (singlemode)
• Cable diameter: 2 × 3 mm
• Sheath material: PVC
• Colour: Yellow
• Length: 3.00 m
• Quality: High Quality

How to use

Route the cable between the two devices making sure connectors are clean and dust-free before insertion. Align the LC connectors with the device ports and insert until they click into place. Avoid tight bends; maintain the cable minimum bend radius to prevent signal degradation. For removal, press the LC latch and pull straight out to avoid damaging the ferrule.

Recommendations

The cable is intended for indoor use in standard networking environments. For installations requiring reduced smoke and halogen-free materials, verify manufacturer material (LSZH) if needed; this specific construction uses a PVC sheath as stated in the product data.
