ACT 5 metros multimodo 50/125 OM4 cable de fibra óptica fanout 1 x conector hembra MTP – 4 x LC dúplex 8 fibras

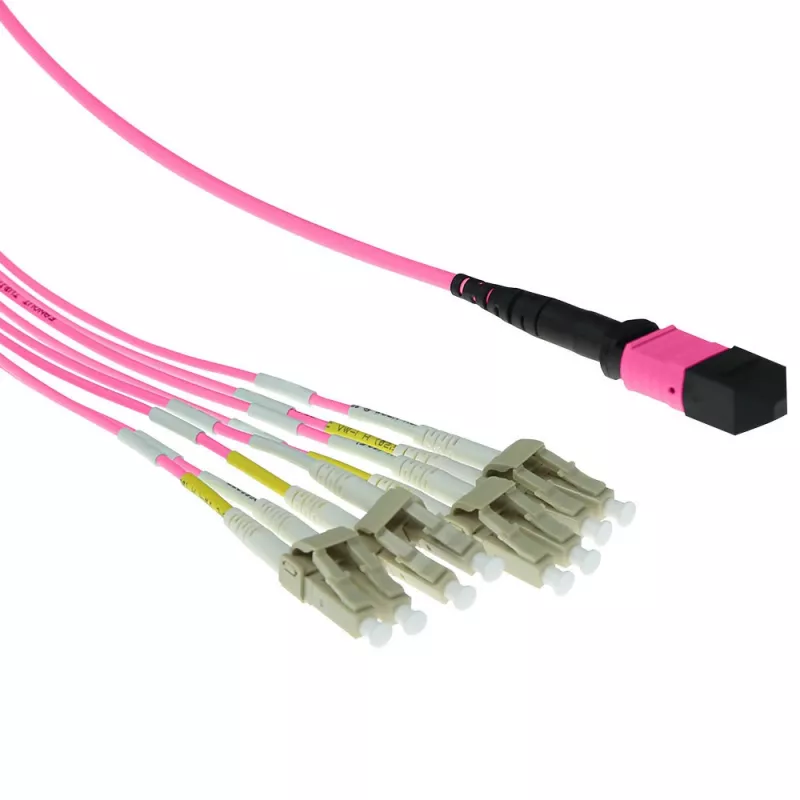

The ACT 5m Multimode OM4 patch cable combines a single MTP female connector with four LC duplex connectors, carrying 8 fibers in a compact 3 mm cable. Designed for high-speed data transmission in data centers and high-performance networks, the cable uses 50/125 µm OM4 multimode fiber to support QSFP+ 40G and QSFP28 100G transceivers while keeping insertion loss low through MTP® US Conec connectors.

Advantages

Ultra-compact construction packs eight fibers into a 3 mm cable for space-efficient trunking and patching. The use of MTP® US Conec connectors provides consistently low loss and reliable optical performance. OM4 multimode fiber (50/125 µm) supports high bandwidth and is suited to 40G and 100G short-reach applications. The fanout design with one MTP and four LC duplex connectors simplifies deployment between MTP trunks and LC-based equipment.

Suitable for

• Data center trunking and high-density patch panels
• Connections between MTP backbone cables and LC-based transceivers or patching
• Short-reach 40G and 100G links using QSFP+ and QSFP28 optics
• High-performance networks requiring OM4 multimode fiber

Key specifications

• Length: 5 m
• Fiber type: Multimode OM4, 50/125 µm
• Connectors: 1 x MTP female to 4 x LC duplex (total 8 fibers)
• Cable diameter: 3 mm (8-fiber)
• Compatible transceivers: QSFP+ (40G), QSFP28 (100G)
• Brand: ACT, MPN: RL7845, EAN: 8716065029871

How to use

Route the 3 mm MTP trunk to the intended patching location and plug the MTP female connector into the corresponding MTP cassette, adapter or transceiver panel. Fan out the four LC duplex connectors and insert them into LC ports on switches, transceivers or patch panels. Ensure connector endfaces are clean before mating and follow standard handling practices to avoid bending the cable below its minimum bend radius.

Recommendations

Use with compatible MTP® US Conec ports and QSFP+/QSFP28 multimode transceivers. Clean connectors before installation and avoid tight bends; for reliable high-speed links, keep distances within OM4 multimode specifications for 40G/100G short-reach applications.
