ACT azul 10 metros F/UTP CAT5E cable de red con conectores RJ45

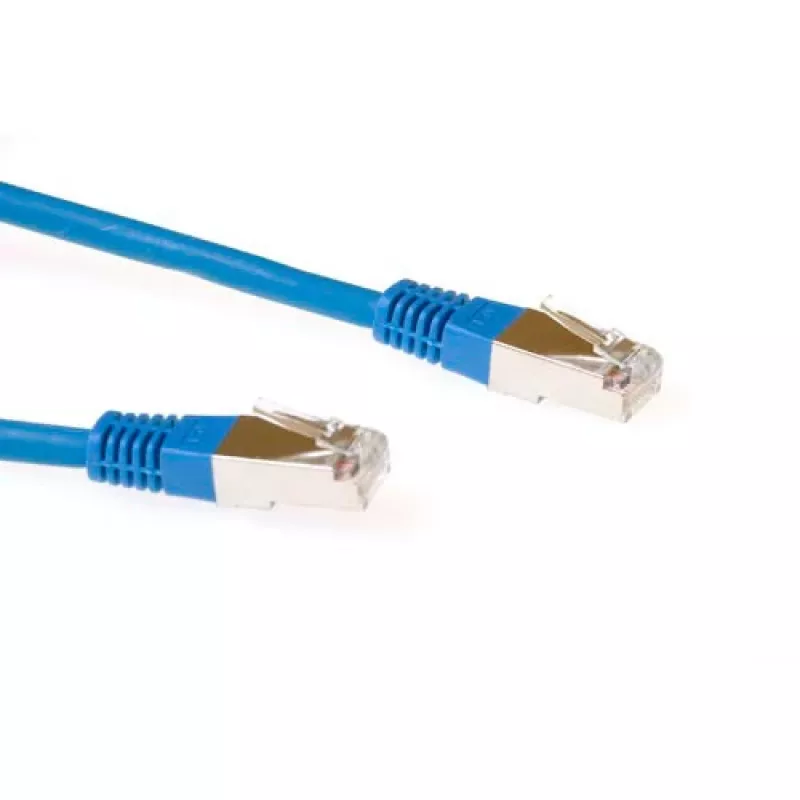

The ACT Blue 10 meter F/UTP CAT5E patch cable IB7610 provides a 10 m connection with RJ45 connectors on both ends for linking network devices where extended reach is required. Constructed as F/UTP (foil screened, unshielded twisted pair) CAT5e cable with an LSZH sheath and 50 µ gold-plated contact surfaces, it is designed to support high-speed data transmission for typical Ethernet applications while maintaining a professional appearance in blue (Pantone 292C).

Advantages

The cable combines foil screening with unshielded twisted pairs to reduce electromagnetic interference in mixed-cable environments. Gold-plated contacts (50 µ) on the RJ45 plugs provide reliable contact conductivity and corrosion resistance. An LSZH (low smoke zero halogen) sheath reduces toxic emissions in case of fire and is suitable for installation in indoor, public, or confined spaces. The 10 m length enables flexible device placement without additional patch panels or repeaters for short to medium runs.

Suitable for

• Connecting desktop PCs, laptops and network switches at distances up to 10 m
• Home or office Ethernet networks using CAT5e standards
• Environments where reduced smoke and halogen emissions are required
• Structured cabling segments and temporary or permanent patch connections

Key specifications

• Cable type: F/UTP CAT5e (foil screened, UTP pairs)
• Length: 10 m
• Connectors: RJ-45 to RJ-45
• Conductor size: AWG 26
• Contact plating: 50 µ gold
• Sheath material: LSZH (low smoke zero halogen)
• Colour: Blue (Pantone 292C)

How to use

Plug one RJ45 connector into the network port of your source device (for example a router, switch or PC) and the other RJ45 connector into the target device. Ensure connectors click into place and that both devices are configured for the same network settings. Route the cable to avoid sharp bends and mechanical stress; maintain the minimum bend radius recommended for AWG26 cables and avoid running parallel to high-voltage power lines to reduce interference. For permanent installations, secure the cable with appropriate clips or cable management accessories compatible with LSZH sheathing.

Recommendations

Use the cable for CAT5e-rated Ethernet links up to 10 m in length and verify link speed and duplex settings after installation. For environments with high electromagnetic interference or longer runs, consider shielded cabling systems or higher category cables. Avoid excessive pulling force on connectors during installation and keep the contact surfaces free of dust and debris to ensure optimal connection quality.
