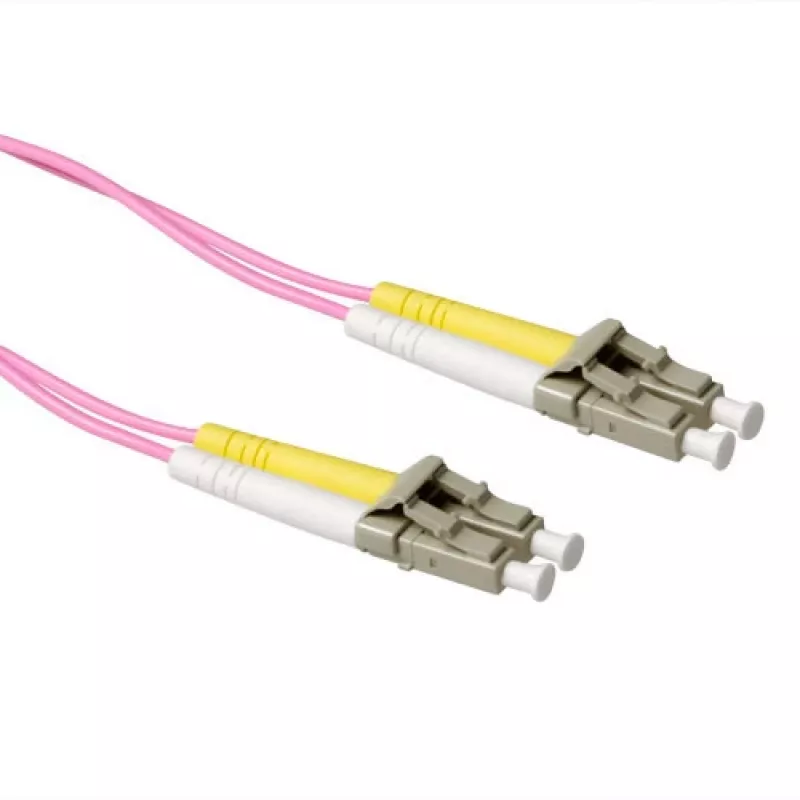

ACT Cable de conexión de fibra óptica multimodo LSZH 50/125 OM4 dúplex de 25 metros con conectores LC

The ACT 25 meter LSZH Multimode 50/125 OM4 fiber patch cable is a duplex assembly with LC connectors designed for high-speed data transmission in data centres and enterprise networks. Constructed with OM4 multimode fiber (50/125 µm) and an LSZH jacket, the cable provides reduced smoke and zero halogen emissions for improved safety in enclosed environments. Each cable is supplied with an individual test report covering insertion loss (IL) and return loss (RL), and the end-faces are 100% inspected to ensure connector quality.

Advantages

Laser-precision cleaving and Grade A‑m fiber deliver consistent optical performance. UPC-polished connectors reduce back-reflection, and the LSZH outer jacket minimizes harmful emissions in case of fire. Individual IL and RL test reports plus 100% end-face inspection provide traceable quality verification for each cable.

Suitable for

• Data centre interconnects and rack-to-rack connections
• High-performance LAN and SAN environments
• Structured cabling in offices and server rooms where low-smoke, zero-halogen materials are required

Key specifications

• Type: Duplex multimode fiber patch cable
• Fiber: OM4 multimode, 50/125 µm
• Length: 25 m
• Connectors: LC duplex
• Polish: UPC
• Jacket: LSZH (Low Smoke Zero Halogen)
• Quality control: Individual IL and RL test report; 100% end-face inspection

How to use

Route the ACT 25 m LSZH Multimode 50/125 OM4 patch cable between LC-compatible ports, avoiding sharp bends and excessive tensile stress. Secure the cable with appropriate cable management to prevent kinking and maintain bend radius recommended for multimode fiber. Connect LC duplex plugs to corresponding LC ports, observing transmit/receive orientation for full-duplex links. Use the supplied test report to verify IL and RL values if required during installation or commissioning.

Recommendations

Handle connectors by the boot or connector body and keep protective caps on unused ends. Clean end-faces before mating and follow standard multimode fiber handling and storage practices. For permanent installations in enclosed or public areas, confirm compliance with local fire and safety regulations regarding LSZH cabling.
