ACT Cable de fibra óptica monomodo 9/125 OS2 LSZH de 1 metro dúplex con conectores SC y ST

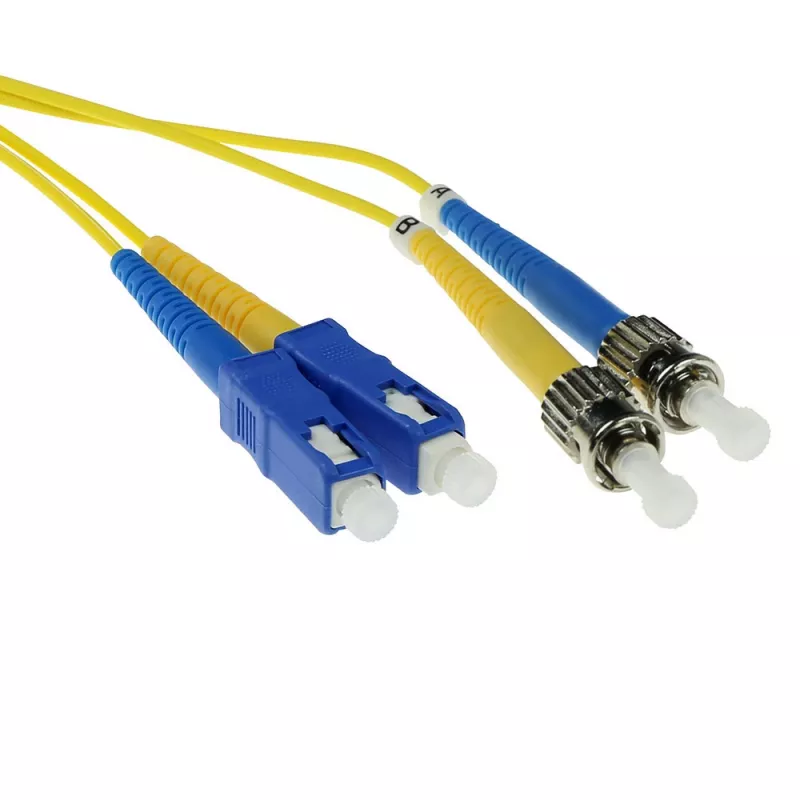

ACT duplex fiber patch cable, 1 meter length, singlemode 9/125µm. The cable is yellow with two 3 mm cores and comes with one SC and one ST connector. The outer sheathing is PVC and the cable is designed for high-quality optical signal transmission in networking and telecom environments.

Advantages

The duplex design provides two optical channels in a single cable for simultaneous transmit and receive paths. Singlemode 9/125µm fibre supports long-distance, low-attenuation data transfer. The combination of SC and ST connectors offers compatibility with a variety of network devices and patch panels. The yellow jacket and durable PVC sheath aid identification and basic mechanical protection.

Suitable for

• Data centre patching and rack connections
• Telecommunications links and network backbones
• Interconnection between equipment with SC and ST ports

Key specifications

• Type: Duplex singlemode fiber patch cable
• Length: 1 meter
• Fibre core: 9/125µm (OS1 listed in source)
• Connectors: SC - ST
• Colour: Yellow
• Diameter: 2 x 3 mm
• Sheath: PVC
• Quality: High Quality

How to use

Route the cable between the two devices, ensuring minimum bend radius is respected for singlemode fibre. Clean connector endfaces before mating to avoid signal loss. Insert the SC connector into the corresponding SC adapter or port and the ST connector into an ST port or adapter; secure connections as required by your installation. When removing, pull by the connector body, not the cable jacket.

Recommendations

For installations in confined or public spaces where low smoke and halogen-free materials are required, consider choosing an LSZH-sheathed variant. Regularly inspect and clean connector endfaces to maintain optimal optical performance.
