ACT Cable DisplayPort activo óptico de 50 metros conector DisplayPort macho - conector DisplayPort macho

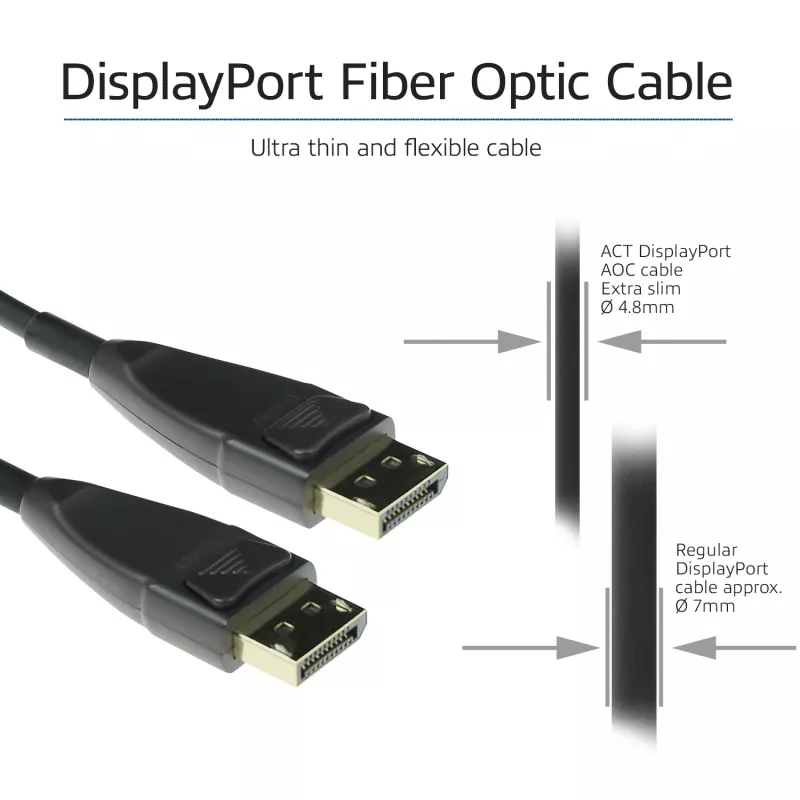

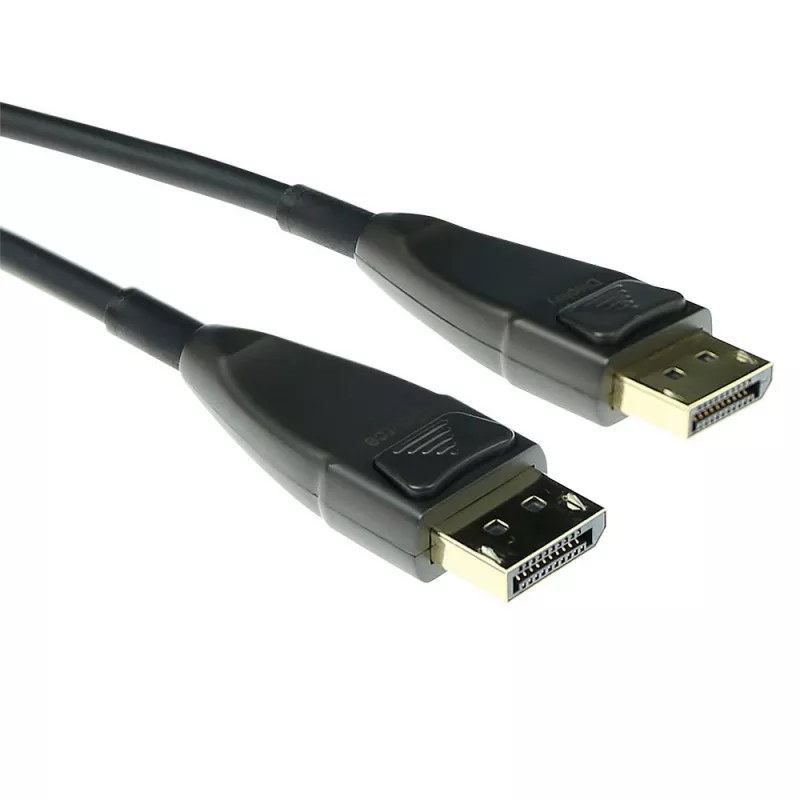

The ACT DisplayPort Active Optical Cable (AOC) AK4035 is a 50 m DisplayPort male-to-male hybrid cable that combines multimode optical fiber and copper conductors to transmit high-quality video and audio over long distances without data loss. Supplied on a coil, the cable remains flexible and straightforward to install, and supports DisplayPort 1.2a features and HDCP content protection.

Advantages

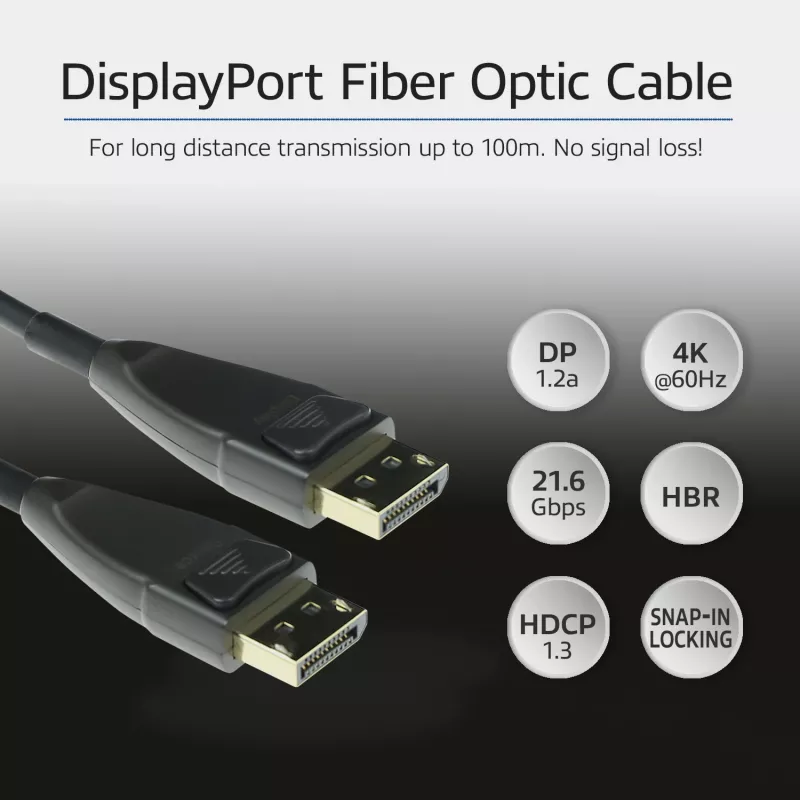

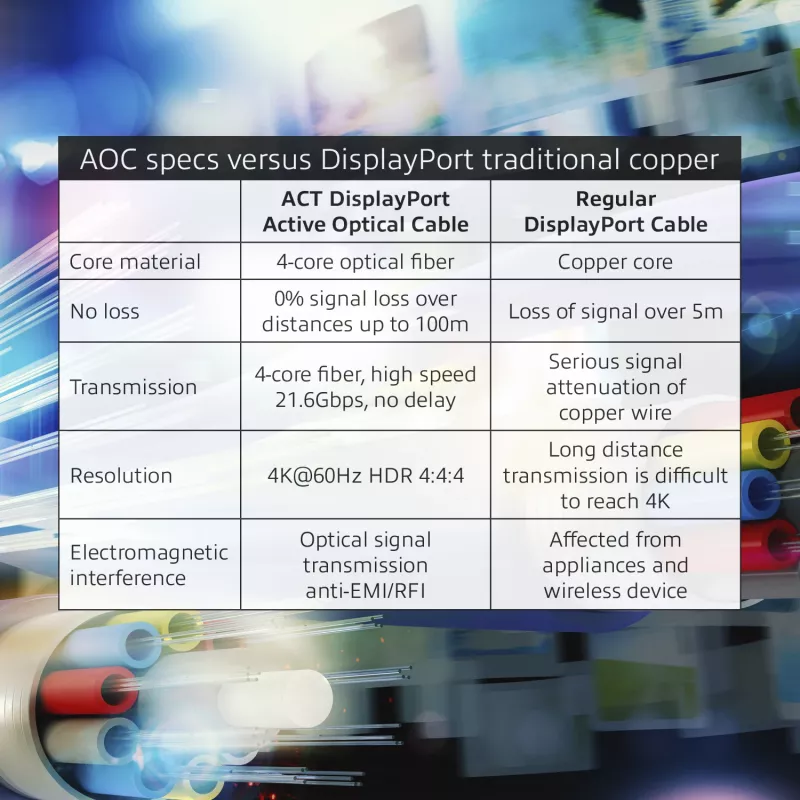

This DisplayPort Active Optical Cable supports up to 4K@60Hz with 4:4:4 chroma and uses HBR signaling with per-lane rates up to 5.4 Gbps (total bandwidth up to 21.6 Gbps). The hybrid construction transmits AUX and hot-plug detection over copper while carrying high-speed video and audio over optical fiber, enabling stable long-distance connections up to 50 m and minimizing signal degradation. The cable is plug-and-play and compatible with devices that implement DP1.2a and HDCP 1.1/1.3.

Suitable for

Key specifications

How to use

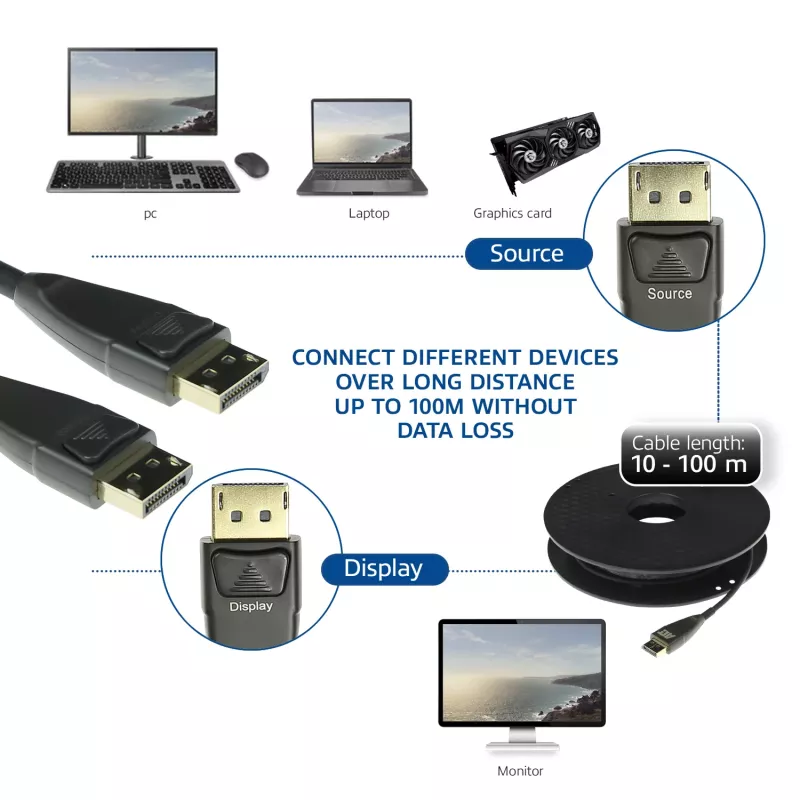

Connect the DisplayPort male plug on one end of the ACT AK4035 cable to the DisplayPort output of your source device (PC, laptop, media player) and the other DisplayPort male plug to the DisplayPort input of the display device (monitor, projector). Ensure connectors are fully seated. The cable is plug-and-play; the connected devices should negotiate resolution and protected content automatically. For protected content, make sure source and display support HDCP 1.1 or 1.3 as required.

Recommendations

Route the cable avoiding tight bends and extreme stress on the connectors. Use the supplied coil for storage when not in use. For optimal performance at 4K@60Hz, verify that both source and display support DisplayPort 1.2a and the required HDCP version. Do not expose the cable to liquids or temperatures outside the manufacturer's recommended operating range.
