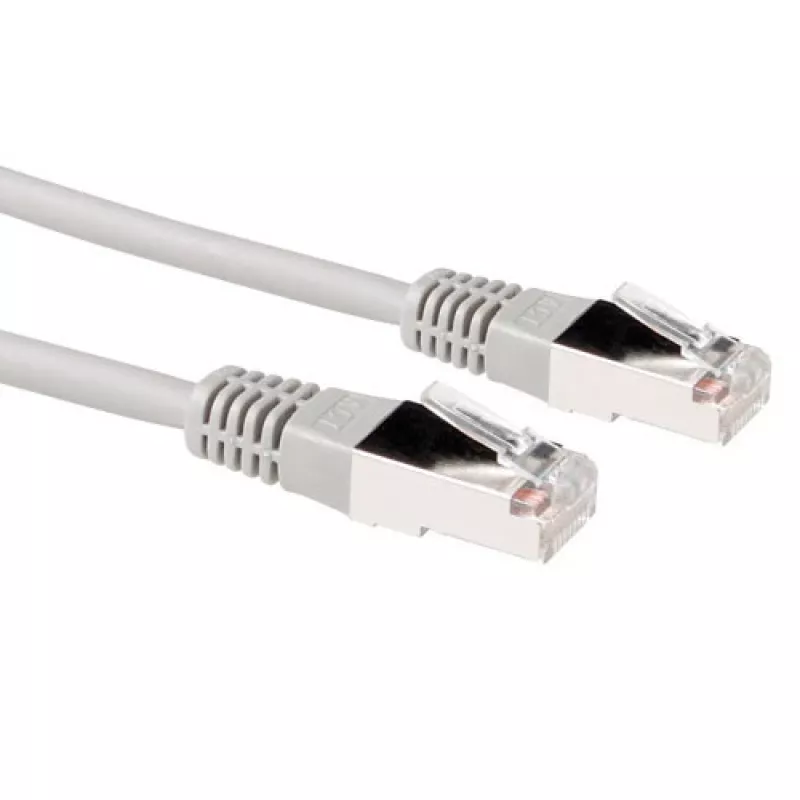

ACT gris 10 metros cable de red LSZH F/UTP CAT5E con conectores RJ45

The ACT FB2010 is a 10 m networking cable built to provide reliable data transmission for home and office networks. It uses Cat5e F/UTP (FTP) construction with full copper AWG#26 conductors, 50 µ gold-plated RJ-45 contacts and an LSZH outer sheath to reduce toxic gas emission in case of fire.

Advantages

The cable features full copper AWG#26 conductors and 50 µ gold-plated RJ-45 contacts. It is manufactured as FTP (F/UTP) Cat5e and 100% tested for quality. The grey LSZH sheath (Pantone Cool Grey 8C) provides lower smoke and zero halogen properties while the cable supports a bandwidth of 100 MHz.

Suitable for

• Connecting computers, routers and switches in home networks
• Office LAN installations requiring Cat5e performance
• Environments where reduced smoke and halogen-free jacket is preferred (e.g., confined or poorly ventilated spaces)

Key specifications

• Cable length: 10 m
• Cable type: FTP (F/UTP) Cat5e
• Conductors: AWG#26, full copper
• Connectors: RJ-45 (both ends)
• Contacts: 50 µ gold-plated
• Sheath: LSZH (Pantone Cool Grey 8C)
• Bandwidth: 100 MHz
• Retail number (old): 192-950

How to use

Plug each RJ-45 connector into the corresponding network ports on your devices (computer, router, switch). Ensure connectors are fully inserted until the latch clicks. Route the cable to avoid sharp bends and mechanical stress; maintain gentle curves and avoid crushing. The cable supports typical Cat5e network setups and is compatible with standard Ethernet equipment.

Recommendations

For best performance, keep cable runs within recommended lengths for Cat5e (up to 100 m for a single Ethernet link) and avoid running parallel to high-voltage power lines to reduce interference. Use the LSZH jacket where lower smoke and halogen-free materials are required, such as in enclosed or poorly ventilated environments.
