ACT negro 1,5 m cable de parcheo S/FTP CAT6A IDC 4PPoE / PoE++ 100W LSZH con protección de lengüeta y conectores RJ45

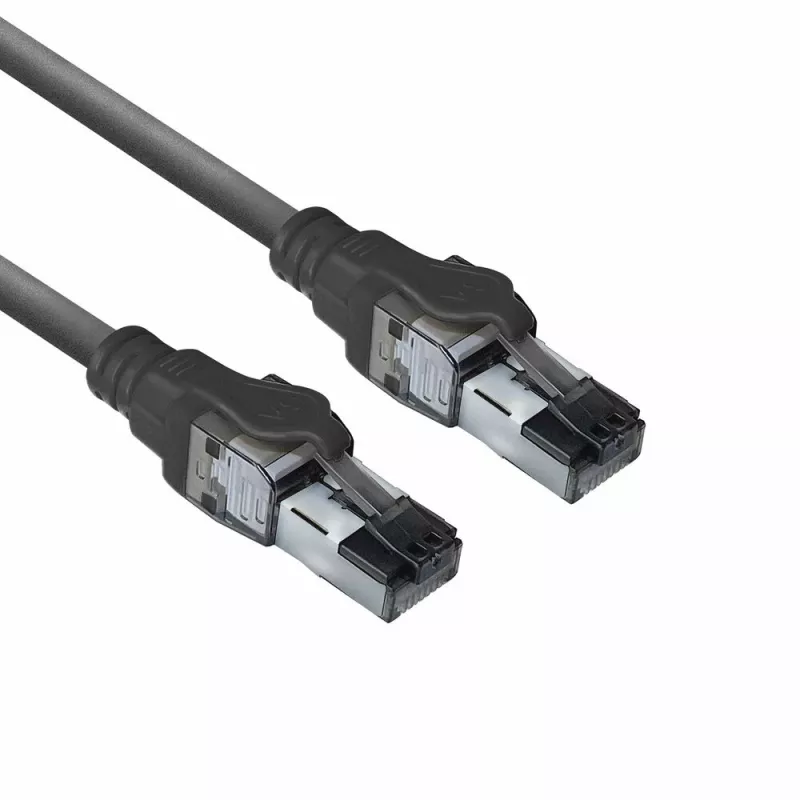

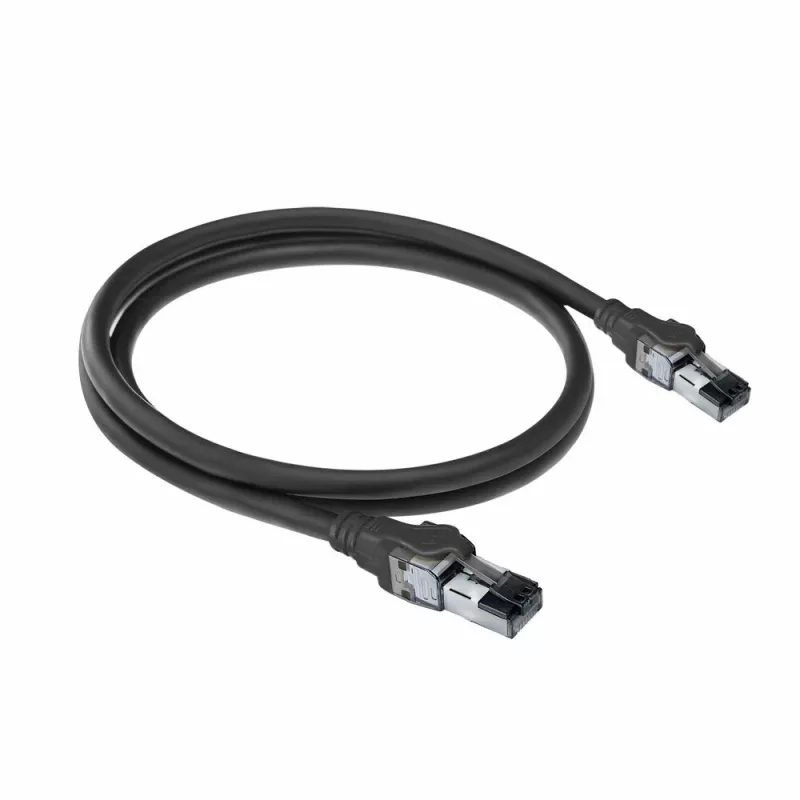

The ACT Black 1.5m S/FTP CAT6A patch cable provides a plenum-rated LSZH jacket, full copper 24AWG conductors and 50µ gold-plated RJ45 contacts fitted with Insulation Displacement Contacts (IDC). Compliant with ANSI/TIA-568.2-D, this 1.5 meter black cable is designed for high-speed data transmission and for 4PPoE / PoE++ type 4 applications up to 100 W between switches and powered devices such as security cameras or access points.

Advantages

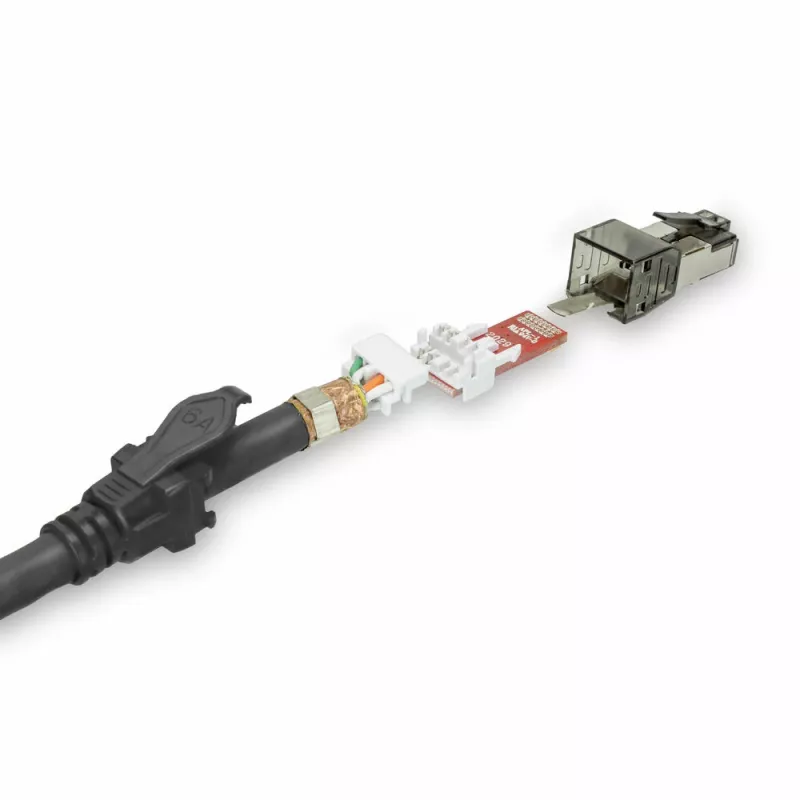

The S/FTP shielding reduces electromagnetic interference for reliable data transfer. IDC-mounted 50µ gold-plated contacts offer lower contact resistance and improved long-term stability compared with insulation-piercing contacts, which is important in 4PPoE 100 W installations. The LSZH jacket limits smoke and halogen emissions, making the cable suitable for plenum spaces and raised access floors.

Suitable for

• Powering and connecting security cameras using 4PPoE / PoE++ up to 100 W
• Connecting wireless access points that require high-power PoE
• Short-distance patching between PoE network switches and powered devices (1.5 m)

Key specifications

• Standard: ANSI/TIA-568.2-D, CAT6A
• Cable type: S/FTP (shielded, foil-wrapped pairs with overall braid)
• Length: 1.5 m
• Conductor: solid copper, 24 AWG
• Contacts: 50 µ gold-plated RJ45 with IDC termination
• PoE support: 4PPoE / PoE++ type 4 up to 100 W
• Jacket: LSZH (Low Smoke Zero Halogen), suitable for plenum and raised floors
• Colour: Black

How to use

Connect one RJ45 end to the PoE-capable network switch and the other end to the powered device (for example an IP camera or access point). Ensure both devices support 4PPoE / PoE++ and that cable length and installation conditions meet the power and safety requirements. Avoid tight bends and excessive pulling force during installation to preserve shielding and IDC contacts.

Recommendations

For optimal performance in 4PPoE 100 W deployments, use this CAT6A S/FTP cable for short patch runs (1.5 m) between switches and powered devices, maintain proper cable bend radius, and route cables away from strong electromagnetic sources.
