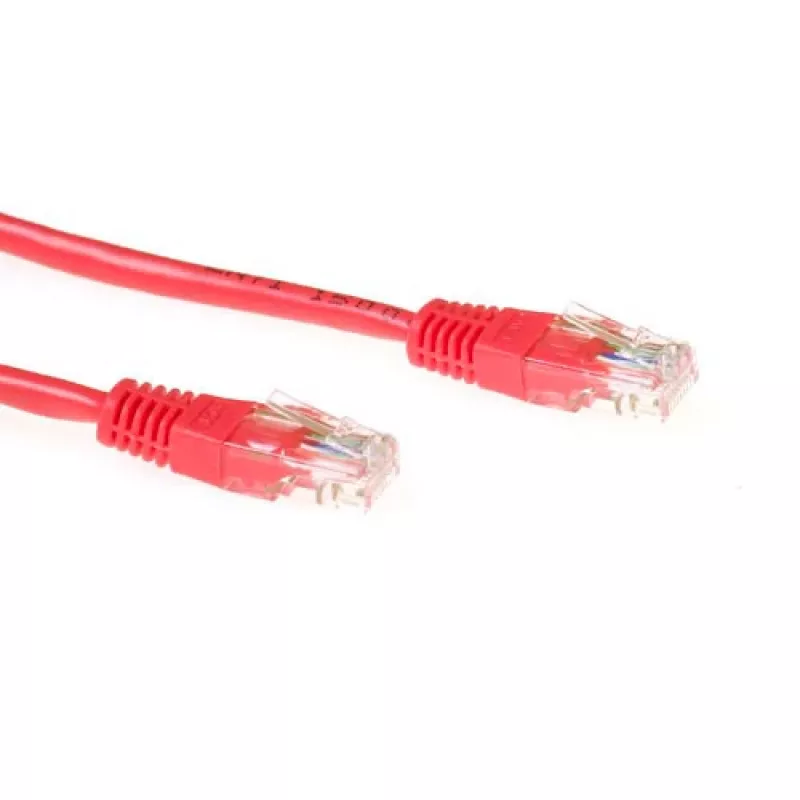

ACT rojo cable de parcheo U/UTP CAT5E de 10 metros con conectores RJ45

The ACT Red 10 meter U/UTP CAT5E RJ45 patch cable is a 10 m network cable designed for Ethernet connections. It uses U/UTP CAT5E construction with AWG#24 conductors and a PVC sheath, offers a bandwidth of 100 MHz and comes in RAL 3031 red. The cable is fitted with RJ45 connectors with gold-plated contacts for reliable conductivity and compatibility with standard Ethernet devices.

Advantages

The cable provides stable data transmission up to 100 MHz and is suitable for typical CAT5E network setups. AWG#24 conductors ensure proper signal carrying capacity for copper twisted-pair cabling, while the PVC sheath offers basic mechanical protection. Gold-plated RJ45 contacts reduce corrosion and improve contact reliability. The 10 m length gives flexibility for workplace and home installations, and the red RAL 3031 jacket makes the cable easy to identify in cable runs.

Suitable for

• Ethernet connections at up to CAT5E performance
• Office and home network patching between switches, routers and workstations
• Patch panels and structured cabling where a visible colored cable is required

Key specifications

• Length: 10 m
• Cable type: U/UTP CAT5E
• Bandwidth: 100 MHz
• Conductors: AWG#24
• Sheath material: PVC
• Connector: RJ45 with gold-plated contacts
• Colour: Red (RAL 3031)
• Brand: ACT
• MPN: IB5510
• EAN: 8716065134612

How to use

Connect one RJ45 connector to the network device (switch, router or network card) and the other end to the corresponding port on the remote device or patch panel. Ensure connectors are fully inserted and latched. Route the cable to avoid sharp bends and sources of electrical interference. For structured installations, secure the cable along cable trays or ties without excessive compression of the sheath.

Recommendations

Use this cable for standard CAT5E Ethernet links up to 100 MHz and typical 100/1000 Mbps network environments. Avoid exposure to direct sunlight or temperatures outside the PVC rating, and do not use where fire-rated or low-smoke halogen-free cabling is required.
