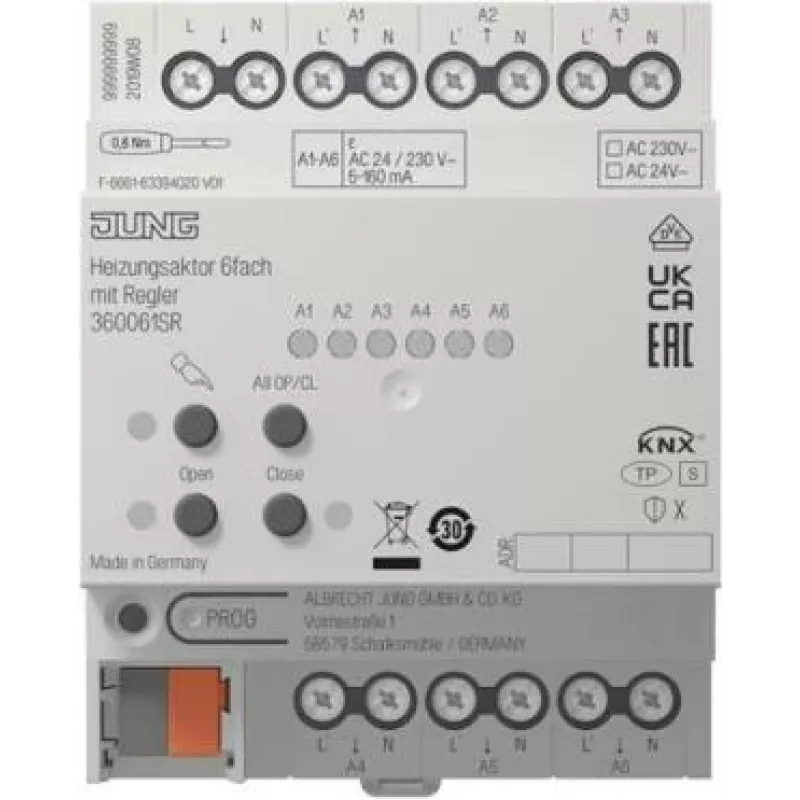

Actuador de calefacción KNX Jung 6 canales con regulador 36006 1S R, montaje en carril DIN

Jung KNX heating actuator 6-channel with regulator 36006 1S R is a compact DIN-rail module designed to control up to six heating outputs via the KNX bus. The unit integrates switching and proportional regulation functions to operate thermostatic valve actuators, zone valves or boiler control inputs as part of a building automation system. Intended for installation in distribution cabinets, the device supports centralised management of multiple heating zones in residential and light-commercial environments.

Advantages

The actuator combines six independently addressable channels with a built-in regulator, reducing the need for separate control modules and simplifying wiring. DIN-rail mounting ensures a compact and standardised installation in electrical distribution cabinets. Integration with KNX offers interoperable communication with thermostats, sensors and higher-level logic, enabling flexible control strategies such as setpoint tracking, night setback and seasonal adjustments.

Suitable for

Key specifications

How to use

Install the actuator on a standard DIN rail inside the electrical distribution cabinet and connect each channel to the respective actuator or valve. Connect the KNX bus to the device and assign individual group addresses using ETS software. Configure the integrated regulator parameters, such as control type and setpoints, according to the heating system layout and valve characteristics. After commissioning, monitor and adjust setpoints and schedules through KNX thermostats or central automation logic.

Recommendations

For reliable operation, verify actuator compatibility with valve stroke and supply voltage requirements before installation. Use ETS for precise group address assignment and parameter tuning. Locate the module in a dry, ventilated cabinet away from strong electromagnetic interference sources. Regularly inspect wiring and terminal connections during routine maintenance.
