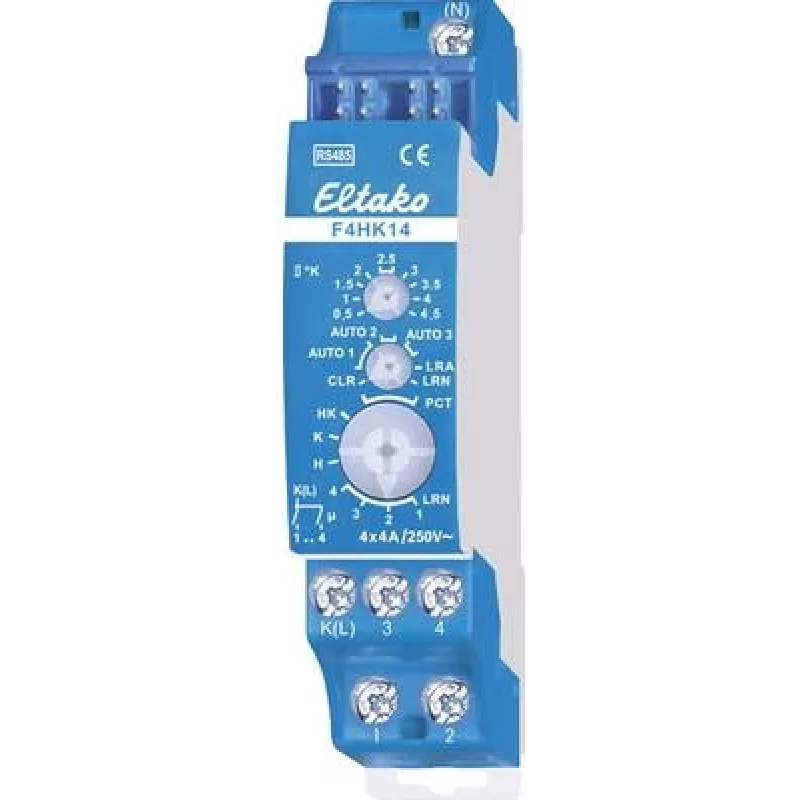

Actuador de conmutación Eltako F4HK14 4 canales RS485 montaje en carril DIN (MPN 30014010)

Eltako F4HK14 is a 4-channel switch actuator for DIN-rail mounting with RS485 communication (MPN 30014010). It controls four independent switching circuits and integrates into building automation systems via the RS485 bus. The compact rail-mounted design provides centralized switching for lighting, heating or motorized shading in residential and commercial installations.

Advantages

The device supports four separate channels allowing individual control of circuits. RS485 communication ensures reliable integration with common building automation controllers and buses. DIN-rail mounting offers space-efficient installation in electrical cabinets. Rated switching capacity is suitable for typical lighting and small motor loads within its specified limits.

Suitable for

Key specifications

How to use

Install the F4HK14 on a standard DIN rail inside an electrical distribution enclosure. Connect the RS485 bus to the designated terminals for integration with your automation controller, and wire each load to the corresponding channel output following local electrical codes. Configure the device in the building automation system according to the controller documentation to assign switching functions and communication parameters.

Recommendations

Verify load types and total current per channel against the manufacturer's limits before connecting inductive or high inrush loads such as motors or transformers. Ensure correct RS485 polarity and termination in longer bus runs and follow applicable wiring and safety regulations during installation.
