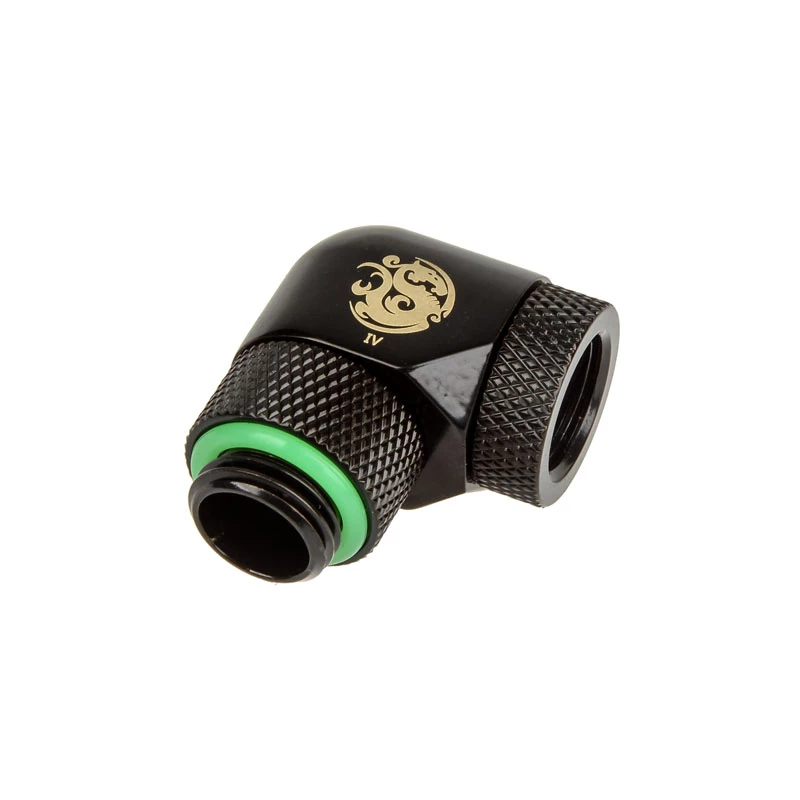

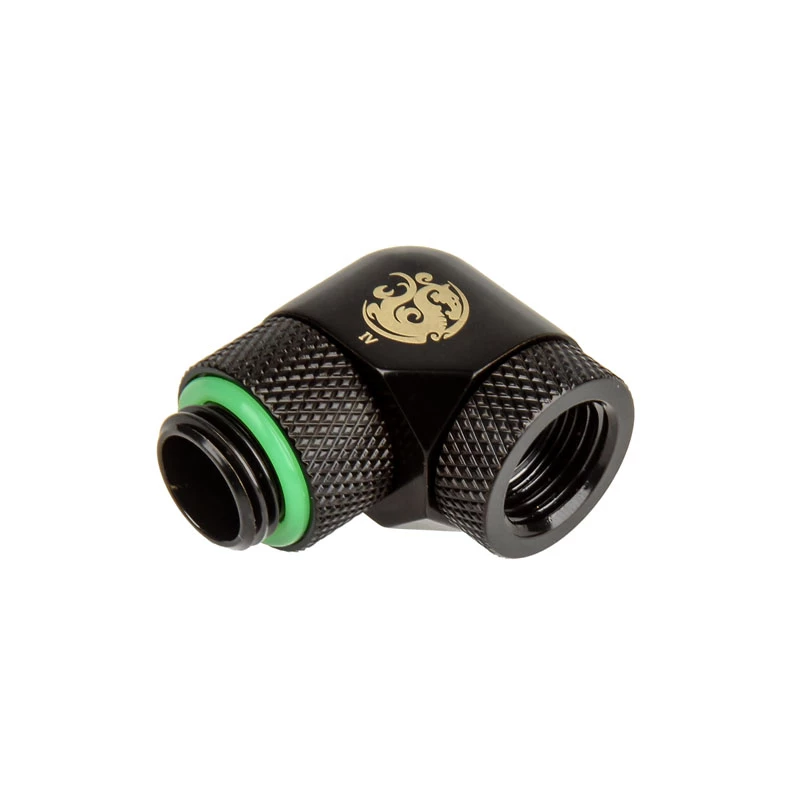

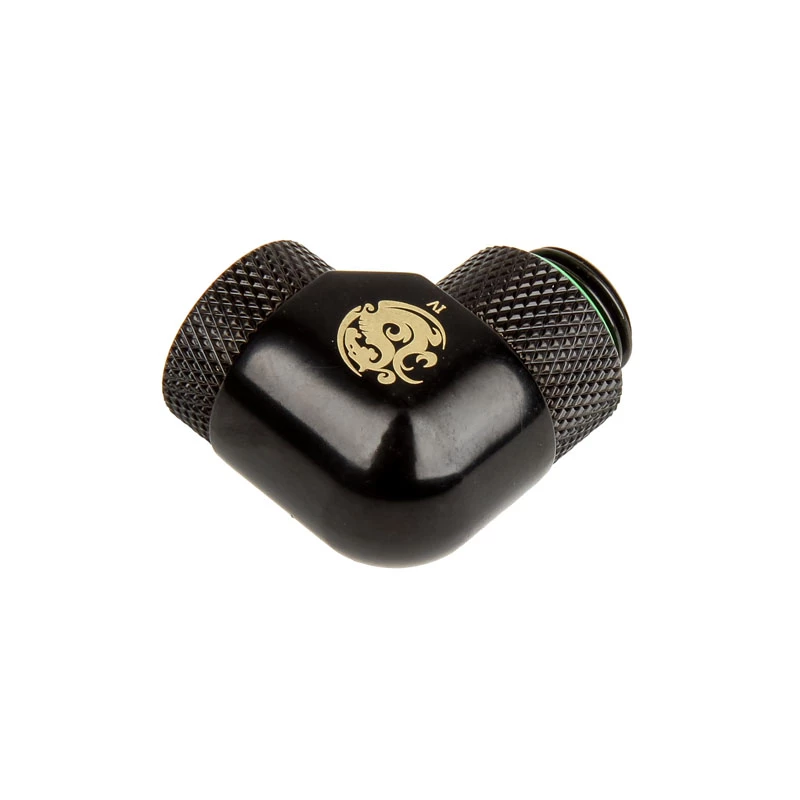

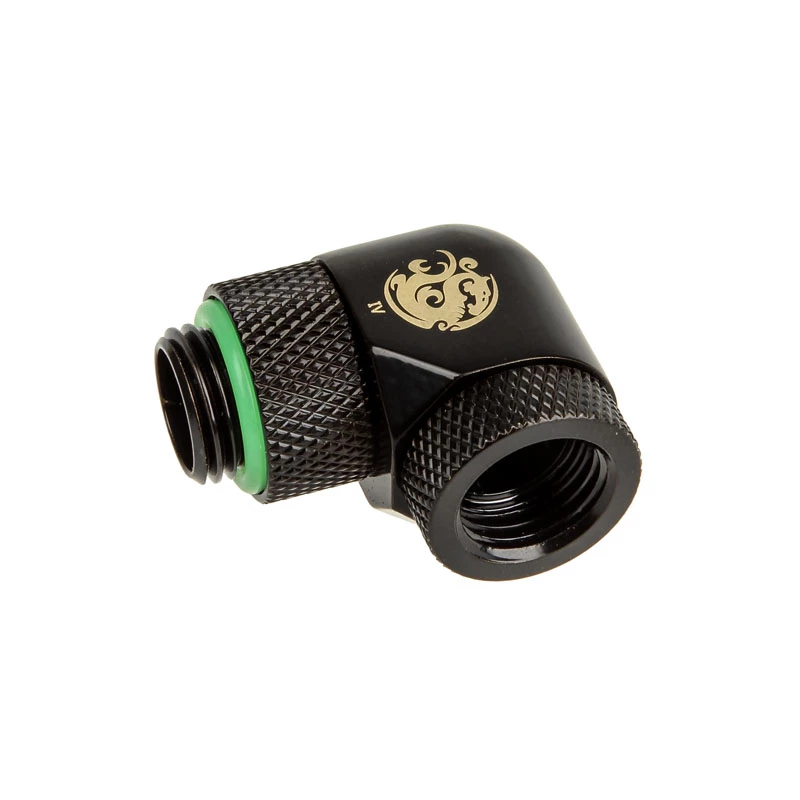

Adaptador 90° BitsPower BP-MB90R2LD G1/4 rosca macho a G1/4 rosca hembra, 2 conexiones giratorias orientables

BitsPower BP-MB90R2LD is a compact 90-degree G1/4" adapter engineered for liquid cooling and plumbing systems. It converts a G1/4" male thread to a G1/4" female thread while integrating two rotatable swivel joints to simplify alignment of hoses and fittings. The right-angle profile permits tight tubing routing in confined spaces and reduces stress on connections during installation and maintenance.

Advantages

The adapter's dual rotatable swivel joints allow flexible orientation without rotating connected components, which eases assembly and reduces risk of hose twisting. Its compact right-angle design conserves space and enables neat tubing runs in dense layouts. Metal construction and standardized G1/4" threads provide reliable sealing and compatibility with common liquid-cooling fittings and components.

Suitable for

• PC liquid cooling loops in small or compact cases
• Custom water-cooling radiator, pump, and reservoir connections
• Tight plumbing runs where a 90° turn is required
• Situations requiring frequent disconnection or reorientation of fittings

Key specifications

• Thread standard: G1/4" male to G1/4" female conversion
• Angle: 90-degree right-angle form factor
• Swivels: two rotatable swivel joints for adjustable orientation
• Application: designed for liquid cooling and low-pressure plumbing systems
• Size: compact footprint suitable for confined spaces

How to use

Thread the male G1/4" end into the corresponding female port and tighten by hand first, then secure with an appropriate wrench while avoiding over-tightening. Attach the mating G1/4" fitting to the female end and rotate the swivel joints as needed to align hoses or tubing. Verify that seals and O-rings on mating fittings are present and seated correctly before pressurizing the loop. After installation, perform a leak test at low pressure and inspect all connections for proper fit.

Recommendations

Use compatible G1/4" fittings and ensure O-rings or seal washers are in good condition. When routing tubing through confined areas, adjust the swivel joints to minimize bends and stress on the hose. Avoid excessive torque on the adapter to protect threads and seals.
