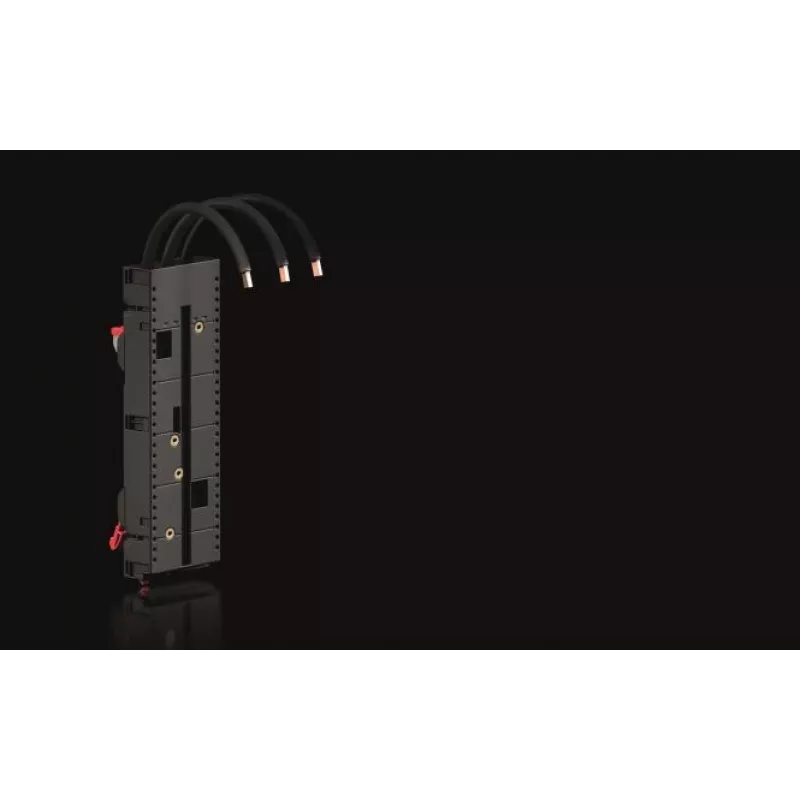

Adaptador de aparato Rittal 100 ARX 9360790AWG 2 B 72 mm (modelo 9360790)

The Rittal device adapter 100 ARX 9360790 is an installation accessory designed for mounting and connecting electrical and electronic components inside enclosures and control cabinets. With a 72 mm dimension, this adapter provides a standardized interface that helps align and secure devices during assembly, maintenance, and retrofit work. It is intended for use where precise positioning and reliable mechanical support are required for modules and instruments within a cabinet environment.

Advantages

The adapter offers a compact, consistent mounting interface that simplifies installation and reduces alignment errors. Constructed to fit common enclosure mounting systems, it ensures stable mechanical support and helps maintain tidy cable routing and component layout. Using this adapter streamlines assembly processes and supports repeatable positioning of devices, which can decrease installation time and potential for rework.

Suitable for

Key specifications

How to use

Position the adapter at the intended location inside the enclosure and secure it to the mounting rails or panel according to the enclosure manufacturer’s instructions. Align the device to the adapter’s 72 mm interface and fasten using suitable screws or clips compatible with the enclosure system. Route cables and connections so they are supported by the adapter and do not place strain on terminals. Verify mechanical stability and electrical clearances before supplying power to the assembled equipment.

Recommendations

Select fastening hardware that matches the enclosure material and load requirements. Inspect mounting points for damage and ensure compatible clearances for ventilation and cable access. Follow relevant electrical safety standards during installation and maintenance.
