Adaptador de cable de vídeo Vision TC 1MDPHDMI/BL

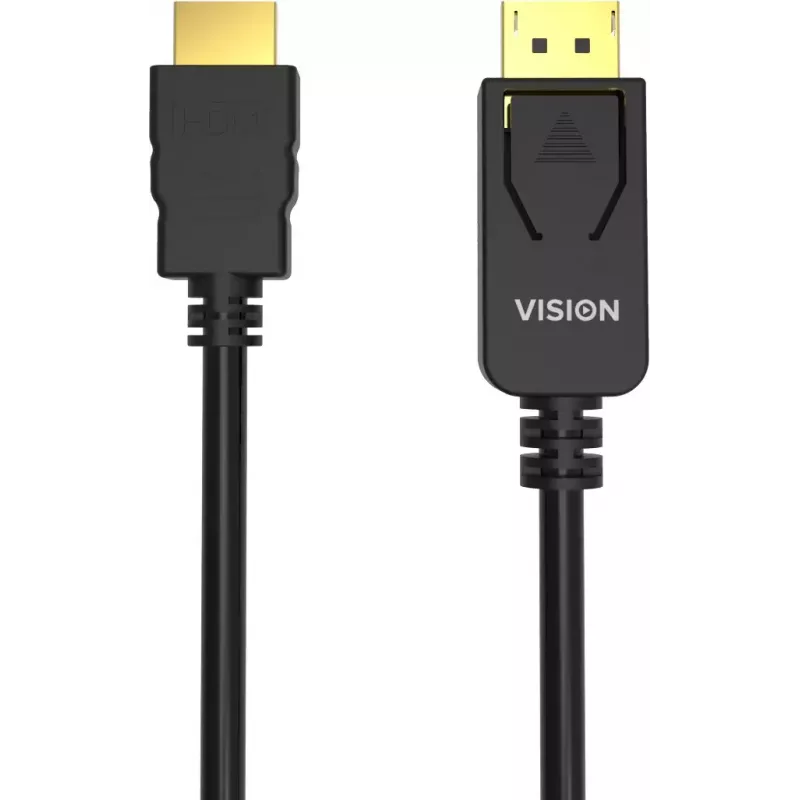

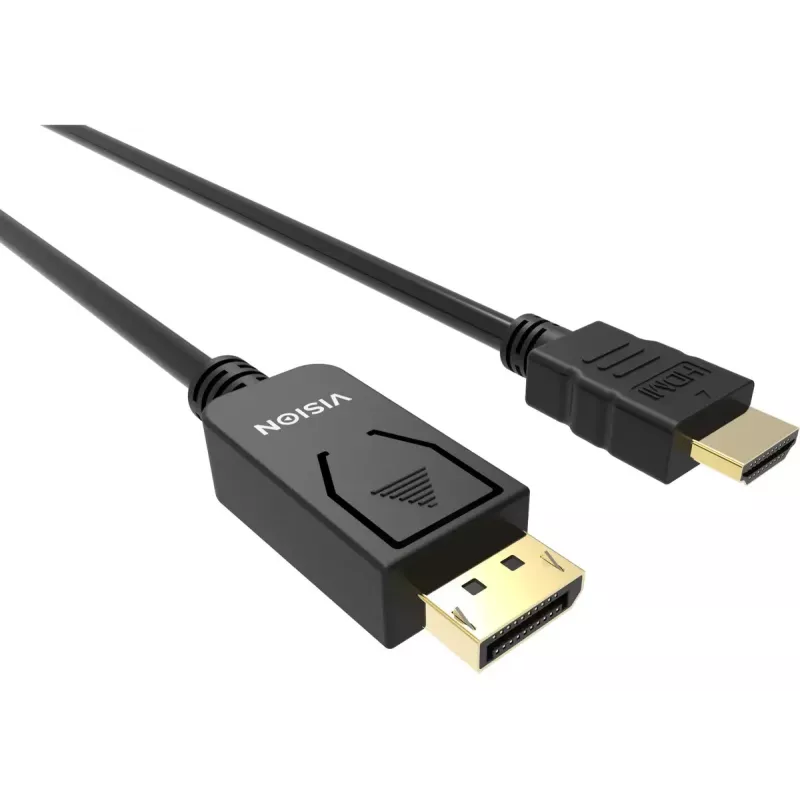

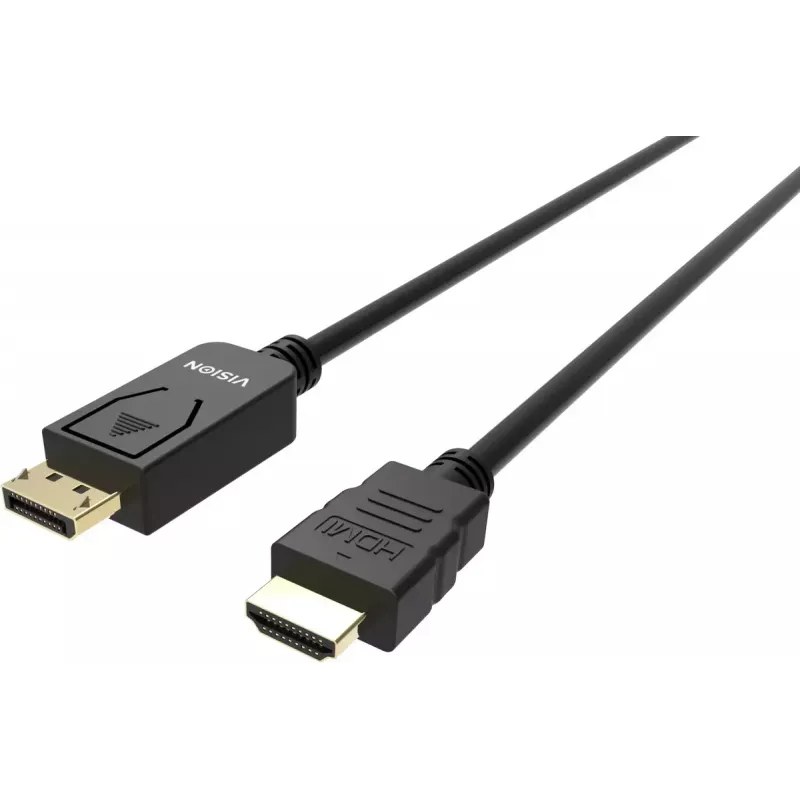

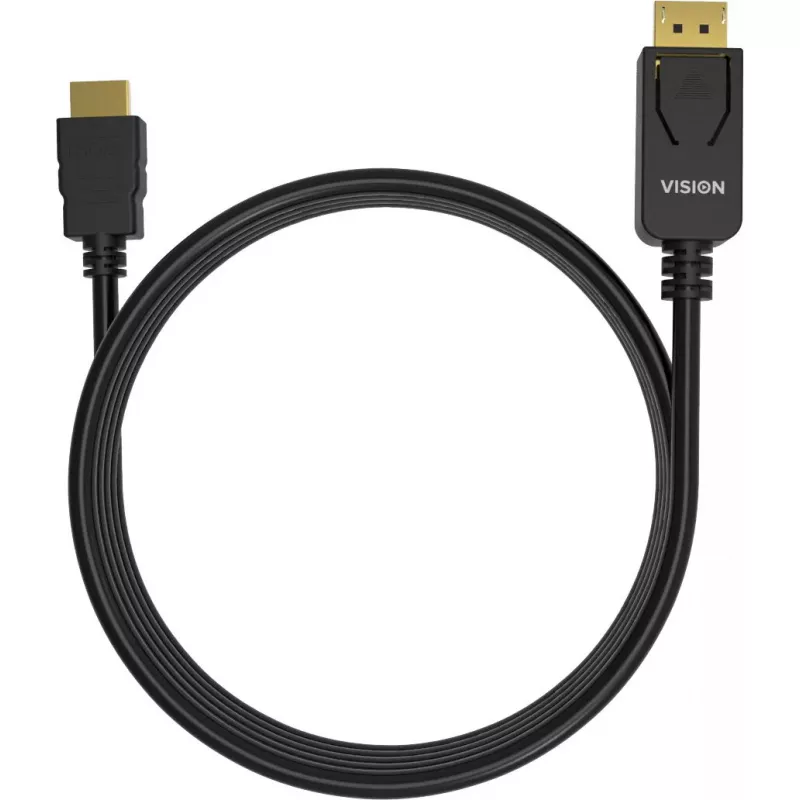

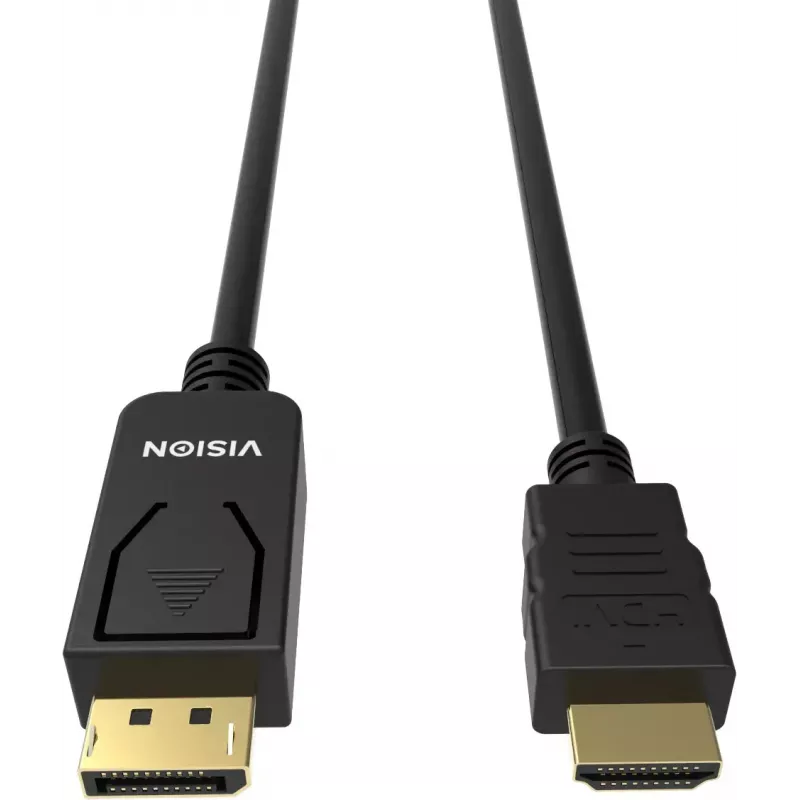

The Vision TC 1MDPHDMI/BL is a 1 m video cable adapter with a DisplayPort connector on one end and an HDMI Type A (Standard) connector on the other, designed to connect PCs or laptops with Dual-Mode DisplayPort (DP++) outputs to displays with HDMI inputs. The adapter has a compact 5.5 mm diameter and a black finish, providing straightforward signal transfer for video and audio between compatible devices.

Advantages

This Vision adapter enables direct connection from DP++ sources to HDMI-equipped monitors or TVs without requiring additional converters, supporting both video and audio transmission. Its 1 m length balances reach and minimal cable clutter, while the slim 5.5 mm construction makes it easy to route and store. The standardized DisplayPort and HDMI Type A connectors ensure wide compatibility with modern laptops, desktops, monitors and TVs.

Suitable for (tasks / use cases)

• Connecting laptops with Dual-Mode DisplayPort outputs to HDMI monitors or TVs
• Extending or mirroring a desktop display to an HDMI screen
• Temporary setups for presentations or meetings using HDMI projectors or screens

Key specifications

• Cable length: 1 m
• Connector 1: DisplayPort
• Connector 2: HDMI Type A (Standard)
• Colour: Black
• Diameter: 5.5 mm
• Brand: VISION, MPN: TC 1MDPHDMI/BL

How to use

Plug the DisplayPort end into the source device's DP++ output and the HDMI Type A end into the HDMI input of the monitor, TV or projector. After connecting, set the display mode on the source device (extend, duplicate or single display) via the operating system display settings. Ensure both devices are powered on; most DP++ outputs will automatically switch to HDMI signalling when an HDMI sink is detected.

Recommendations

Use this adapter where the source device explicitly supports Dual-Mode DisplayPort (DP++). For resolutions or refresh rates beyond typical HDMI/DisplayPort profiles, verify compatibility with your display and graphics adapter specifications.
