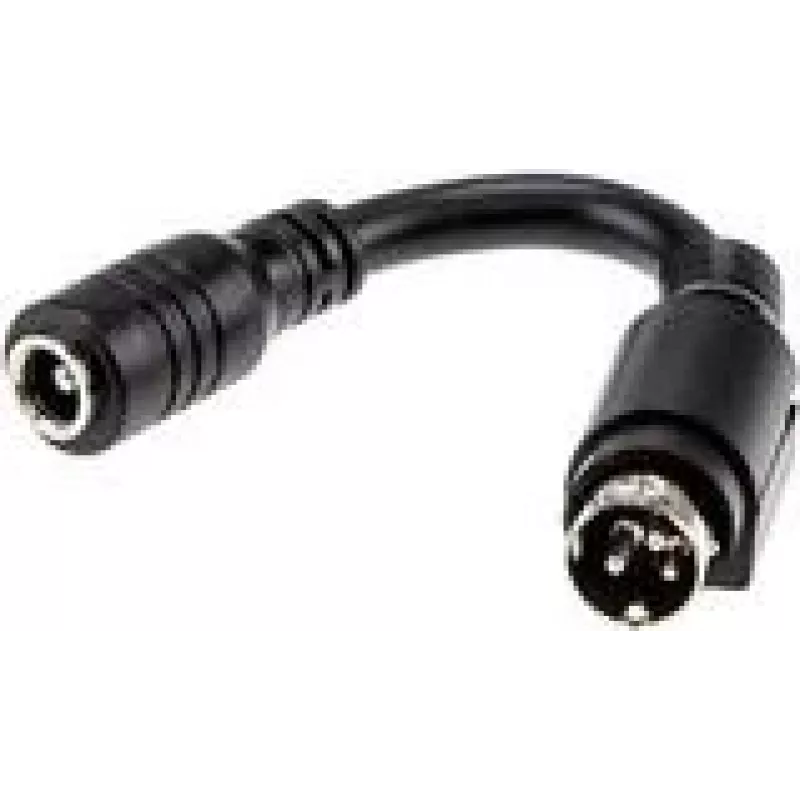

Adaptador de conector DC Mean Well DC-PLUG-P1J-R6B — conector DC de repuesto, modelo DC-PLUG-P1J-R6B

Mean Well DC-PLUG-P1J-R6B is a replacement DC power plug adapter intended for restoring or creating DC power connections compatible with Mean Well external power supplies and devices that accept this plug type. This dedicated connector accessory allows users to replace worn or damaged plugs, build custom cables, or set up test configurations where a reliable DC connection is required. The design focuses on compatibility and straightforward installation to maintain consistent power delivery.

Advantages

The replacement DC plug provides a direct-fit option for compatible Mean Well power adapters and devices, reducing downtime associated with damaged connectors. Its construction emphasizes stable electrical contact and predictable polarity to avoid miswiring. The adapter is compact and suitable for use in confined spaces, facilitating repairs, custom cable assemblies, and temporary test setups without requiring a full adapter replacement.

Suitable for

• Repairing damaged or worn DC plugs on external power supplies
• Building custom DC power cables for electronic devices
• Laboratory and bench test setups requiring removable connectors
• Replacing a connector in a stranded or solid-core cable assembly

Key specifications

• Connector type: DC barrel plug designed to match compatible Mean Well equipment
• Contact configuration: standard center-positive barrel arrangement suitable for many consumer and industrial devices
• Physical form factor: compact barrel-style plug for inline cable termination
• Material characteristics: metal contact surfaces with insulating sleeve for secure electrical connection
• Intended use: replacement or assembly of DC power leads for low-voltage DC devices

How to use

Trim and strip the cable ends to expose conductors, observing correct polarity for center-positive devices. Solder or crimp the positive and negative conductors to the corresponding plug contacts following the plug's assembly instructions, then insulate and secure the assembly with the plug housing. After assembly, verify continuity and polarity with a multimeter before connecting the plug to the power supply and device. Follow safe handling practices when working with live power sources and ensure the power supply is disconnected while assembling the plug.

Recommendations

Confirm the plug dimensions and polarity match the target device before installation. Use appropriate soldering tools and heat-shrink tubing or strain relief to protect the cable termination from mechanical stress. If unsure about wiring or compatibility, consult device documentation or a qualified technician to prevent damage to equipment.
