Adaptador de conexión Rittal SV 9342.300, adaptador de conexión, poliamida, medidas 129 x 246 mm, RAL 7035

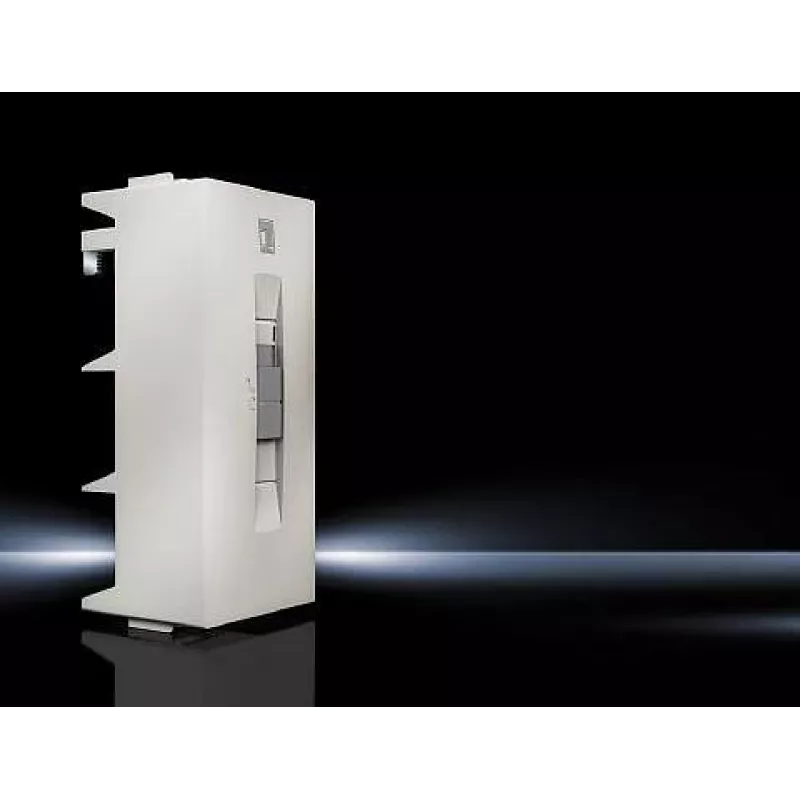

Rittal Anschlussadapter SV 9342.300 is a connection adapter made of polyamide in RAL 7035 designed to provide a reliable mechanical and electrical interface for busbar installations in enclosures and distribution panels. With external dimensions of 129 x 246 mm (width x height), the adapter is intended for use where compatible busbar systems are installed and where a standardized mounting and connection point is required.

Advantages

The polyamide construction offers electrical insulation and mechanical stability while keeping weight low. The neutral RAL 7035 colour integrates with standard enclosure interiors. Its dimensions and form factor simplify alignment with common busbar profiles and reduce installation time by providing a preformed interface for conductor routing and attachment. The adapter is designed to meet typical industrial distribution requirements where consistent fit and secure connections are important.

Suitable for

Key specifications

How to use

Position the adapter so that its interface aligns with the busbar profile inside the enclosure. Secure the adapter to the enclosure or mounting plate following the mechanical fastening points provided by the cabinet and according to the busbar manufacturer's instructions. Insert and fasten conductors or busbar elements into the adapter's connection points, ensuring proper torque and contact as specified by the system requirements. Verify electrical continuity and mechanical stability before re-energising the installation.

Recommendations

Use the adapter only with compatible busbar systems and within the mechanical and electrical limits defined by the overall distribution design. Follow applicable safety standards, wiring practices, and torque specifications during installation. Inspect connections and mounting after initial energisation and during scheduled maintenance.
