Adaptador de empotrar metálico EXSYS EX-49192 USB 2.0 Type-B hembra a hembra

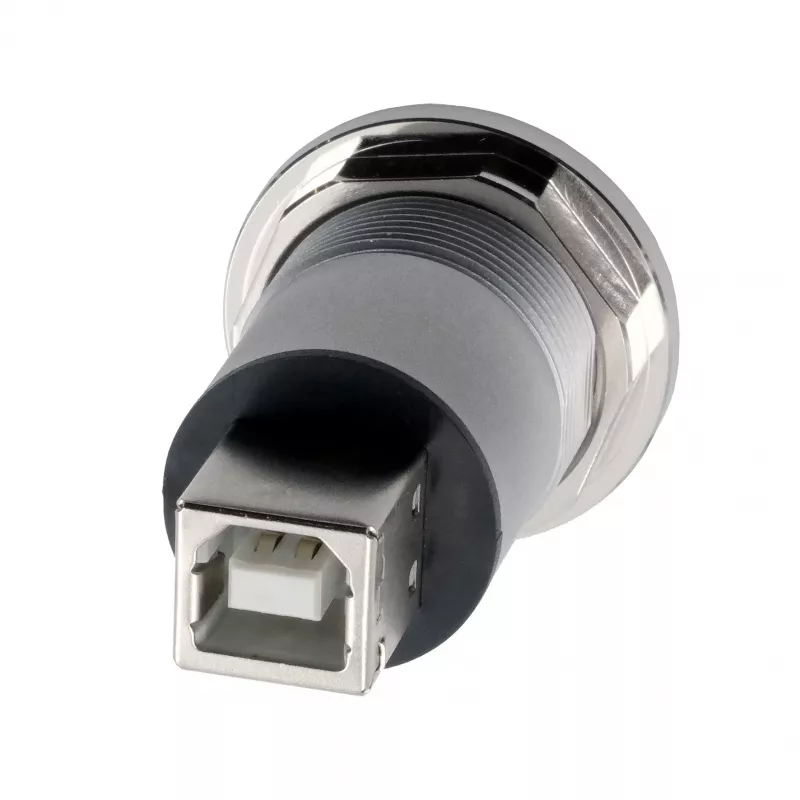

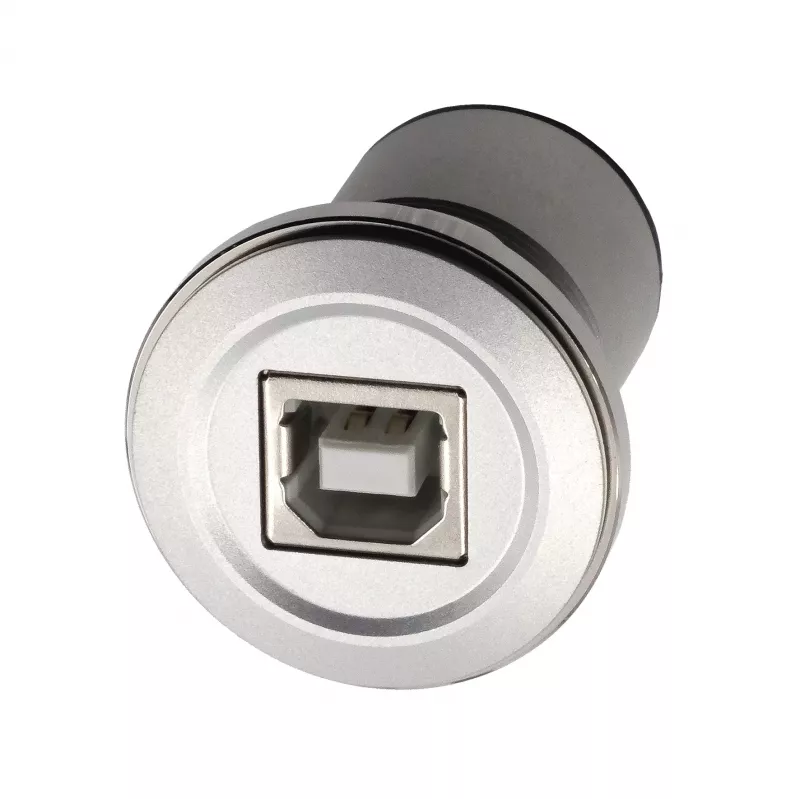

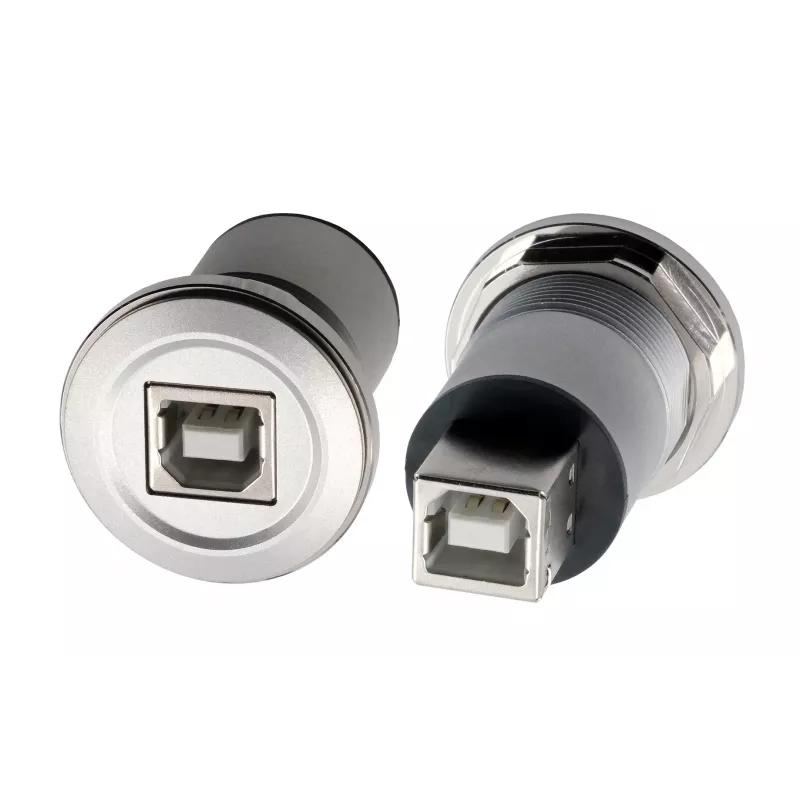

When you need to extend a USB connection through a panel or chassis, a reliable bulkhead adapter is essential. The EXSYS EX-49192 provides a robust metal panel-mount solution with two USB Type-B female ports, enabling a clean and secure USB 2.0 pass-through.

Who is it for

This adapter is ideal for system integrators, industrial PC builders, and electronics enthusiasts who require a durable USB 2.0 connection on an enclosure or panel. It suits applications where a fixed USB port is needed on a machine, kiosk, or custom device.

Main features

• Metal housing for durability and shielding
• USB 2.0 High-Speed data transfer up to 480 Mbps
• Two USB Type-B female connectors for panel mounting
• Compact 20 x 20 mm panel cutout
• Fully shielded to reduce electromagnetic interference

Specifications

• Connector 1: USB Type-B Female
• Connector 2: USB Type-B Female
• USB Standard: USB 2.0
• Data Transfer Rate: Up to 480 Mbps
• Mounting Type: Panel Mount
• Housing Material: Metal
• Colour: Silver
• Panel Cutout Dimensions: 20 x 20 mm
• Shielding: Fully Shielded
• Connector Plating: Nickel
• Insulator Material: PBT
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -20°C to 80°C
• Backward Compatibility: USB 1.1, USB 1.0

Tips

Ensure your panel cutout matches the 20 x 20 mm dimensions and use M3 screws (not included) for secure mounting. For best performance, pair with high-quality USB 2.0 cables.
