Adaptador de profundidad para guías Triton RAC-DR-X22-X1 19" 1U, 2 unidades, 10cm

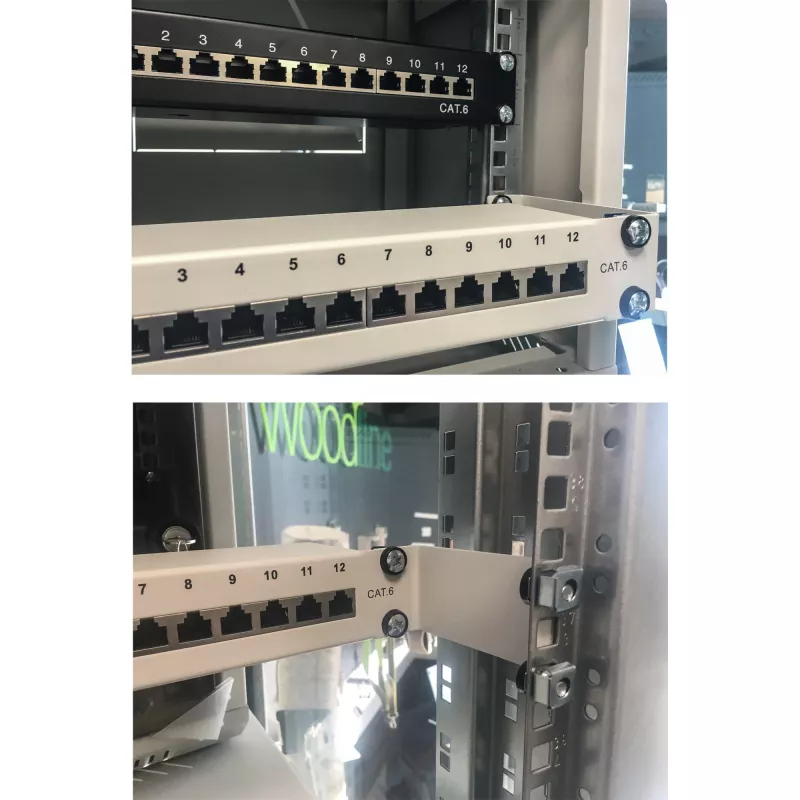

Rack-mounting depth mismatches can leave your valuable equipment unsupported or impossible to install in standard 19-inch enclosures. The Triton RAC-DR-X22-X1 Rail Depth Adapter solves this by extending your rack's mounting depth by 100 mm, allowing you to securely fit deeper devices into shallow cabinets or adjust positioning for better cable management and airflow.

Who is it for

IT professionals, system integrators, and data center technicians who need to mount servers, network gear, or other 19-inch equipment into racks where the original rails or device depth don't align with the available space. This adapter pair is ideal for both new installations and retrofitting existing cabinets.

Main features

• Extends rack mounting depth by 100 mm (10 cm) per side
• Compatible with all standard 19-inch racks and cabinets
• Occupies 1U of vertical rack space
• Sold as a pair (2 pieces) for left and right mounting posts
• Durable steel construction with black powder-coated finish
• Square mounting holes match standard rack cage nuts
• Can be installed on front or rear rack posts for flexible positioning

Specifications

• Product type: Rail depth adapter
• Rack compatibility: 19-inch
• Rack unit height: 1U
• Depth extension: 100 mm
• Quantity: 2 pieces (pair)
• Material: Steel
• Color: Black
• Mounting type: Rack mount
• Application: Server racks, data cabinets
• Mounting hole type: Square
• Finish: Powder coated

Tips

When installing, first attach the adapters to the rack posts using appropriate cage nuts and screws, then mount your equipment rails onto the adapters. Ensure both adapters are aligned at the same height to avoid uneven stress on the equipment. The powder-coated finish resists scratches and corrosion, maintaining a clean look in your rack.
