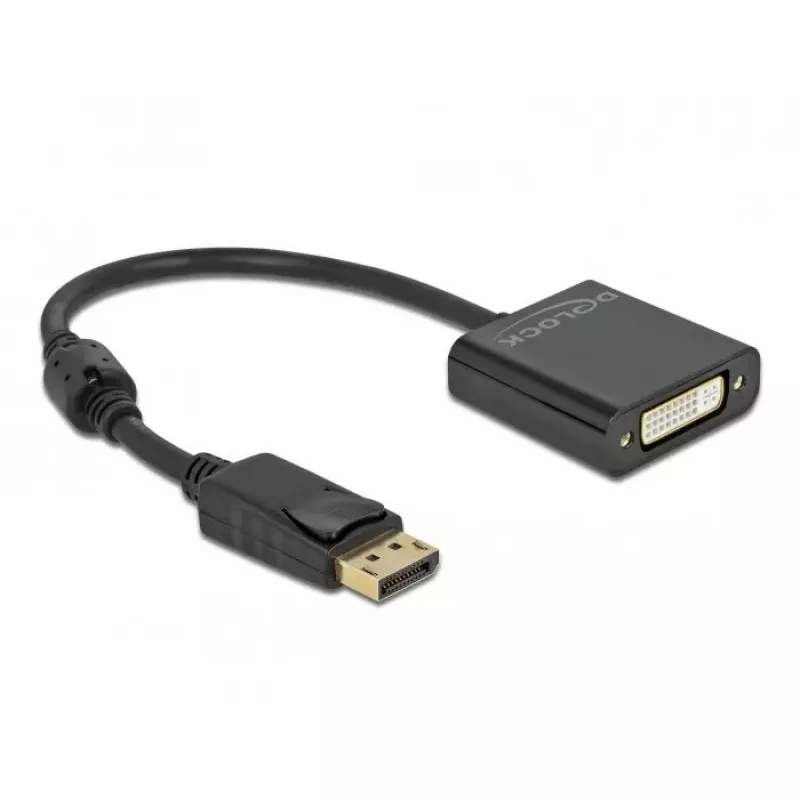

Adaptador DisplayPort 1.2 conector macho a DVI conector hembra 4K activo DeLOCK 63482

This DeLOCK adapter allows you to connect a DVI monitor to a system with a free DisplayPort. The active DisplayPort 1.2 male to DVI female converter supports resolutions up to 4K Ultra HD at 30 Hz and is backward compatible with Full HD 1080p. With a compact cable length of 0.2 m and a black housing, the adapter provides an active conversion compatible with graphics cards that do not output DP++ signals.

Advantages

The adapter performs active signal conversion from DisplayPort to DVI, enabling use with graphics cards lacking DP++ support. It supports up to 4K@30 Hz while remaining compatible with 1080p displays. Its short 0.2 m cable and standard DVI female connector make it easy to install and integrate with existing DVI monitors.

Suitable for

• Connecting a DisplayPort output from a PC or laptop to a DVI monitor
• Using older DVI displays with modern DisplayPort graphics cards
• Setups where the graphics card does not support DP++ (requires an active adapter)

Key specifications

• Brand: DELOCK
• Model / MPN: 63482
• EAN: 4043619634828
• Connector 1: DisplayPort (male)
• Connector 2: DVI (female)
• Standard: DisplayPort 1.2
• Maximum resolution: 4K Ultra HD (3840 × 2160) at 30 Hz; backward compatible with 1080p
• Cable length: 0.2 m
• Product colour: Black

How to use

Insert the DisplayPort male connector into a free DisplayPort socket on the source device (PC, laptop or graphics card). Connect the DVI cable from your monitor to the adapter's DVI female connector. Power on both devices and select the correct input on the monitor. The adapter performs active conversion automatically; no driver installation is required.

Recommendations

For optimal performance, use a good-quality DVI cable and ensure the source device supports DisplayPort 1.2. When targeting 4K@30 Hz, verify that the monitor and graphics card settings are set to the correct resolution and refresh rate.
