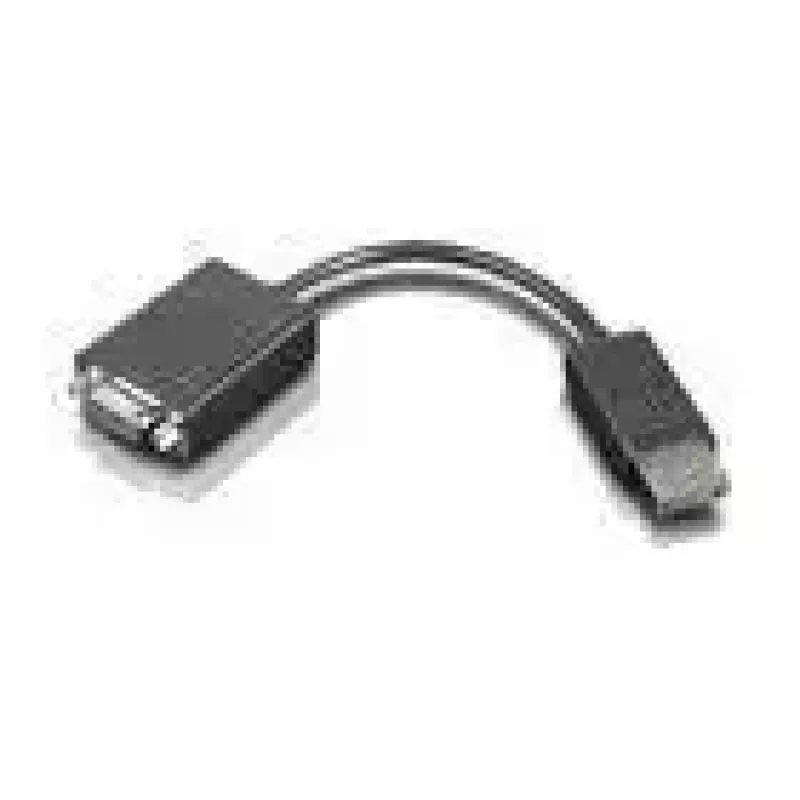

Adaptador DisplayPort a VGA Lenovo 45J9523, convertidor pasivo para resolución 1920x1080

The Lenovo DisplayPort to VGA adapter 45J9523 converts a DisplayPort video output into an analog VGA signal, supporting up to 1920x1080 resolution. This passive converter is intended to connect modern computers and laptops with DisplayPort outputs to older monitors, projectors or other VGA-equipped displays. The compact, single-cable design offers plug-and-play operation without additional drivers, providing a practical solution for meetings, classroom setups and legacy display use.

Advantages

This adapter provides a straightforward way to bridge digital DisplayPort sources and analog VGA displays while maintaining Full HD resolution. Its passive design requires no external power or software, and the small form factor makes it easy to carry with a laptop or include in an IT kit. The connector fittings are engineered to offer a secure contact and reliable signal transmission for presentations and desktop extensions.

Suitable for

• Connecting a laptop or desktop DisplayPort output to an older VGA monitor
• Using projectors that accept VGA input during presentations or lectures
• Setting up secondary or extended displays for productivity or testing

Key specifications

• Input: DisplayPort (male)
• Output: VGA (female)
• Maximum supported resolution: 1920 x 1080 at 60 Hz
• Conversion type: passive digital-to-analog adapter
• Form factor: compact inline adapter with short cable
• Compatibility: works with DisplayPort-equipped PCs and laptops that support analog VGA signals via the port

How to use

Insert the DisplayPort end of the adapter into the DisplayPort output on the computer until it is seated securely. Connect a VGA cable from the adapter's VGA socket to the VGA input on the monitor or projector. Power on the computer and the display; the system should detect the external screen automatically. Adjust display settings such as resolution and screen arrangement in the operating system display control panel if needed to achieve the desired layout and clarity at 1920x1080.

Recommendations

Use a high-quality VGA cable for best picture quality when operating at higher resolutions. For extended desktop use at Full HD, verify that the source device's DisplayPort implementation supports analog VGA output; if not, a powered active converter may be required. Avoid excessive cable bending near the adapter to maintain connector integrity.
