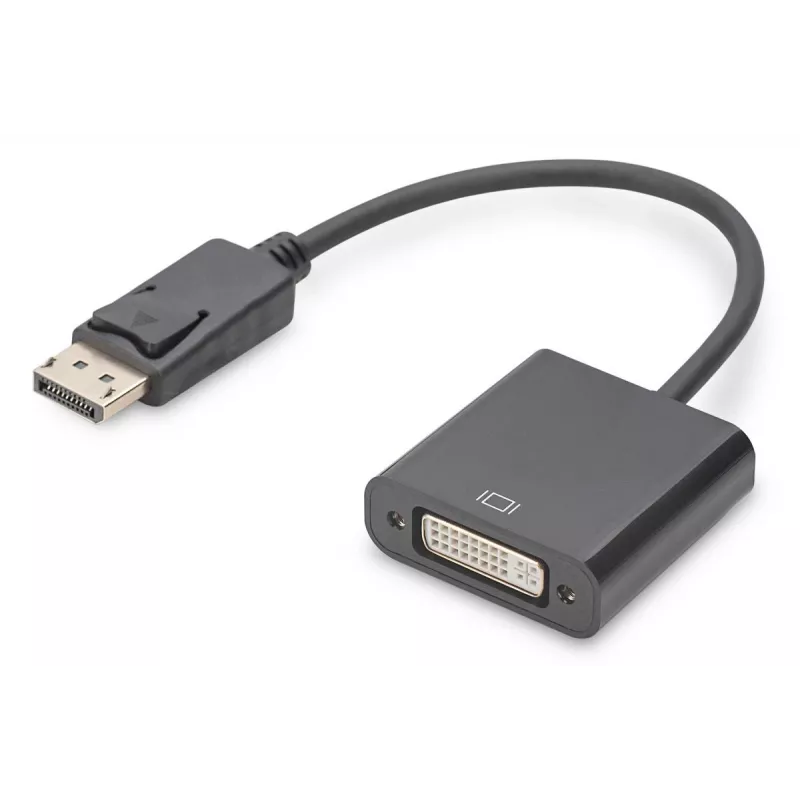

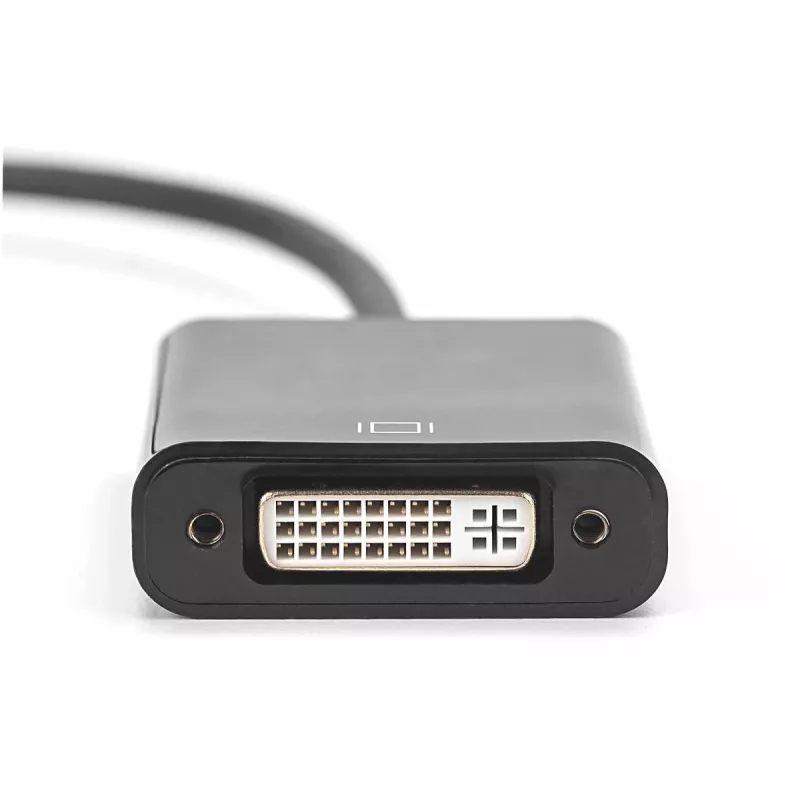

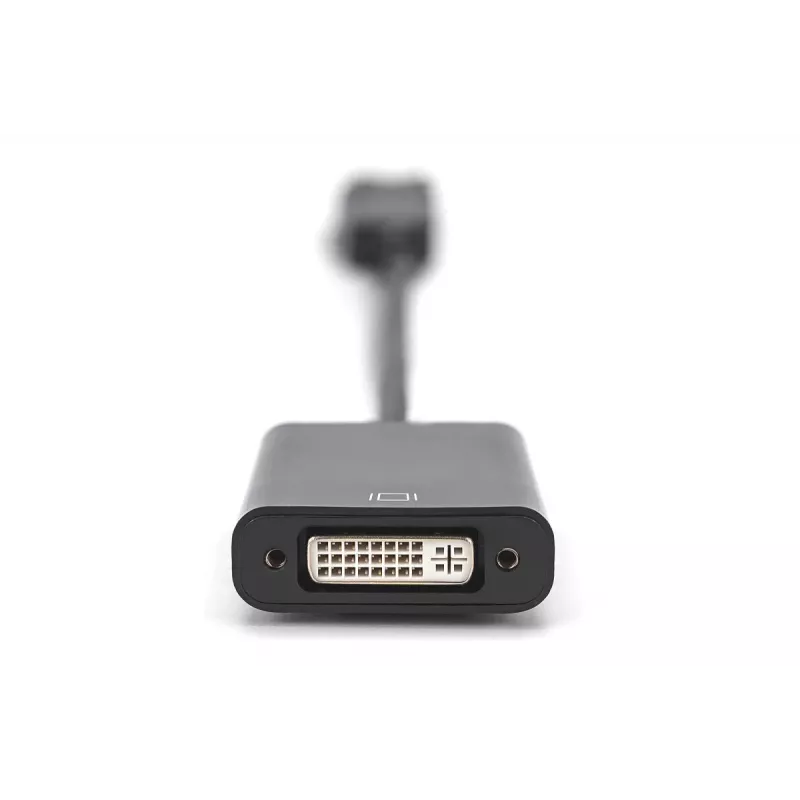

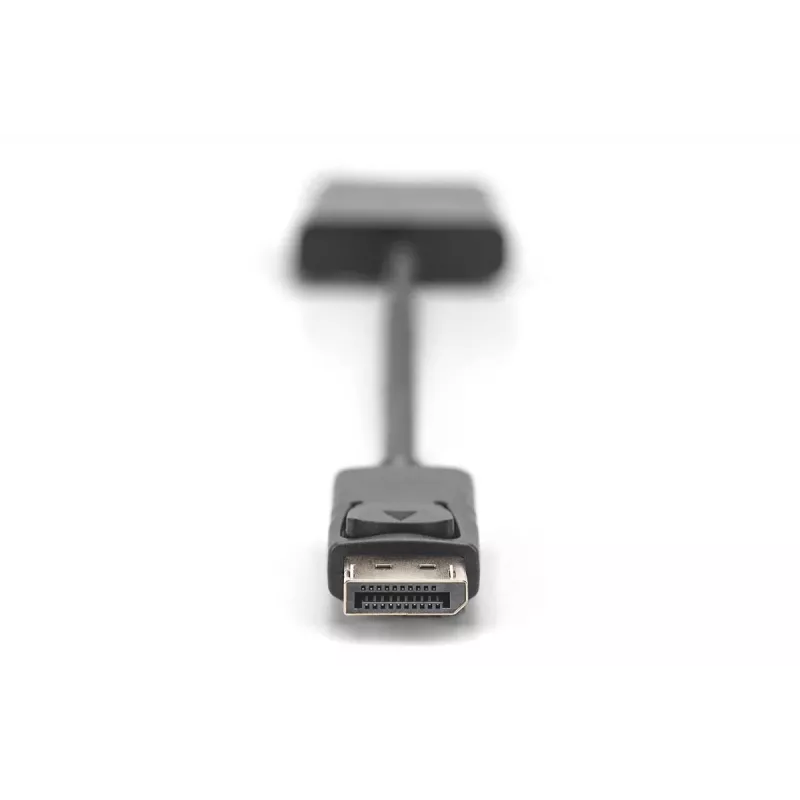

Adaptador DisplayPort activo Digitus DB-340414-001-S

Converts DisplayPort signals to DVI signals. The active DIGITUS DisplayPort to DVI adapter supports Full HD (1080p) at up to 60 Hz and implements HDCP 1.3 and 24‑bit Deep Color. A built‑in preamplifier and double shielding ensure stable signal transmission. The DVI connector uses the full 24+5 pin configuration for broad compatibility with DVI 1.0 displays.

Advantages

The adapter provides reliable conversion from DisplayPort to DVI with integrated signal amplification and shielding to reduce interference. It supports HDCP 1.3 for protected content and 24‑bit Deep Color for improved color depth. Full utilization of the DVI 24+5 pin layout ensures compatibility with standard DVI 1.0 devices.

Key specifications

• Connector: DisplayPort plug to DVI (DVI‑I 24+5)
• Supported resolution: Full HD 1080p at 60 Hz
• Data rate: up to 2.25 Gbps
• HDCP: 1.3 compatible
• Color depth: Deep Color 24‑bit
• Compatibility: DVI 1.0
• Features: built‑in preamplifier, double shielding

How to use

Insert the DisplayPort plug into the source device’s DisplayPort output and connect the DVI cable from the adapter to the DVI input on the display. Ensure both devices are powered on and set the display to the correct input. For optimal results, use a quality DVI cable and verify the source device output is configured for 1080p/60 Hz if required.

Recommendations

Use the adapter with devices that support DisplayPort output and DVI input. If you encounter resolution or color issues, check cable connections and set the source device to a compatible output resolution and refresh rate. For protected content, ensure connected devices support HDCP 1.3.
