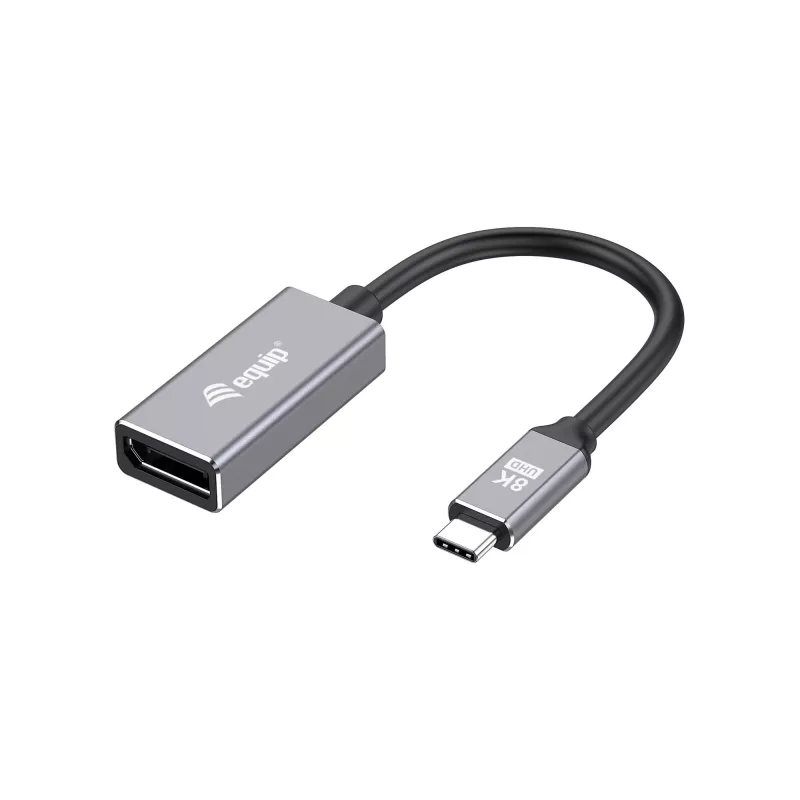

Adaptador Equip USB-C a DisplayPort 1.4 8K 30Hz 0,15 m

The Equip USB-C to DisplayPort 1.4 Adapter 8K 30Hz 0.15m connects USB-C devices such as laptops or smartphones to DisplayPort 1.4 monitors or TVs. It supports video and audio transmission, HDCP 2.2 content protection and a maximum bandwidth of 32.4 Gbps, enabling up to 8K Ultra HD (7680 x 4320) at 30 Hz. The compact adapter with a 0.15 m cable is lightweight and suitable for portable setups.

Advantages

This USB-C to DisplayPort 1.4 adapter delivers high-resolution output up to 8K at 30 Hz and supports audio pass-through and HDCP 2.2 for protected content. The adapter provides a reliable 32.4 Gbps bandwidth for demanding video tasks, comes in a compact, lightweight design, and uses standard USB Type-C and DisplayPort connectors for broad compatibility with modern devices and displays.

Suitable for

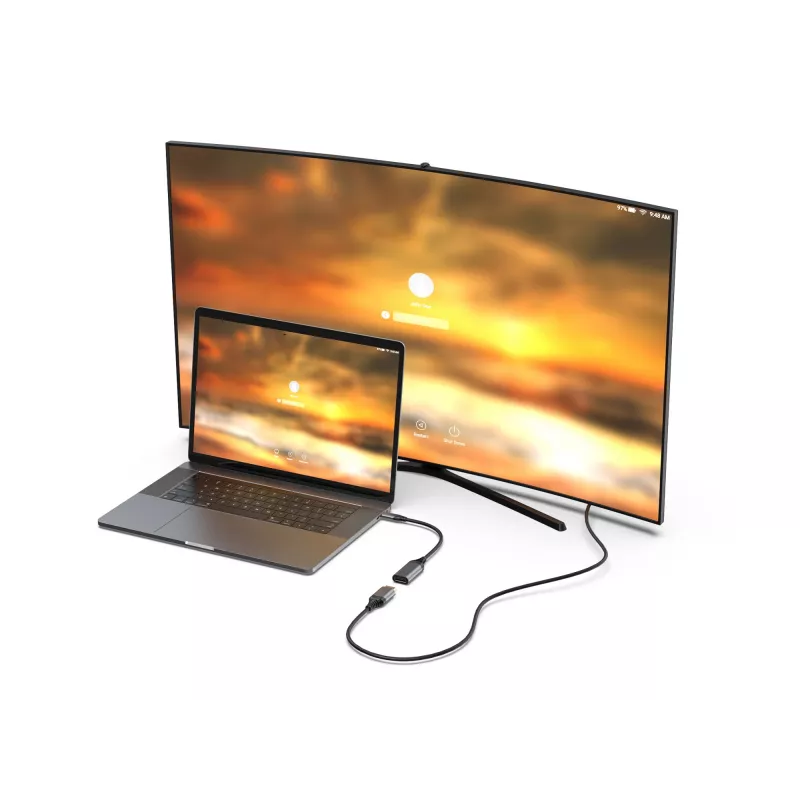

• Connecting laptops or smartphones with USB-C to DisplayPort monitors or TVs
• Video editing and content creation that require high-resolution output
• Viewing Ultra HD content and presentations on DisplayPort displays
• Gaming at high resolutions where 8K/30Hz is supported

Key specifications

• Model: Equip USB-C to DisplayPort 1.4 Adapter 8K 30Hz 0.15m (MPN: 133493)

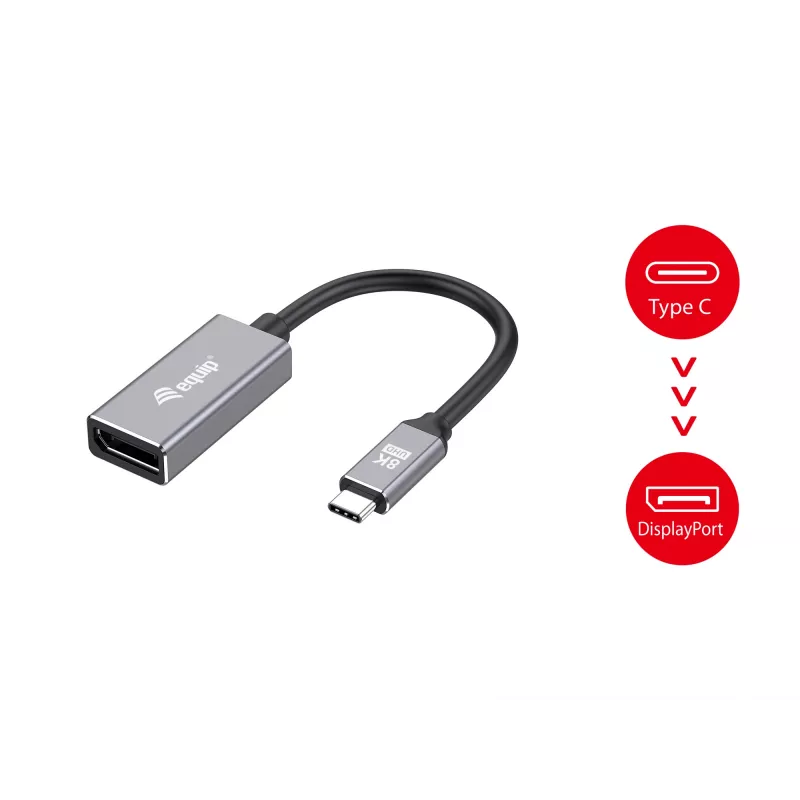

• Connectors: USB Type-C to DisplayPort
• Maximum resolution: Up to 8K Ultra HD (7680 x 4320) at 30 Hz
• Maximum bandwidth: 32.4 Gbps
• Content protection: HDCP 2.2
• Cable length: 0.15 m
• Weight: 0.03 kg
• Colour: Black, Grey
• Standards/compliance: RoHS, CE

How to use

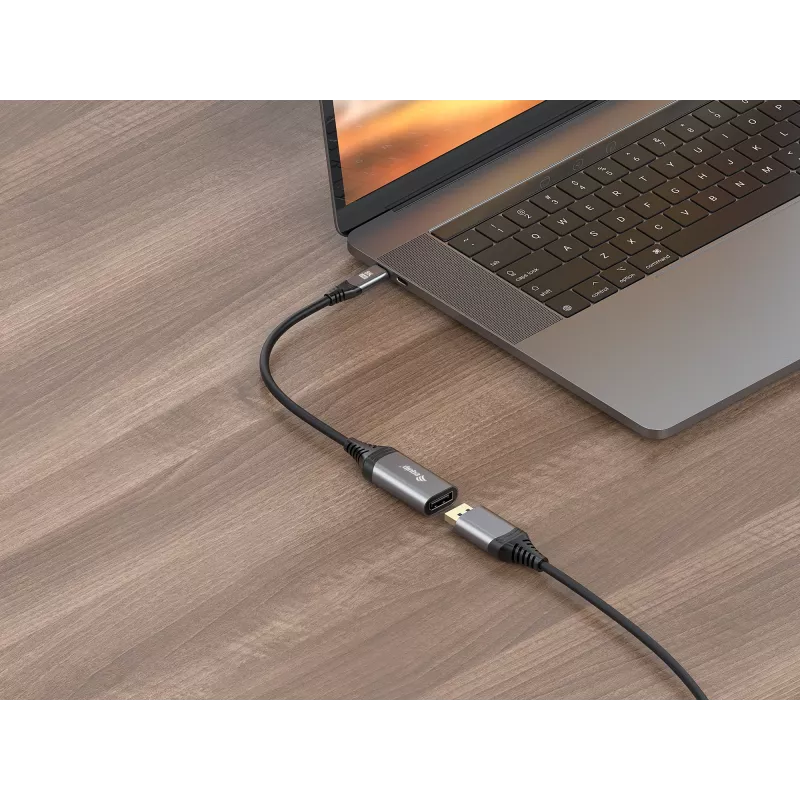

Connect the USB Type-C plug of the adapter to the USB-C output of your laptop, tablet or smartphone, then connect the DisplayPort plug to the DisplayPort input on your monitor or TV. Set the display resolution and refresh rate in your device’s graphics settings to the desired output (up to 8K/30Hz where supported). Ensure the source device supports DisplayPort Alt Mode over USB-C for video output.

Recommendations

For best results, use with devices and displays that explicitly support DisplayPort 1.4 and 8K output. Verify cable routing and connectors are fully seated, and update graphics drivers on the source device if the desired resolution or refresh rate is not available.
