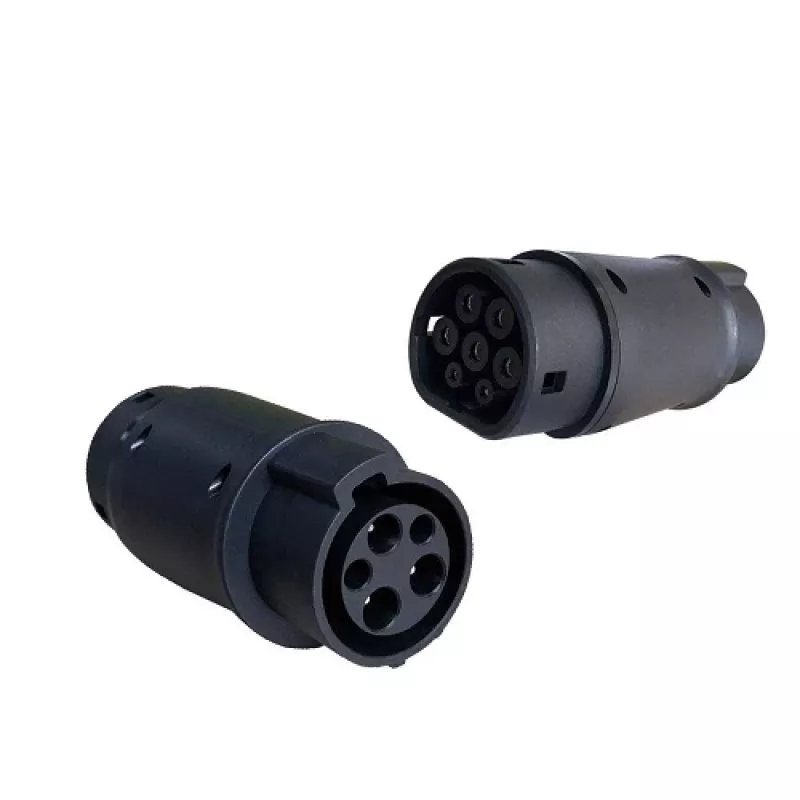

Adaptador EV Duosida Type 2 (hembra) - Type 1 (macho)

The DUOSIDA EV Adapter Type 2 (Female) to Type 1 (Male) enables seamless charging of electric vehicles equipped with a Type 1 inlet using Type 2 charging stations. Designed for reliable performance, this adapter supports a maximum charging current of 32A at 240V AC and is built to withstand harsh conditions with an IP55 rating and an operating temperature range of -30°C to +50°C. Its durable thermoplastic construction ensures long-lasting use, while CE and TUV certifications guarantee safety and compliance.

Key features

• Connector 1: IEC 62196 Type 2 (Female, 7-pin, Mennekes standard)
• Connector 2: SAE J1772 Type 1 (Male, 5-pin, Yazaki standard)
• Maximum charging current: 32A at 240V AC
• Ingress protection rating: IP55
• Operating temperature range: -30°C to +50°C
• Material: Thermoplastic
• Certifications: CE, TUV
