Adaptador G1/4 rosca macho a G1/4 rosca hembra, BitsPower Touchaqua TA-F60-GS

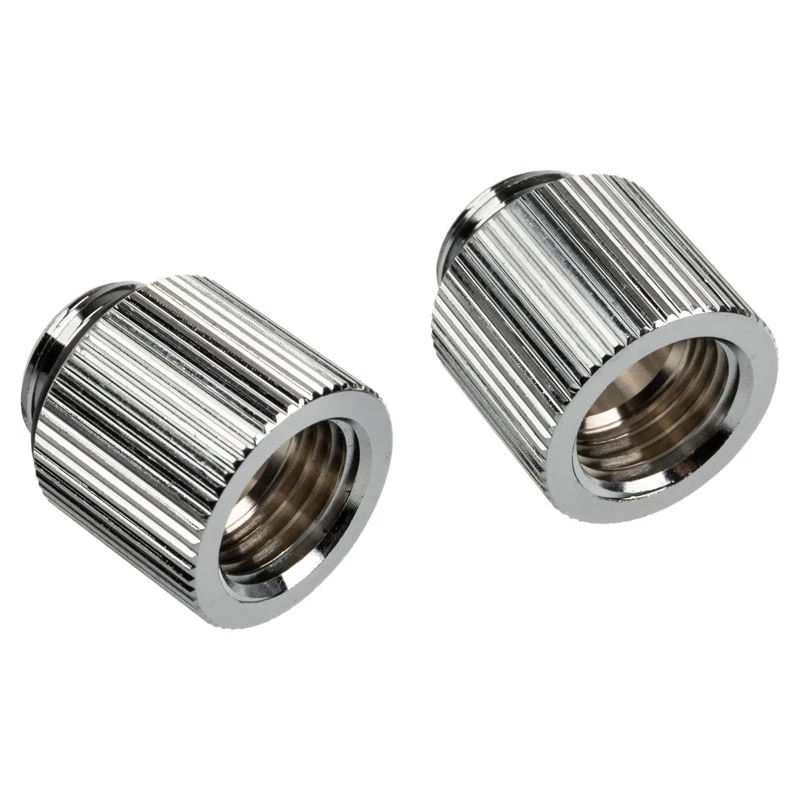

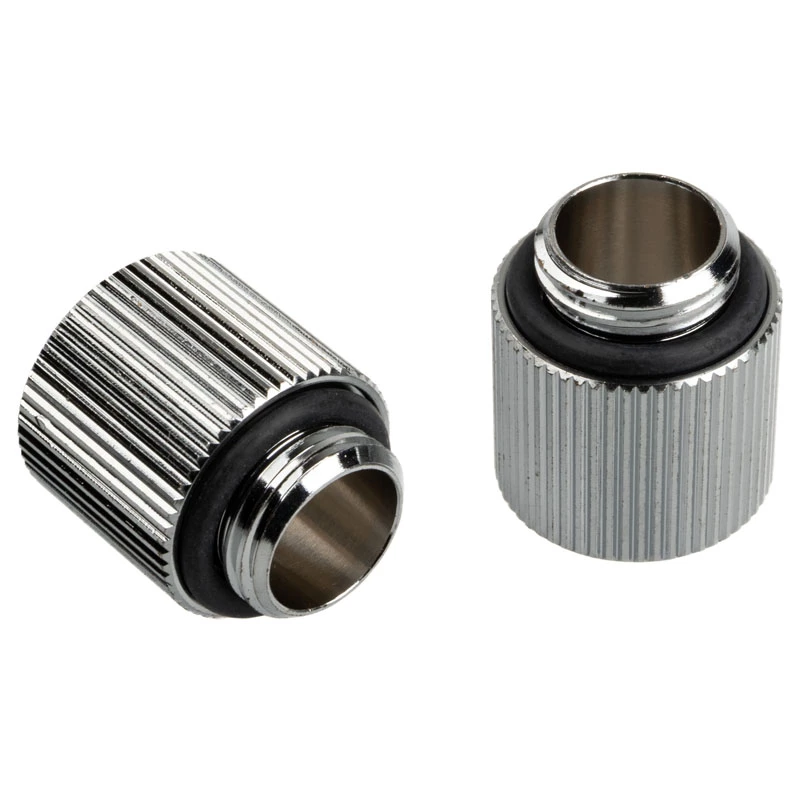

BitsPower Touchaqua TA-F60-GS is a straight G1/4" male-to-female adapter designed for PC liquid cooling systems. It converts a G1/4" male (AG) thread to a G1/4" female (IG) thread, allowing components with differing thread genders to be joined directly. The compact, straight form factor makes this adapter suitable for inline connections and installations where space is limited or where a direct, low-profile connection is required.

Advantages

The adapter provides a reliable mechanical and leak-resistant connection between two G1/4" fittings without adding bulk. Its straight design minimizes flow disruption and keeps the coolant path direct. Because it is purpose-built for water-cooling loops, it offers compatibility with standard G1/4" threads used on radiators, pumps, reservoirs and water blocks, enabling straightforward integration into existing systems.

Suitable for

• Connecting a G1/4" male-threaded component to a G1/4" female-threaded component
• Inline connections in compact or tight routing situations
• Adapting fittings between pumps, reservoirs, radiators and water blocks

Key specifications

• Thread type: G1/4" male to G1/4" female
• Design: Straight adapter for inline connection
• Compatibility: Standard PC liquid-cooling G1/4" fittings
• Application area: Water-cooling loops for desktop PCs

How to use

Ensure both mating threads are clean and free of debris before installation. Hand-start the G1/4" male thread into the female thread to avoid cross-threading, then tighten to a snug fit; if desired, use an appropriate wrench to apply final torque but avoid overtightening. Verify alignment so the straight adapter does not impose stress on tubing or other fittings. After installation, pressurize or fill the loop and perform a leak test before normal operation.

Recommendations

Use thread sealant or PTFE tape only if necessary for additional leak protection and compatible with your cooling fluid and fittings. Periodically check the connection during routine maintenance to ensure no loosening or leakage has occurred.
